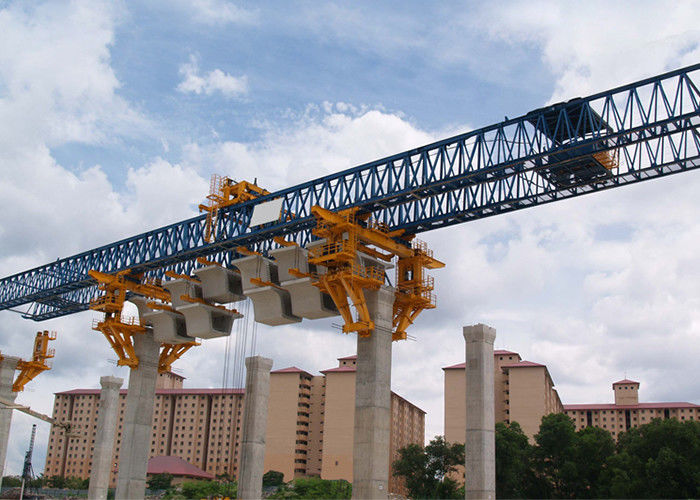

Rust Prevention Launcher Crane 200 Ton For Highway Bridge Erection

Rust Prevention Launcher Crane 200 Ton For Highway Bridge Erection
Rust Prevention Launcher Crane 200 Ton For Highway Bridge Erection
Rust Prevention Launcher Crane 200 Ton For Highway Bridge Erection Rust Prevention Launcher Crane 200 Ton For Highway Bridge Erection Rust Prevention Launcher Crane 200 Ton For Highway Bridge Erection Rust Prevention Launcher Crane 200 Ton For Highway Bridge Erection Rust Prevention Launcher Crane 200 Ton For Highway Bridge Erection

Large Image :  Rust Prevention Launcher Crane 200 Ton For Highway Bridge Erection

Product Details:
Place of Origin: china
Brand Name: Dowellcrane
Certification: CE ISO SGS
Model Number: JQJ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10000-70000USD/Set
Packaging Details: wooden case for electric parts, other naked
Delivery Time: 60days
Supply Ability: 500Sets/year

Rust Prevention Launcher Crane 200 Ton For Highway Bridge Erection

Description
Span: 20-50M Max Lifting Height: 10M
Main Electrical Parts: Main Electrical Parts Certification: CE ISO SGS
Lifting Speed: 0-1m/min Trolley Cross Travel Speed: 4.5m/min
Crane Travel Speed: 5m/min After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

launching crane

,

industrial crane

200ton Bridge erection highway girder preventing rust launching crane





Description:



highway bridge launcher crane made in china applies to highway, railway bridges to the construction site of bridge construction, its main function is to mention prefabricated good beam slice and delivered on prefabricated good piers.it and general meaning cranes have very big different, high safety requirements.

The capacity:60-200ton

The span : 20-50m

Control Mode: Pendant, Remote Control and Cabin Control.



 200t railway beam launcher crane beam for Highway





Brief Introduction



Beam launcher crane is a professional construction machinery with excellent performance, easy operation and safety structure. The main girder of erection crane is designed with a four sides truss structure, and is welded using structural steel and steel plates to provide a lightweight and strong wind resistance.


Construction



The bridge erection gantry crane consists of main girder, crane, front legs, rear legs, front leg cylinder, rear leg cylinder and the transverse connection of front, middle, rear legs. The control part is composed of hydraulic system and electric control system. In order to transport conveniently and install on site, pins and flanges are used to connect the main structure of the bridge erecting machine.

Usage


This product is designed to suit the building of high gradient, small radius curved bridges, 45 degree inclined bridges and bridges near tunnels. The bridge erection gantry crane also makes construction on plains areas much easier. The erection crane is suitable for working in the environment of no fire, no explosion and no corrosive media with temperature from -20~40C.



Main parameter data:



Max Span 50m 40m 35m 30m
Hoist Capacity 160t 100t 80t 60t
Lifting Speed of Trolley 0.8m/min 0.8m/min 0.8m/min 0.8m/min
Moving Sspeed of Trolley 4.5m/min 4.5m/min 4.5m/min 4.5m/min
Moving Speed of Crane 2.7m/min 2.7m/min 2.7m/min 2.7m/min
Loading Capacity 80t×2 50t×2 40t×2 30t×2
The Speed of Heavy Load 4-8m/min 4-8m/min 4-8m/min 4-8m/min
The Speed of Empty Load 18m/min 18m/min 18m/min 18m/min
Max Angle of Inclined Bridge 45° 45° 45° 45°





Real project in Myanmar :



200t railway beam launcher crane beam for Highway



Process:



200t railway beam launcher crane beam for Highway
