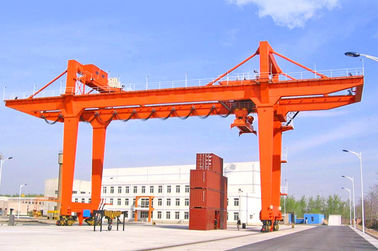

Customized Shipping Container Crane RMG Mobile Traveling Quayside Gantry Crane

Customized Shipping Container Crane RMG Mobile Traveling Quayside Gantry Crane
Customized Shipping Container Crane RMG Mobile Traveling Quayside Gantry Crane
Customized Shipping Container Crane RMG Mobile Traveling Quayside Gantry Crane Customized Shipping Container Crane RMG Mobile Traveling Quayside Gantry Crane

Large Image :  Customized Shipping Container Crane RMG Mobile Traveling Quayside Gantry Crane

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: SGS IOS CE
Model Number: RMG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD10000-80000/SET
Packaging Details: Packed by plywood crate or plastic woven cloth
Delivery Time: 50days
Supply Ability: 6000 sets per year

Customized Shipping Container Crane RMG Mobile Traveling Quayside Gantry Crane

Description
Product Name: RMG Rail MobileTraveling Customized Quayside Container Gantry Crane Cantilever Length: 0-15m
Lifting Speed: 5-15M/MIN Trolley Running Speed: 20-40M/MIN
Crane Running Speed: 30-50M/MIN Application:: Shipyard, Dock, Port
Power Source:: 3 Phase 380V 50hz Operational Method:: Cabin, Remote Control
Paintin Color:: In Your Request In Your Request: Field Installation, Commissioning And Training
High Light:

container lifting crane

,

container handling crane

RMG Rail MobileTraveling Customized Quayside Container Gantry Crane





Description:



This container gantry crane is composed of bridge, crane travelling machnism, trolley, electric equipment and container spreader. The frame adopts box-type welding frame. Crane's travellilng mechanism adopts separate drive. All mechanisms are operated in the driver’s cabin or wireless remote control. Power supply of crane adopts cable drum or sliding wires.



The standard capacity are 35ton, 36ton, 40ton, 41ton or 50ton.



Parameter:



Capacity Ton 35, 41, 50
Span m 12~35
Lifting height m 6~12
Lifting speed m/min 2~15
Travelling speed m/min 20~60
Contaoner type 20GP or 40GP
Drive type Motor driven for all motions
Duty Class A5~A7
Power source 380V, 50HZ, 3 phase (or other standard)
Working temperature -20~40℃
Control model Cabin control



Drawing Of Container Gantry Crane:



Customized Shipping Container Crane RMG Mobile Traveling Quayside Gantry Crane 0
