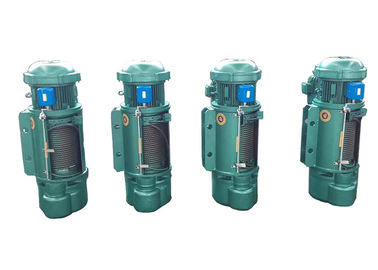

CD1 Series Wire Rope Hoist Cargo Lifting Compact Auto Electric Crane Hoist

Certification
China Henan Dowell Crane Co., Ltd. certification
China Henan Dowell Crane Co., Ltd. certification
Customer Reviews
Our company is DOWELL's old customer, several years has ordered a double beam overhead crane and single beam bridge crane

—— Sedanur BAYDAR

I'm Online Chat Now

CD1 Series Wire Rope Hoist Cargo Lifting Compact Auto Electric Crane Hoist

CD1 Series Wire Rope Hoist Cargo Lifting Compact Auto Electric Crane Hoist
CD1 Series Wire Rope Hoist Cargo Lifting Compact Auto Electric Crane Hoist CD1 Series Wire Rope Hoist Cargo Lifting Compact Auto Electric Crane Hoist CD1 Series Wire Rope Hoist Cargo Lifting Compact Auto Electric Crane Hoist

Large Image :  CD1 Series Wire Rope Hoist Cargo Lifting Compact Auto Electric Crane Hoist

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST SGS
Model Number: CD1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: electric hoist, electricals and other parts are packaged by high quality plywood crates
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 10000 Sets per Year

CD1 Series Wire Rope Hoist Cargo Lifting Compact Auto Electric Crane Hoist

Description
Application: Industry Sling Type: Wire Rope
Condition: New Power Source: Electric
Lift Speed: 7/0.7m/min After-sales Service Provided: Free Spare Parts
High Light:

electric power hoist

,

industrial electric hoist

CD1 Series Wire Rope Cargo Lifting Compact Auto Electric Hoist



Product Description



Wire rope electric hoist is a kind of small-sized lifting equipment, which can be installed independently working in steel or H-steel, but also with the single girder bridge crane, hoist double girder bridge crane, gantry crane and hoist jib crane hoisting equipment such as supporting the use of.

Type CD1 / MD1
Capacity(T) 0.5-5
Lifting Height(M) 6-30
Lifting Speed(M/Min) 0.8/8
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
N.W(kg) 135-800
Working temperature -20 ~ 40 ℃
Motor protection class IP54 IP55 IP65





Product Advantages



1. Compact structure, light weight, safe and reliable ;
2. Components and parts apply used universally, strong compatibility;
3. High lifting capacity , easy to maintenance;
4. Easy operation, accurate lifting steady operation.



Safety precautions

  • Follow the command of the commanding staff and report in time.
  • Select appropriate spreader and sling according to the specific condition of the weight. Do not wrap the hook directly
  • Do not mix different types or different specifications of slings and spades for use around heavy objects. The load of the spreader shall not exceed the rated lifting weight, and the sling shall not exceed the safety load; When lifting the hoisting object, check whether its connection point is firm and reliable.
  • The binding of the hanging object must be firm, and the lifting point and the center of gravity of the hanging object should be in the same vertical line. The rest of the rope head should be tightly wound on the hook or hanging object. When more than one person is tied up, one person should be in charge.
  • It is forbidden to lift with the hanging object or stay under the hanging hook or hanging object. When entering the lower part of the crane due to special circumstances, it is necessary to contact the commanding personnel crane driver (lifting operator) and set up a support device. Do not stay on the crane track.
  • When hanging heavy objects, the edges and corners of the lifting rope and chain should be padded. When hoisting scattered thing, must beard USES special hoisting basket, hoisting bucket to wait for implement.
  • Do not tie up, lift the weight of unknown, with other heavy objects, buried in the ground or with the ground and other objects together with the weight.
  • Keep a safe distance between the person and the hanging object. When placing the hanging object in position, use the pull rope or pole, hook in place.
  • When lifting large objects at high altitude, tie the drag rope.

The operation personnel should do the following work

  • Put the hook and lifting arm in the specified safe position, and the control handle should be in the zero position.
  • Place the sling and sling back in the specified place, and inspect and maintain them. Those who reach the scrapping standard should be replaced in time.
  • Replacement staff shall be informed of anomalies in equipment and facilities and of any remaining faults.
  • During the maintenance of lifting machinery, cut off the main power supply and put up a sign or lock.

CD1 Series Wire Rope Hoist Cargo Lifting Compact Auto Electric Crane Hoist 0

Parts Of Crane

CD1 Series Wire Rope Hoist Cargo Lifting Compact Auto Electric Crane Hoist 1

Packing & Delivery terms:

1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
