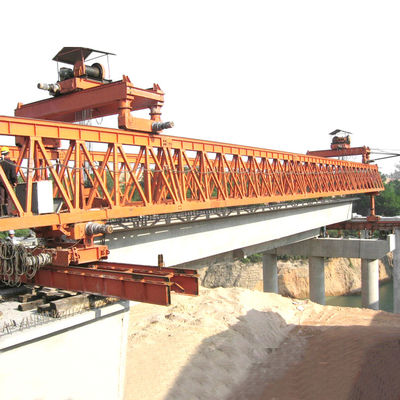

Remote Control 50M Span 100 Ton Bridge Launcher Crane

Remote Control 50M Span 100 Ton Bridge Launcher Crane
Remote Control 50M Span 100 Ton Bridge Launcher Crane
Remote Control 50M Span 100 Ton Bridge Launcher Crane Remote Control 50M Span 100 Ton Bridge Launcher Crane

Large Image :  Remote Control 50M Span 100 Ton Bridge Launcher Crane

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST
Model Number: JQJ Beam Launcher Girder Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 65 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 SET/YEAR

Remote Control 50M Span 100 Ton Bridge Launcher Crane

Description
Running Style: Rail Color: Customized
Current Overload Protection System: Include Limited Switch: Include
Voltage Lower Protection Function: Include Warranty: 3 Years
Span: 20-50M Power Supply: 380v 3p Or Customized
High Light:

100 Ton Launcher Crane

,

50M Span Launcher Crane

,

Remote Control Launcher Crane

100 ton bridge girder launcher erection crane launching lifting equipment good quality launcher crane sale



DOWELL company mainly engaged in single and double beam crane, gantry crane, bridge crane, electromagnetic sucker, grab, container spreaders, cantilever crane, electric hoist, electric flat car, cable reel reducer, simple gantry, hoist, industrial remote control, all kinds of crane safety sliding contact line and other accessories, can be customized as required, on-site installation, free design customized solutions, product life-long maintenance spare parts supply.

Product description

Remote Control 50M Span 100 Ton Bridge Launcher Crane 0

Remote Control 50M Span 100 Ton Bridge Launcher Crane 1

Remote Control 50M Span 100 Ton Bridge Launcher Crane 2

Launching lifting equipment good quality launcher crane sale is a new type of walking bridge erecting machine independently researched and developed by our company. The bridge erecting machine is a special railway equipment with a wide operating range, excellent performance, convenient operation and safe structure. The main beam is a truss structure, which has the characteristics of light structure and strong wind resistance. The equipment is mainly composed of main beam, front cantilever, front retreat, auxiliary legs, front and rear cross beams, hoisting mechanism, hydraulic system, electrical control, etc. And it can meet the requirements of large slope, small radius curved bridge, 45 degree slanted bridge and tunnel entrance bridge.



The railway bridge erecting machine has high strength, low requirements for the erection environment, safe and reliable operation, high stability, and a wide range of applications. Especially its high safety factor is well received by the public.



​Parts Of Crane

Remote Control 50M Span 100 Ton Bridge Launcher Crane 3

Features

Convenient operation: excellent performance, reasonable design, high work efficiency, save time and effort.



Wide application range: Used in machinery, chemical industry, electric power, railway, water conservancy, port, wharf, papermaking, etc

Safety Device

Safety is the most important issue for cranes.To ensure the safety,the following safety devices are equipped in BL crane.

  • Crane traveling limit switch.

  • Overload protection device.

  • Lifting height limit device.

  • Voltage lower protection function .

  • Phase sequence protection function.

  • Emergency stop function.

  • Rain cover for outside hoist, driving units, electric cubicle.

  • Warining indicator : flashing nights and warning sounds.

  • Wire-less infra-detector for anti-collusion
    inquire

Technical Parameters





MCJH50/200

MCJH40/160

MCJH40/160

MCJH35/100

MCJH30/100

Lifting capacity

200t

160t

120t

100t

100t

applicable span

≤55m

≤50m

≤40m

≤35m

≤30m

applicable skew bridge angle

0-450

0-450

0-450

0-450

0-450

trolley lifting speed

0.8m/min

0.8m/min

0.8m/min

1.27m/min

0.8m/min

rolley longitudinal moving speed

4.25m/min

4.25m/min

4.25m/min

4.25m/min

4.25m/min

cart longitudinal moving speed

4.25m/min

4.25m/min

4.25m/min

4.25m/min

4.25m/min

cart transverse moving speed

2.45m/min

2.45m/min

2.45m/min

2.45m/min

2.45m/min

transportation capacity of bridge transport vehicle

100t X2

80t X2

60t X2

50t X2

50t X2

heavy load speed of bridge transport vehicle

8.5m/min

8.5m/min

8.5m/min

8.5m/min

8.5m/min

bridge transport vehicle return speed

17m/min

17m/min

17m/min

17m/min

17m/min



FREE SPARE PARTS


Remote Control 50M Span 100 Ton Bridge Launcher Crane 5


 concrete lifting crane bridge girder erection machine

200t Bridge Girder Erection Crane for sale
