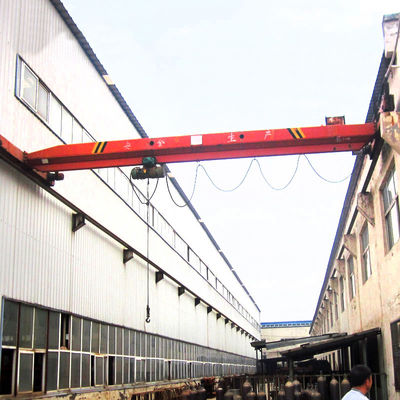

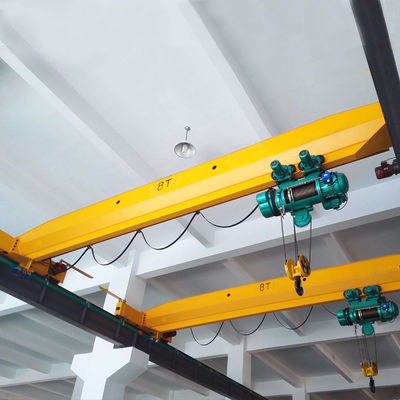

30m Lifting Inversion Single Girder Overhead Crane

30m Lifting Inversion Single Girder Overhead Crane
30m Lifting Inversion Single Girder Overhead Crane
30m Lifting Inversion Single Girder Overhead Crane 30m Lifting Inversion Single Girder Overhead Crane 30m Lifting Inversion Single Girder Overhead Crane 30m Lifting Inversion Single Girder Overhead Crane 30m Lifting Inversion Single Girder Overhead Crane

Large Image :  30m Lifting Inversion Single Girder Overhead Crane

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: IOS CE
Model Number: LD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: packed by plywood crate or plastic woven cloth
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4000sets per years

30m Lifting Inversion Single Girder Overhead Crane

Description
Product Name: Ip65 Electric Cable Hoist Overhead Crane Rated Lifting Moment: Different
Max. Lifting Load: 32t Max. Lifting Height: 6m~30m
Application: Workshop Control Method: Cabin Control/wire Rope Remote Control
Working Duty: A3-A5 Power Supply: 3 Phase AC 380V 50HZ
Lifting Speed: Customized
High Light:

Single Girder Overhead Crane

,

Lifting Inversion Overhead Crane

,

30m Lifting Overhead Crane

lifting inversion electric hoist single girder overhead crane


Description

The lifting capacity is 1-10t
the span is 7.5-22.5m
the working level is A3~A5
the working environment temperature is in the range of -25°C~40°C.

lifting inversion electric hoist single girder overhead crane is a kind of light and small overhead lifting crane. It is designed and manufactured according to JB/T1306-94. It is a light and small lifting machine with simple structure and wide application. It is used with CDI type or MDI type electric hoist.

lifting inversion electric hoist single girder overhead crane is mostly used in machinery manufacturing, assembly, warehouse, etc. It is not suitable for working in an environment with explosion hazard or fire hazard, and it is not suitable for places with large temperature or filled with acid and alkali gases. Work can also not be used to transport dissolved metals, toxic substances and flammable and explosive materials.

1. Widely use for lifting and transferring goods in factories, warehouses, maintenance workshop, material yard and so on.
30m Lifting Inversion Single Girder Overhead Crane 0
2. Prohibited to use the equipment in the combustible, explosive or corrosives environment.
3. It is characterized by more reasonable structure and higher strength steel as a whole. Used together with CD1 model, MD1 model, HC model electric hoist as a complete set.
4. Two operational methods: ground or operational room. (open model and closed model, can be installed on left or right side according to the practical situation )
121(1)



Mechanism ItemUnitResult
Item
Lifting capacityton1-30ton
Working grade A3-A5
Spanm7.5-31.5m
Working environment temperture°C-25~40
Travelling mechanismworking speedm/min20-75
motortype ZDY1 21-4ZDR 100-4
powerkw2*0.82*1.5
rotational speedm/min1380
Lifting mechanismlifting speedm/min8/0.8(7/0.7) 3.5(3.5/0.35) 8(7)
lifting heightH(m)6 9 12 18 24 30
travelling speedm/min20 30
working systemA3-A5
power sourcethree-phase 380V 50HZ


Features

Single girder bridge crane can effectively save plant space and investment. The cost and unique structure of the walking are your best choice.
1.Higher working efficiency
2.Easy installation and operation
3.Good design, Strong rigidity
4.Smoothly moving, Effectively braking
5.low energy consumption, strong rigidity, light weight

Our Service


1. Three years warranty
2. Free distribution of wearing parts
3. Provide assemble videos before shipment
4. Technical support and field installation


Inquiry notice ! ! !
If you want to inquire about our overhead crane , please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1. Lift capacity (3t 5t 10t or others) ?
2. Span (3m 5m 9m or others) ?
3. Lift height (Warehouse width) ?
4. Power supply in your local (380V/50HZ/3Phase or others) ?
5. Nearest port ?
6. What kind of goods will this crane lift ?



Parts of crane
