Product Details:
|
| Running Style: | Rail | Color: | Customized |
|---|---|---|---|
| Current Overload Protection System: | Include | Limited Switch: | Include |
| Voltage Lower Protection Function: | Include | Warranty: | 2 Years |
| Place Of Origin: | Henan, China | Crane Travel Speed: | 5m/min |
| Rated Lifting Moment: | 500kn | Span: | 50M |
| Lifting Speed: | 0-1m/min | Power Supply: | 380v 3phase Or Customized |
| High Light: | Rail Running Launching Crane,Project Beam Launching Crane,1m/Min Lifting Launching Crane |
||

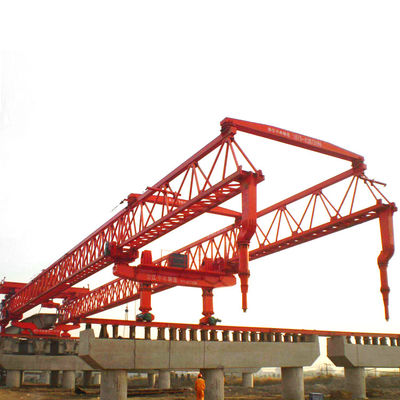

project beam launcher rail running launcher crane
Product Description
project beam launcher rail running launcher crane is a professional construction machinery, which is used to transfer the road concrete precast blocks and bridge beams to the position of abutments or supporters, and then built road or highway bridge. t composed of horizontal moving girder devices, main girders, support system, vertical moving gantry devices, horizontal moving gantry devices, hydraulic system and electrical control system.
project beam launcher rail running launcher crane is often used in port and railway cargo transportation. It is a high-quality hoisting machine with excellent structure, stable operation, safe and reliable, low maintenance cost and easy to control. Slag machine.
The structure of the crane mainly consists of: automatic electric control system, truck operation mechanism, lifting trolley, excellent hardness of the steel structure as the bearing capacity.
project beam launcher rail running launcher crane can be divided into highway erecting machine, railway erecting machine. Can also be divided according to the layout difference, such as: help guide beam type, transport frame, bridge machine price, through the tunnel and so on. Can also be set up according to the method of division, segment assembly, such as the whole hole. Also has according to the tonnage to divide, the highway bridge machine general tonnage is smaller than the force, generally less than 300 tons. Railway bridge erecting machine especially high-speed railway bridge erecting machine general tonnage than force, 450 tons, 900 tons, are very rare. Also some factory production of bridge erecting machine can be road and rail dual-use, erecting machine manufacturers, this kind of erecting machine is generally suitable for ordinary railway Bridges.
Schematic Drawing
Product Advantages
Safety Device
Inquiry notice ! ! !
If you want to inquire about our launching girder gantry crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1. Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?
|
Max Span
|
50m
|
40m
|
35m
|
30m
|
|
Hoist Capacity
|
160t
|
100t
|
80t
|
60t
|
|
Lifting Speed of Trolley
|
0.8m/min
|
0.8m/min
|
0.8m/min
|
0.8m/min
|
|
Moving Sspeed of Trolley
|
4.5m/min
|
4.5m/min
|
4.5m/min
|
4.5m/min
|
|
Moving Speed of Crane
|
2.7m/min
|
2.7m/min
|
2.7m/min
|
2.7m/min
|
|
Loading Capacity
|
80t×2
|
50t×2
|
40t×2
|
30t×2
|
|
The Speed of Heavy Load
|
4-8m/min
|
4-8m/min
|
4-8m/min
|
4-8m/min
|
|
The Speed of Empty Load
|
18m/min
|
18m/min
|
18m/min
|
18m/min
|
|
Max Angle of Inclined Bridge
|
45°
|
45°
|
45°
|
45°
|
Parts Of Crane
