Product Details:
|
| Cantilever Length: | 0-15m | Lifting Speed: | 5-15M/MIN |
|---|---|---|---|
| Trolley Running Speed: | 20-40M/MIN | Crane Running Speed: | 30-50M/MIN |
| Power Supply: | 3 Phase 380V 50hz Or Request | Core Components: | Bearing, Gearbox, Motor |
| Rated Loading Capacity: | 50 Ton, 20 Ton, 40t | Control Method: | Cabin Control |
| Certification: | CE ISO GOST TUV BV | Power Source: | 3 Phase 380V 50hz |
| Colour: | Request | ||
| High Light: | Pedestal Container Crane,Double Girder Gantry Container Crane,20T Loading Gantry Container Crane |
||

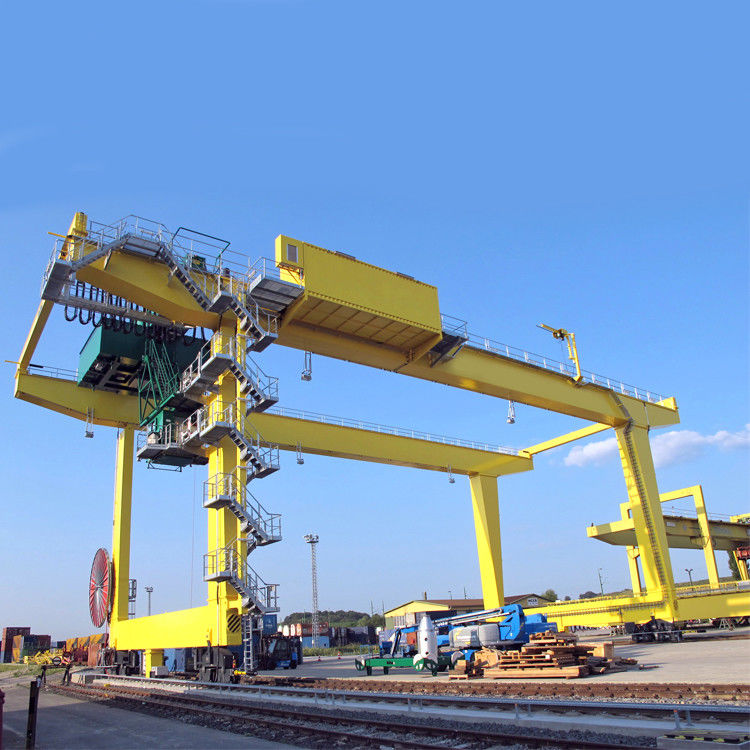

pedestal mobile container crane double girder gantry crane
Product Description
customized shipping container crane workshop gantry crane is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers. Its provision of power is offered by cable reel. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.
Product Characteristics
1. Double box beam with steel legs moving through the ground beam as crane travelling system
2. The camber of main beam will be designed as Span*1-1.4/1000.
3. Steel Material: Q235 or Q345
4. Shot-blasting Sa2.5 for main girder and supporting beam
5. Epoxy zinc rich high quality painting.
6. Electrification and outfitting
7. Conductor power supply: Cable Reel or busbar.
8. Frequency conversion, double speed, single speed, and All hoist and crane movements are independent an d can be run simultaneously different design duo to meet crane applications
Technical data sheet
| Parameters | gantry crane |
| Lifting Capacity | 5t-500t |
| Lifting Height | 5m-30m |
| Span | 5m-30m |
| Cantilever Length | 0-1/3 span |
| Control Methord | Remote control, pendent, cabin |
| Speed | Designed |
| Other Components | Motor, Reducer, Wheel, Rail sweeper, Rail clamp, Brake, etc. |
| Ambient Temperature | -20℃~+40℃ |
| Electric Protection Systems |
Short circuit protection, Voltage-loss protection, Emergency power switch, Overload limiter, Position limiter, Zero position and interlock protection, Three-phase fault & voltage fault protection, Ground protection, etc. |
| Remarks |
Above Parameter just reference ,we do all items as your requirement. |
| What type of gantry crane do you need? Please feel free to send a inquiry to us and get what you what. >>>Send and inquiry |
|
Schematic drawing
Parts Of Crane
