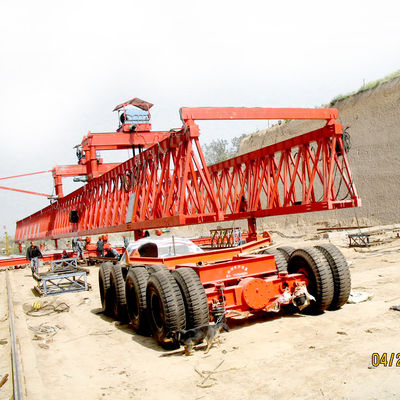

5m/Min Traveling 100T Concrete Box Girder Launcher Crane

5m/Min Traveling 100T Concrete Box Girder Launcher Crane
5m/Min Traveling 100T Concrete Box Girder Launcher Crane
5m/Min Traveling 100T Concrete Box Girder Launcher Crane 5m/Min Traveling 100T Concrete Box Girder Launcher Crane 5m/Min Traveling 100T Concrete Box Girder Launcher Crane 5m/Min Traveling 100T Concrete Box Girder Launcher Crane 5m/Min Traveling 100T Concrete Box Girder Launcher Crane

Large Image :  5m/Min Traveling 100T Concrete Box Girder Launcher Crane

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST SGS
Model Number: JQJ Beam Launcher Girder Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 800000-3000000 SET
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 60 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Sets per Year

5m/Min Traveling 100T Concrete Box Girder Launcher Crane

Description
Running Style: Rail Color: Customized
Current Overload Protection System: Include Limited Switch: Include
Voltage Lower Protection Function: Include Warranty: 2 Years
Place Of Origin: Henan, China Crane Travel Speed: 5m/min
Rated Lifting Moment: 500kn Span: 50M
Lifting Speed: 0-1m/min Power Supply: 380v 3phase Or Customized
High Light:

100T Concrete Box Launcher Crane

,

Warehouse Concrete Box Launcher Crane

,

5m/Min Traveling Launcher Crane

5m/Min Traveling 100T Concrete Box Girder Launcher Crane



Product Description of 5m/Min Traveling 100T Concrete Box Girder Launcher Crane



5m/Min Traveling 100T Concrete Box Girder Launcher Crane is bridge crane that places precast concrete beam into precast pier. And it consist of main girder,front leg, middle leg, rear leg, rear auxiliary leg, lifting trolley, hydraulic system and electrical device.

Double girder truss type launcher girder crane is suitable for highway and railway bridge, such as straight bridge, skew bridge, curved bridge and so on.


5m/Min Traveling 100T Concrete Box Girder Launcher Crane can be divided into highway erecting machine, railway erecting machine. Can also be divided according to the layout difference, such as: help guide beam type, transport frame, bridge machine price, through the tunnel and so on. Can also be set up according to the method of division, segment assembly, such as the whole hole. Also has according to the tonnage to divide, the highway bridge machine general tonnage is smaller than the force, generally less than 300 tons. Railway bridge erecting machine especially high-speed railway bridge erecting machine general tonnage than force, 450 tons, 900 tons, are very rare. Also some factory production of bridge erecting machine can be road and rail dual-use, erecting machine manufacturers, this kind of erecting machine is generally suitable for ordinary railway Bridges.



Schematic drawing of 5m/Min Traveling 100T Concrete Box Girder Launcher Crane

5m/Min Traveling 100T Concrete Box Girder Launcher Crane 0

Product Advantages of 5m/Min Traveling 100T Concrete Box Girder Launcher Crane



5m/Min Traveling 100T Concrete Box Girder Launcher Crane not only can meet the standard set up, but also it can meet the cross curve erection, variable span erection, span continuous beam, composite beam, continuous steel etc. In addition to bridge erection, simply supported girder erection and point lifting, it is characterized by good stability, high efficiency, safety and reliability, variable span convenient adjustment and convenient operation and etc.



1. Unique pin connection, firm and reliable, easy to install
2.  A-type fracture surface, continuous girder with low center of gravity, convenient and reliable.
3. The machine can accomplish the build of girders with carrying and erection at the same time.
4. Low deflection and high stiffness .
5. Safe and reliable .
6. High efficiency.




Inquiry notice ! ! !



If you want to inquire about our launching girder gantry crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.

1. Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?



Technical Data Sheet of 5m/Min Traveling 100T Concrete Box Girder Launcher Crane



Span 50m 40m 30m
Type QJ200/50 QJ180/50 QJ160/50 QJ140/40 QJ120/40 QJ100/30 QJ80/30
Rated capacity 200t 180t 160t 140t 120t 100t 60t
Bridge span 30-50m 20-40m 20-30m
Max. slope Longitudinal slope <5% cross slope <5%
Lifting speed 0.41m/min 0.45m/min 0.5m/min 0.56m/min 0.65m/min 0.75m/min 0.9m/min
Trolley longitudinal speed 3m/min
Trolley cross speed 3m/min
Crane slide longitudinal speed 3m/min
Crane side cross travel speed 3m/min
Adaptive inclined bridge angle 0~45°
Adaptive curved bridge radius 400m 300m

200m





Parts Of Crane



Bridge launching girder 180T beam launcher machine for erecting concrete girders

Bridge launching girder 180T beam launcher machine for erecting concrete girders

Bridge launching girder 180T beam launcher machine for erecting concrete girders



5m/Min Traveling 100T Concrete Box Girder Launcher Crane 4

5m/Min Traveling 100T Concrete Box Girder Launcher Crane 5
