Product Details:
|
| Working Duty: | M3/M5 | Working Temperature: | -20 ~ 40 ℃ |
|---|---|---|---|
| Lifting Height(M): | 6-30m | Lifting Speed: | 0.8/8M/Min |
| Motor Protection Class: | IP54 IP55 IP65 | Condition: | New |
| Color: | According To Your Requirement | Voltage: | 380V,220v/50Hz,220V-440V |
| Application: | Lifting Goods,warehouses,Construction Used All Kinds Of Cranes | Capacity: | 0.5T~30T |
| Usage: | Construction Hoist,Mining Hoist,Material Handling,portable,Household | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Free Spare Parts |
| High Light: | Ip65 Electric Hoist,30T Capacity Electric Hoist,ISO Construction Electric Hoist |
||
Ip65 Electric Cable Hoist Lifting Winch
Product description
Ip65 electric cable hoist lifting winch is a kind of light and small lifting equipment, which can be installed on single beam crane, bridge crane, gantry crane, arm cranes ,cantilever cranes, etc. It can also be used as a winch.It is widely used in factories,mines,harbors,warehouses,cargo storage areas and shops.CD has one speed,MD has two speed. CONTACT
SUPPLIER get price
Ip65 electric cable hoist lifting winch is a kind of small-sized lifting equipment which is small volume, light weight, huge lifting capacity. When workshop filled with explosive mixture, in order to ensure safe premise, Wire rope hoist is necessary and favorable equipment to improve labor conditions and labor productivity. It can be suspended on I- beam track for straight or curve traversing, or mounted on a fixed frame to lift heavy material.
portable lifting crane proof electric power hoist with remote control is a kind of light-small lifting equipment which is Score No.1 for continuous 9 years and sold well both domestic and abroad.
Our factory can produce 1-50 tons of wire rope electric hoist, including CD and MD type,low headroom hoist,HC type large weight and high working level,HB/BHC explosion proof type , European electric hoist and Chain hoist
Application
1,extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,
2,installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
3,It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.
4,It has so many appllication usages just for its advantages, such as: tight structure, convenient operation, light weight, wide common use and so on.
Main features
1. Fixed device: thickened steel, high affordability, convenient installation.
2. Motor: twined by copper wire,fast dissipation, high temperature resistance.
3. Motor shell: it is made of aluminum alloy, can protect the durability of the motor effectively.
4. Lifting hook: a high-strength die forging hook； high quality 20# carbon steel, Spring-loaded sturdy safety catch.
5. Limiter: When the lifting objects reaches the limiter, it will automatically stop running.
6. Wire rope: high-quality anti-rotation, thicker and solid wire rope, high bearing capacity and will not break.
7. Thermal protection device: Protection class IP54, the motor runs some time later, it will automatically power off.
More specification as follows
|
CD/MD Electric Hoist
|
|||||||
|
Lifting weight(t)
|
1T
|
2T
|
3T
|
5T
|
10T
|
||
|
Lifting height (m)
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
||
|
Lifting speed (m/min)
|
8 8/0.8
|
8 8/0.8
|
8 8/0.8
|
8 8/0.8
|
7 7/0.7
|
||
|
Running speed (m/min)
|
20
|
20
|
20
|
20
|
20
|
||
|
Bonding number(n/hr)
|
120
|
120
|
120
|
120
|
120
|
||
|
Wire rope
|
Diameter
|
7.4m/m
|
11mm
|
13mm
|
15mm
|
15mm
|
|
|
Structure
|
D-6*37+1
|
D-6*37+1
|
D-6*37+1
|
D-6*37+1
|
D-6*37+1
|
||
|
I-beam models
|
16-28b
|
20a-32c
|
20a-32c
|
25a-45c
|
32a-63c
|
||
|
Motor
|
|
Power
|
1.5 1.5/0.2
|
3 3/0.4
|
4.5 4.5/0.4
|
7.5 7.5/0.8
|
13 13/2.0
|
|
Speed
|
1380
|
1380
|
1380
|
1400
|
1400
|
||
|
Operation
|
Power
|
0.2
|
0.4
|
0.4
|
0.8
|
0.8
|
|
|
Speed
|
1380
|
1380
|
1380
|
1380
|
1380
|
||
|
Type of work
|
M3
|
M3
|
M3
|
M3
|
M3
|
||
|
Institution level
|
25%
|
25%
|
25%
|
25%
|
25%
|
||

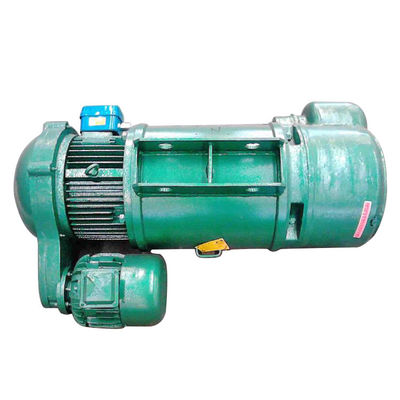

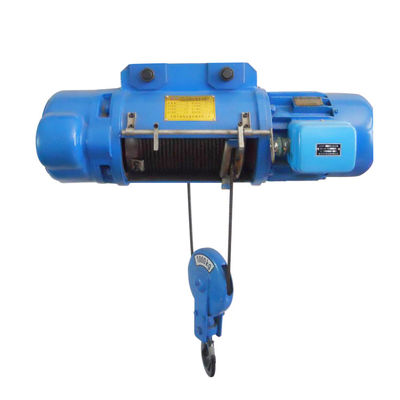

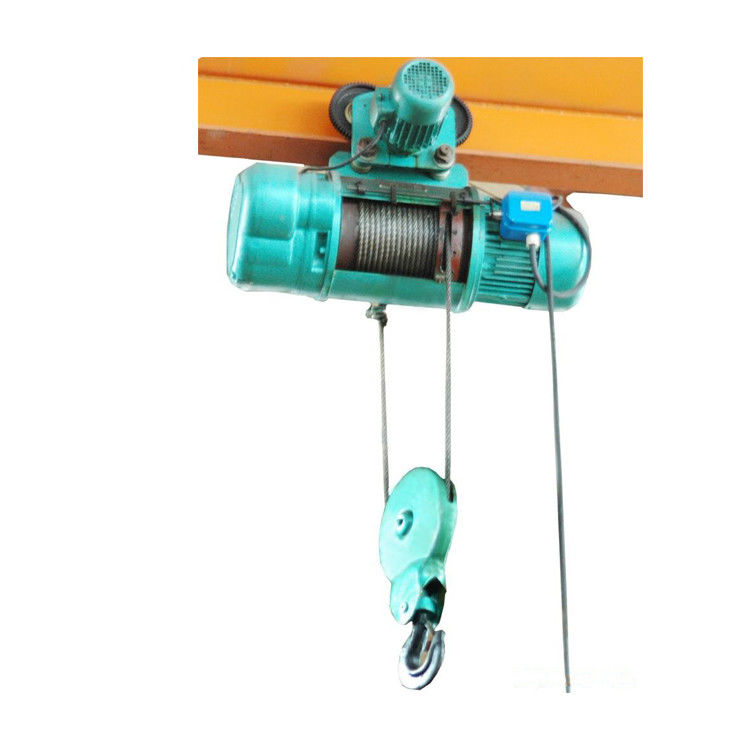

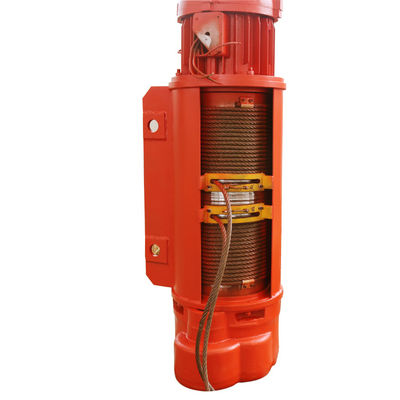

Detailed Images
We can supply all these crane spare parts freely for two years
If you're interested please contact us now!
Product Process
Packaging&shipping
1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
Certifications
Company Information
Henan Dowell Crane Co., Ltd is a China-leading group of crane businesses which was founded in 1955, And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory.
a). Henan Dowell Crane Co., Ltd has already obtained the CCC,CE,BV,SGS,ISO OHSAS certifications and has won over 60 honors.
b). Our company offers services for more than 5000 companies, and the products are polular in more than 100countries.
FAQ
1.How can I get a precise crane offer?
A.To providing you a precise crane offer efficiently, please kindly provide details as flowing:
a).Lifting capacity,. material weight(unit as tonnage)
b).Lifting height; (unit as meter)
c).Crane span, the width of inquired crane(unit as meter)
d).Crane traveling length; when rail track/runway beam needed, traveling length shall be provided
e) Working power; power source at site(unit as voltage, phase and Hz)with red is mean necessary for offering solution
2.Can I get your crane products with customized personalized service?
A.Yes, Dowellcrane promise customized personalized products are available for our clients all the time. Just freely let us know your special demands about the products, our engineering team will work on that.
3.What should I do if l'm not able to install the crane after buying?
A.Freely contact us. Our engineering team available for oversea service with crane installation, inspection and commissioning.
4.How long I can receive my crane products after my order placed?
A.Our production will be started once the payment confirmed.
