Product Details:
|
| Product Name: | Single Beam Inversion Hanging Overhead Crane | Warranty: | 2 Years |
|---|---|---|---|
| Span: | 7.5-22.5m | Condition: | New |
| After-sales Service Provided: | Free Spare Parts | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 20t |
| Application: | Warehouse And So On | Power Supply: | 3 Phase AC 380V 50HZ |
| High Light: | Inversion Hanging Overhead Crane,20t Load Single Beam Overhead Crane,30m Lifting Hanging Overhead Crane |
||

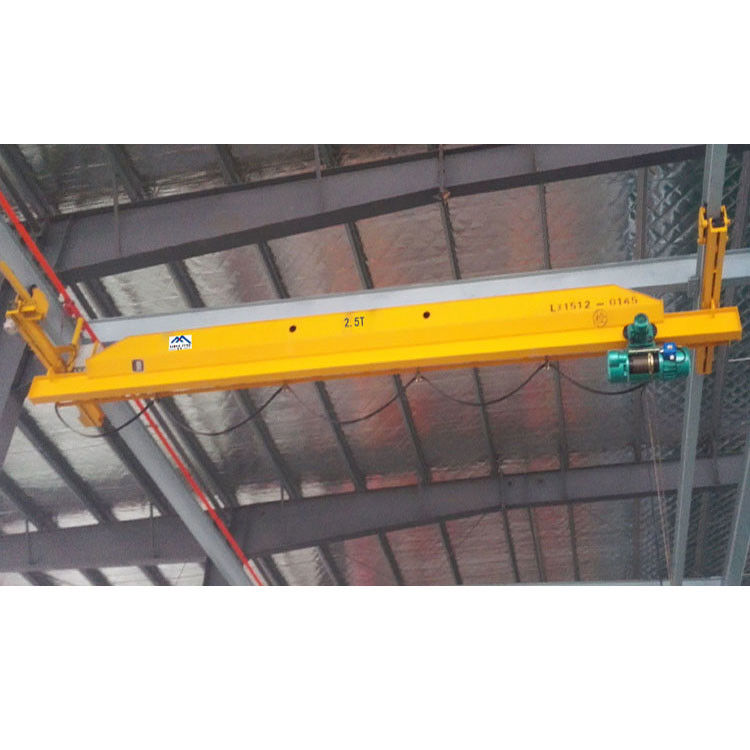

single beam inversion hanging overhead crane
Description of single beam inversion hanging overhead crane
The Lx Model Electric Suspension Single Beam Overhead Crane 1~10 ton is used with CD1 and MD1 electric hoists to form a light and small crane with rail operation. The machine is mostly made of dry machinery. Assembly workshops and warehouses, caves and other places. Run rails with I-beams.
Main Features of single beam inversion hanging overhead crane
1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
|
Lifting Weight (t)
|
Span (m)
|
Lifting Height (m)
|
Lifting Speed (m/min)
|
Trolley Speed (m/min)
|
Crane Speed (m/min)
|
Recommended Track
|
|
1
|
7.5~22.5
|
6~12
|
0.8/5
|
2~20
|
3~30
|
I20a~I45c
|
|
2
|
6~12
|
I22a~I45c
|
||||
|
3.2
|
6~12
|
I32a~I45c
|
||||
|
5
|
6~12
|
I32a~I45c
|
||||
|
10
|
6~12
|
I40b~I63c
|
||||
|
Working Level
|
A5
|
|||||
|
Power
|
380V,50Hz or other
|
|||||
|
Working Temperature
|
-20~40℃ | |||||
Drawing of single beam inversion hanging overhead crane
Related products
|
|
LB Explosion Proof single girder overhead crane
Capacity: 1-20 ton
Hoisting height: 1-30 m
Span: Max 31.5 m
Control: Pendant control, remote control,cabin control
|
|
LDA single girder overhead crane
Capacity: 1-32Ton Span: Max 32M Speed : single speed,double speed working class: A3 control : pendant control, remote control Power supply : 380V-50Hz. 3 phase |
|
|
Qz double girder overhead crane
Capacity: 5-150Ton Span: Max 35M Speed : Single (Double) speed,VDF speed control Working Class: A5-A8 Control : Cab control, Remote control Power Supply : 380V-50Hz,3 phase |
|
QD double girder overhead crane
Capacity : 5-150Ton Span: Max 35M Speed: Single (Double) speed,VDF speed control Working Class : A5-A8 Control : Cab control, Remote control Power Supply: 380V-50Hz. 3 phase |
|
Wooden box+plastic
Hoist and small spares are packed by wooden box ,main girder and end girder are packed by plastic
