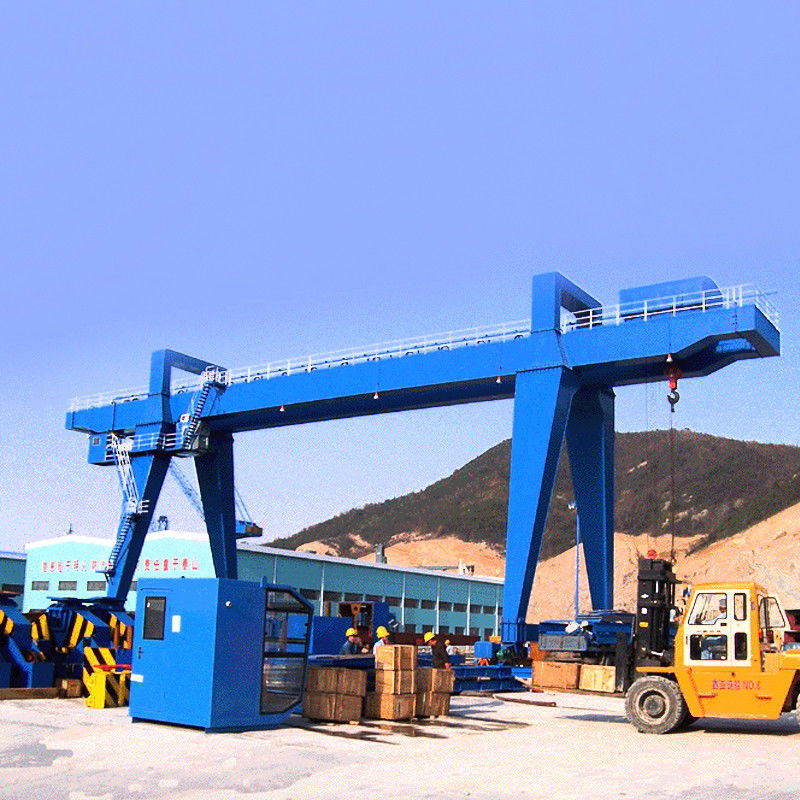

Double Girder Warehouse Gantry Crane With Electric Hoist

Double Girder Warehouse Gantry Crane With Electric Hoist
Double Girder Warehouse Gantry Crane With Electric Hoist
Double Girder Warehouse Gantry Crane With Electric Hoist Double Girder Warehouse Gantry Crane With Electric Hoist

Large Image :  Double Girder Warehouse Gantry Crane With Electric Hoist

Product Details:
Place of Origin: Henan
Brand Name: Dowellcrane
Certification: SGS CE ISO
Model Number: MG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: packed by plywood crate, or packed by plastic woven cloth<h1 style="text-align: center;">Professional rail mounted precast yard electric gantry crane 30 ton</h1> <p style="margin: 0px; padding: 0px; border: 0px; font-style: normal; font-weight: normal; fon
Delivery Time: 50 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 280 set/month

Double Girder Warehouse Gantry Crane With Electric Hoist

Description
Lifting Speed: 5-15M/MIN Trolley Running Speed: 20-40M/MIN
Crane Running Speed: 30-50M/MIN Trolley Model: OD
Cantilever Length: 0-15m Control Method: Cabin Control/wire Rope Remote Control
Power Source: 3 Phase 380V 50hz Or Request Colour: Request
High Light:

Double Girder Warehouse Gantry Crane

,

15M/Min Lifting Warehouse Gantry Crane

,

15m Cantilever Warehouse Gantry Crane

double girder warehouse cantilever gantry crane with electric hoist


Description of double girder warehouse cantilever gantry crane with electric hoist

Heavy duty Double girder gantry crane for sale is a heavy duty crane for indoor and outdoors places where overhead crane runways are not practical. Heavy duty gantry crane for sale is a multi-purpose gantry crane with double girders, which can be matched with lifting hooks, grabs, clamps, electromagnets and other spreader according to the type of materials.

1. It is a medium and heavy size crane which travels in track.
2. Structure: main beam, support legs, crane traveling organ, trolley, electric equipment, strong lifting winch.
3. Power is supplied by cable or slide wire.
4. Prohibition: lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.
5. Application: workshop, storage, port and hydroelectric power station and some other outdoor place, where it has a high frequency or more lifting times.

Main features of double girder warehouse cantilever gantry crane with electric hoist

1. good stability, high efficiency, safety and reliability;
2. Low deflection and high stiffness;
3. Variable span convenient adjustment and convenient operation;
4. Unique pin connection, firm and reliable, easy to install;
5. A-type fracture surface, continuous girder with low center of gravity, convenient and reliable;
6. The machine can accomplish the build of girders with carrying and erection at the same time.

Safety devices of double girder warehouse cantilever gantry crane with electric hoist

1. Overload Limiter; Limit Switch (Lifting and Traveling); Short-circuit protection.
2. Interlock protection device; Under-voltage protection; Buffer; Zero protection.
3. Rail tongs, Anchor device and Motor overload protection.
4. Rail clear plate and emergency stop system.
5. Protective cover and current overload protection system.
6. Bus Bar prevent plate and security chain protection.
7. Anti-collision device and ground protection.

Inquiry notice ! ! !

If you want to inquire about our gantry crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.

1. Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?



Parameters
of double girder warehouse cantilever gantry crane with electric hoist

Mechanism Item Unit Result
Item
Lifting capacity ton 5-100
Lifting height Main m 10-12
Auxiliary 10.72-13
Span m 18-35
Working environment temperture °C -20~40
Speed Lifting Speed Main m/min 5.9-9.3
Aux. 8.5-16.7
Trolley 34-44.6
Cab 34.5-47.1
Working system   A5
Power source   three-Phase A C 50HZ 380V



Schematic drawing of double girder warehouse cantilever gantry crane with electric hoist





















































double girder warehouse cantilever gantry crane with electric hoist parts

Double Girder Warehouse Gantry Crane With Electric Hoist 0

After-services

Double Girder Warehouse Gantry Crane With Electric Hoist 1


process
