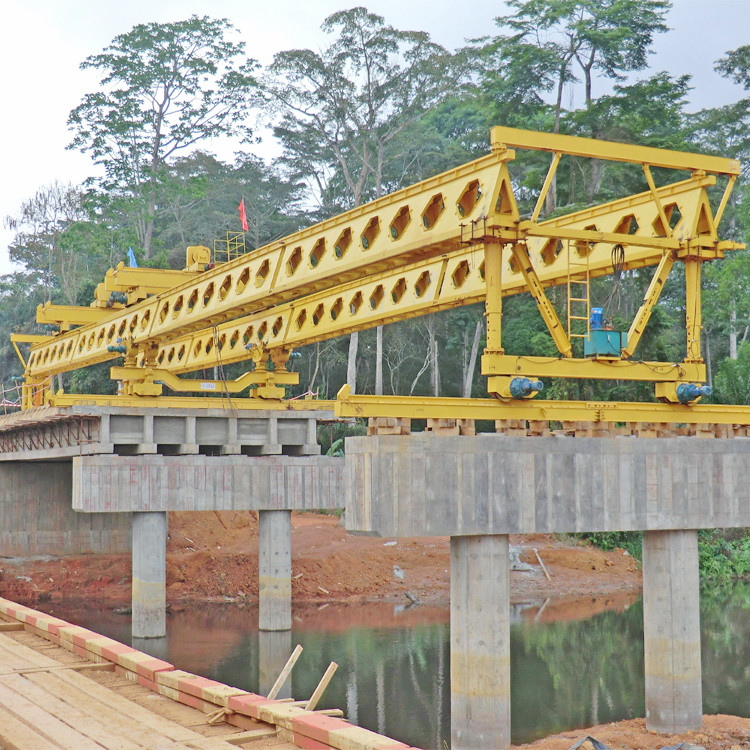

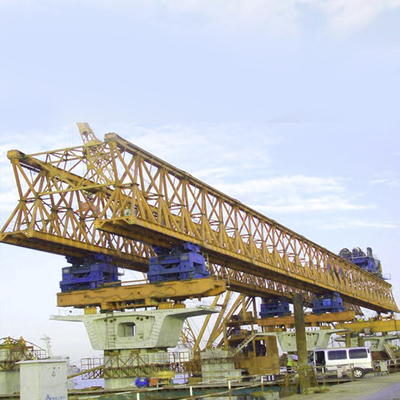

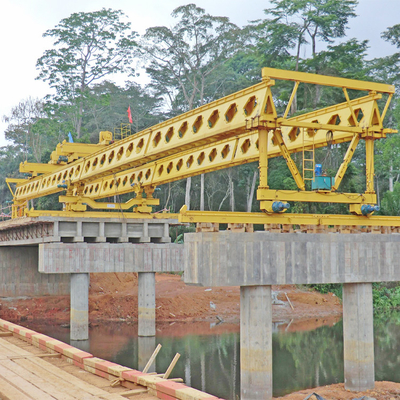

Bridge Erection 3phase Launching Crane 50M Pan Professional Design

Bridge Erection 3phase Launching Crane 50M Pan Professional Design
Bridge Erection 3phase Launching Crane 50M Pan Professional Design
Bridge Erection 3phase Launching Crane 50M Pan Professional Design Bridge Erection 3phase Launching Crane 50M Pan Professional Design Bridge Erection 3phase Launching Crane 50M Pan Professional Design

Large Image :  Bridge Erection 3phase Launching Crane 50M Pan Professional Design

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST SGS
Model Number: JQJ Beam Launcher Girder Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 199999-599999 SET
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Sets per Year

Bridge Erection 3phase Launching Crane 50M Pan Professional Design

Description
Running Style: Rail Color: Customized
Current Overload Protection System: Include Limited Switch: Include
Voltage Lower Protection Function: Include Warranty: 2 Years
Place Of Origin: Henan, China Crane Travel Speed: 5m/min
Rated Lifting Moment: 500kn Span: 50M
Lifting Speed: 0-1m/min Power Supply: 380v 3phase Or Customized
High Light:

bridge Erection Launching Crane

,

50M pan Launching Crane

,

3phase Launching Crane

Professional Design Bridge Erection Launching



Product Description

Professional Design Bridge Erection Launching machinery, which is used to transfer the road concrete precast blocks and bridge beams to the position of abutments or supporters, and then built road or highway bridge.
It composed of horizontal moving girder devices, main girders, support system, vertical moving gantry devices, horizontal moving gantry devices, hydraulic system and electrical control system.
Highway bridge is the highway bridge prestressed concrete beam tablet or beam section lifting to bridge bearing on the special construction machinery. Mainly by the beam longitudinal shift flat car assembly, girder components, support system, the longitudinal shift system, the transverse system, hydraulic system, electric control system components.



Parts Details Of Crane

Bridge Erection 3phase Launching Crane 50M Pan Professional Design 0



Product Parameters

Lifting capacity
(t)
200
160
120
100
80
applicable span
(m)
≤55
≤50
≤40
≤35
≤30
applicable skew bridge angle
0-450
0-450
0-450
0-450
0-450
trolley lifting speed
(m/min)
0.8
0.8
0.8
1.27
0.8
rolley longitudinal moving speed
(m/min)
4.25
4.25
4.25
4.25
4.25
cart longitudinal moving speed
(m/min)
4.25
4.25
4.25
4.25
4.25
cart transverse moving speed
(m/min)
2.45
2.45
2.45
2.45
2.45
transportation capacity
(t)
100X2
80 X2
60X2
50X2
50X2
speed of bridge transport vehicle
(m/min)
8.5
8.5
8.5
8.5
8.5
return speed
(m/min)
17
17
17
17
17



Product Advantages

  • Reasonable structure
  • Favorable performance
  • Smooth starting and stopping
  • Safe and reliable traveling
  • Low noise, commodious cabin and good view
  • Convenient maintenance, excellent exchangeability for parts and componentsLight weight, convenient and quick transportation, installation and removal.



Safety Features

  • Crane traveling limit switch.
  • Overload protection device.
  • Lifting height limit device.
  • Voltage lower protection function .
  • Phase sequence protection function.
  • Emergency stop function.
  • Rain cover for outside hoist, driving units, electric cubicle.
  • Warining indicator : flashing nights and warning sounds.



Installaton



Bridge Erection 3phase Launching Crane 50M Pan Professional Design 1





Packing and Delivery



Bridge Erection 3phase Launching Crane 50M Pan Professional Design 2



Our Advantages

  • Help customers reduce work intensity and make material handling easier
  • Help customers greatly improve work and production efficiency, and increase product output
  • Solve the urgent needs of customers and provide customized special equipment
  • Environmentally friendly design to help customers maximize energy saving and save money
