Product Details:
|
| Working Duty: | M3/M5 | Working Temperature: | -20 ~ 40 ℃ |
|---|---|---|---|
| Lifting Height(M): | 6-30m | Lifting Speed: | 0.8/8M/Min |
| Motor Protection Class: | IP54 IP55 IP65 | Condition: | New |
| Color: | According To Your Requirement | Voltage: | 380V,220v/50Hz,220V-440V |
| Application: | Lifting Goods,warehouses,Construction Used All Kinds Of Cranes | Capacity: | 0.5T~30T |
| Usage: | Construction Hoist,Mining Hoist,Material Handling,portable,Household | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Free Spare Parts |
| High Light: | Electric Hoist Trolley,30T Electric Hoist,Electric Hoist With Trip Switch |
||

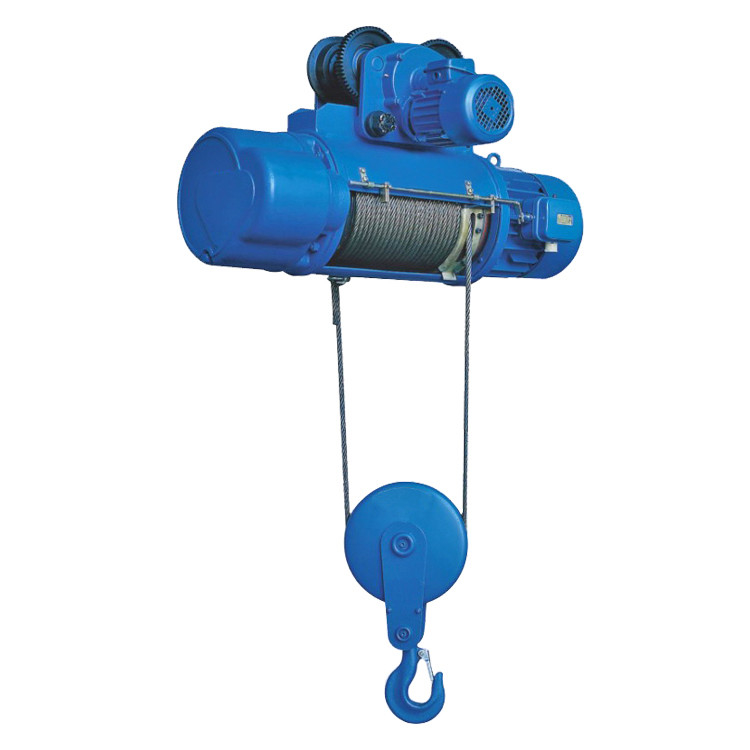

Electric Hoist and Trolley with Remote Control
Product description
Electric Hoist and Trolley with Remote Control is a kinds of special lifting equipment, installed on the crane and gantry crane. It has features of small volume, light weght, simple operation and convenient use, etc, which is used for industrial and mining enterprises, storage terminals and other places.
Details of Hoist
Main Advantages
More specification as follows
| Product parameters | |||||||
| Model | 0.25TON | 0.5TON | 1TON | 2TON | 3TON | 5TON | 10TON |
| Capacity ton | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Standard lift m | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
| Lifting Height m/min | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 77/0.7 |
| Running Speed m/min | 20/30 | ||||||
| Wire Rope type | 6*19-3.6 | 6*37-4.8-180 | 6*37-7.4-180 | 6*37-11-155 | 6*37-13-170 | 6*37-15-200 | 6*37-15-200 |
| I beam track type | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c |
| Loop track minimum Radius m | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 |
| Voltage V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Frequency HZ | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Phase | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Detailed Images
Product Process
Packaging&shipping
1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
About Us
Henan Dowell Crane Co., Ltd is a China-leading group of crane businesses which was founded in 1955, And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory.
