Product Details:
|
| Product Nmae: | QD Double Girder Overhead Crane | Span: | 7.5-31.5m |
|---|---|---|---|
| Lifting Height: | 5~30M Or Customized | Lifting Speed: | 5-15M/MIN |
| Trolley Travelling: | 30m/min | Working System: | A3-A5 |
| Electric Protection: | IP54,IP55 | Voltage: | 3PH AC 220--440 V |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Marketing Type: | New Product 2021 |
| Color: | Customized | Condition: | New |
| High Light: | Overhead Bridge Crane With Trolley,QD Double Girder Overhead Bridge Crane,30m/min Overhead Bridge Crane |
||

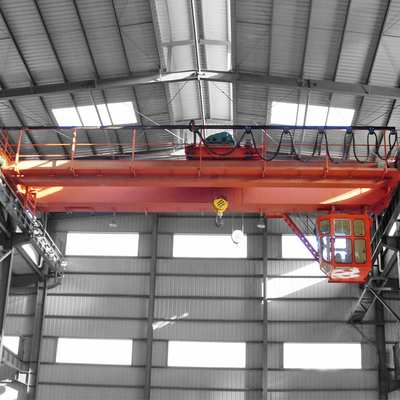

Factory Outlet Price QD Double Girder Overhead Crane With Trolley
Product Description
The Double Girder Overhead Crane with Trolley is designed for use in a wide range of industries, including manufacturing, warehousing, construction, and other heavy-duty applications. With a lifting capacity of up to 50 tons, it can effortlessly handle heavy loads and transport them to their destination without any hassle.
The crane is also equipped with a range of safety features that guarantee optimum protection for both the load and the operator. The trolley is fitted with an overload protection system that automatically alerts the operator when the load exceeds the crane's capacity. Additionally, the crane cabin is designed to offer a comfortable, safe and efficient working environment for the operator.
The Double Girder Overhead Crane with Trolley is easy to operate, maintain, and service, making it a cost-effective material handling solution for industries looking to improve their productivity and efficiency. Its advanced control system enables it to operate at high speeds while still delivering excellent precision and reliability.
Product Technical Data Sheet
|
Heavy Capacity Customized Double Girder 50 ton Overhead Crane |
|||||||||||||||||||
|
Lifting capacity |
t |
50/10 |
50/10 |
||||||||||||||||
|
Working level |
A5 |
A6 |
|||||||||||||||||
|
Span |
m |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
28.5 |
31.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
28.5 |
31.5 |
||
|
Weight |
t |
31.6 |
34.2 |
37.2 |
40.6 |
44.5 |
49.0 |
55.2 |
61.4 |
32.2 |
34.9 |
37.8 |
41.2 |
45.1 |
49.9 |
56.1 |
62.3 |
||
|
Maximum wheel pressure |
KN |
347 |
368 |
372 |
395 |
415 |
426 |
450 |
470 |
354 |
375 |
393 |
409 |
423 |
440 |
459 |
478 |
||
|
Speed |
Operation |
m/min |
73 |
87 |
|||||||||||||||
|
Crab running |
38.5 |
38.5 |
|||||||||||||||||
|
Lift |
6.8 |
8.5 |
|||||||||||||||||
|
Deputy lift |
13.2 |
13.2 |
|||||||||||||||||

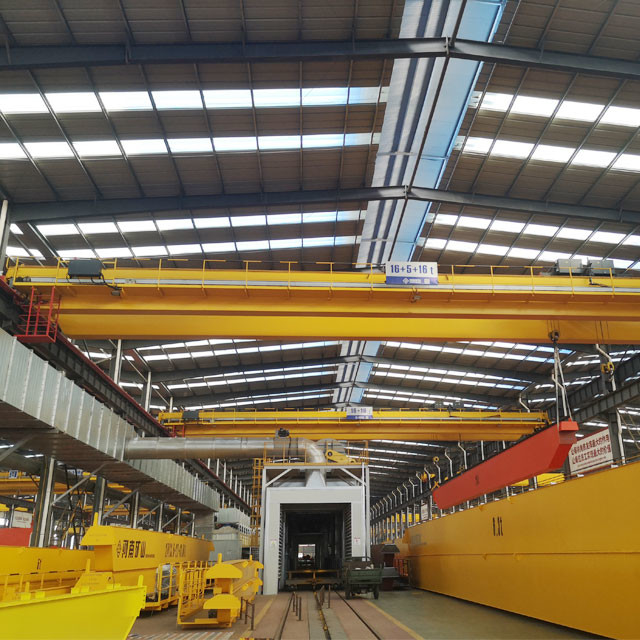

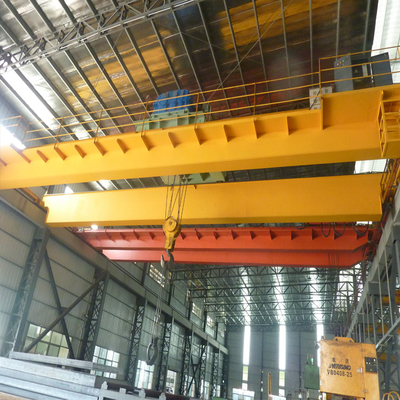

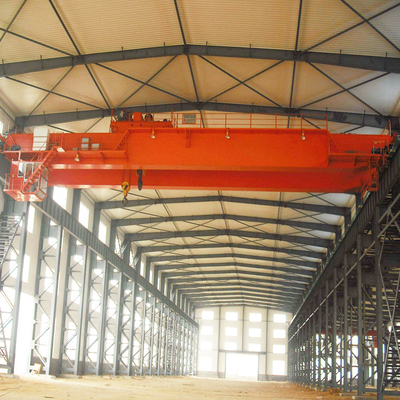

Product Details Images
Control Method of Product
Three control method:Pendent line(included); Wireless remote control,Operation room
And the operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering has two ways, sideway enterance and end surface enterance, in order to satisfy the users' choice in different conditions.
Package and Delivery
FAQ
1, What's information should I provide to get the price?
More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.
2, Which kind crane can you provide?
Dowell Crane is a famous leading manufacturer with experienced designers, engineers and a 600- people R&D team to provide all kinds crane with customized parameters.
3, What services can you provide?
We have a complete pre-sales&after-sales service system, and our engineers are available overseas. And we also provide training for your crane operators.
4, Which brand are the accessories and electronic components in your cranes?
We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have world-leading processing machines which are imported from Japan and German.
5, Do you provide crane spare parts?
Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, enclosed busbar and so on.
