Product Details:
|
| Product Name: | Single Beam European Style Overhead Crane | Span: | 7.5-31.5 M |
|---|---|---|---|
| Capacity: | 1-50 Ton | Trolley Speed: | 20-40 M/min |
| Lifting Height: | 6-30 M | Working Temperature: | -25℃~40℃ |
| Color: | Customized | Working Class: | A3-A7 |

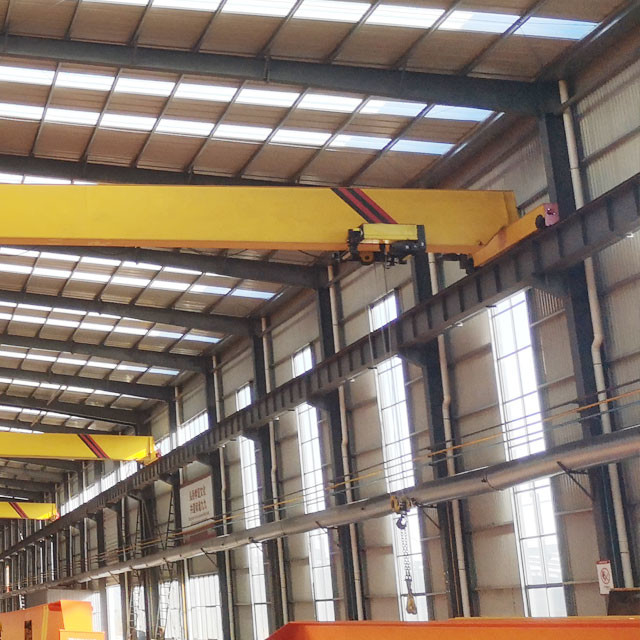

Hoisting Machine Electric Lifting Single Beam European Style Overhead Crane
Our Single Girder Eot Crane is a European type overhead crane, which is designed and manufactured with a single beam lifting crane and a single girder bridge crane. It is mainly used in industrial and mining enterprises, railway, electric power, shipbuilding, automobile and other industries for transportation and loading and unloading of goods. This crane has a trolley speed of 20-40 M/min, power supply of 3-Phase AC 380V/50Hz, working temperature of -25℃~40℃ and crane speed of 20-40 M/min. This Single Girder Eot Crane is reliable, safe and easy to operate. It can also be customized according to customers' requirements. It is an ideal choice for your lifting needs.
| Capacity | t | 1,2,3,5,10 | 16,20 | |
| Span | m | 7.5-22.5 | ||
| Lifting height | m | 6,9,12,18,24,30 | 12,18,24,30 | |
| Speed | Lifting | m/min | 8,8/0.8,7/07 | 3.5,3.5/0.35 |
| Cross travel | m/min | 20,30 | 20,30 | |
| Long travel | m/min | 20,30,45,60,75 | ||
| Electric hoist | type | CD/MD | CD/MD/HC | |
| Working duty | A3 | A3 | ||
| Power supply | AC | 380V/50HZ/3P | 380V/50HZ/3P | |
The Dowell Crane Single Girder Eot Crane is an European type overhead crane designed to lift loads of up to 50 tons. This European type Electric Bridge Crane is the perfect solution for industrial applications with its 7.5-31.5m span, 6-30m lifting height, 7-20m/min hoist speed, 20-40m/min crane speed, and 1-50 ton capacity. The Single Girder Eot Crane is certified by ISO, CE, BV, CCC, and GOST, and an order of at least one set is required for purchase. The Single Girder Eot Crane is available for USD 6000-12000 per set, and it is supplied with stretch film and plywood case outside of towable scissor lift. The delivery time is around 25 days, and payment terms include L/C, T/T. The Single Girder Eot Crane has a maximum supply capability of 10000 sets per year.
Our team of engineers will install and commission the Single Girder EOT Crane at your site, ensuring it is running to its exact specifications. We provide comprehensive training for your personnel, helping them to get the most out of the equipment.
We provide routine maintenance services for your Single Girder EOT Crane, including oil and filter changes, alignment checks, and replacement of worn parts. Our experienced technicians can quickly identify and repair any potential problems, reducing downtime.
We offer 24/7 technical support for your Single Girder EOT Crane. Our team of experienced engineers are available to answer your questions and troubleshoot any issues. If needed, we can also provide remote diagnostics and repairs.
Packaging and shipping for single girder EOT cranes are carefully designed to ensure that the crane reaches its destination in the best condition.
The crane is securely packaged in wooden boxes with plastic padding, corrugated paper, and foam to protect it from external shock and vibration. All of the components of the crane are also securely fastened together within the box.
The crane is shipped via sea freight, air freight, or trucking, depending on the destination. The crane is transported in a safe and secure manner to ensure that it arrives intact and in the best condition.
