Product Details:
|
| Product Name: | Shipping Container Crane | Working Duty: | A3-A7 |
|---|---|---|---|
| Crane Traveling Speed: | 20-30 M/min | Hoisting Mechanism: | Wire Rope |
| Capacity: | 1-100 Ton | Lifting Mechanism: | Hydraulic Lift |
| Color: | Customized | Control Way: | Radio Control+cabin Control |
Portal Lifting Tool Electric Shipping Container Crane With A3-A7 Duty
Shipping Container Crane is a type of gantry crane especially used for loading and unloading container in ports, freight yard and logistics center. It is designed with high safety and reliability, and can be customized to meet different working requirements. It is featured with a hydraulic lift, which is able to safely move containers with weight up to 100 Ton. The crane is able to withstand the extreme temperature between -20℃ to +40℃, and it is suitable for A3-A7 working duty. It is also equipped with advanced technologies such as rtg cranes and container gantry crane, ensuring the crane with maximum efficiency and safety.
| Model | LJ35/40-23 | LightType LJ40-23 |
| Capacity(under spreader) (t) | 35,40 | 40 |
| Work Duty | A7,A8 | A6,A7 |
| Span (m) | 23.47 | 23.47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 |
| Container Model | 20',40',45' | 20',40',45' |
| Spreader Rotating Angle | ±5° | ±5° |
| Hoisting Speed (m/min) | 13/26,23/52 | 12/18,18/28 |
| Cross Travel Speed (m/min) | 50,70 | 24 |
| Long Travel Speed (m/min) | Full Load-90,Without Load-130 | Full Load-20,Without Load-40 |
| Max.Wheel Load (kN) | 310 | 310 |
| Total Rating (kW) | 150,230 | 110,150 |
| Power Supply | Electric,Diesel engine,Electric-Diesel drive | |
Shipping Container Crane - Dowell Crane RTG

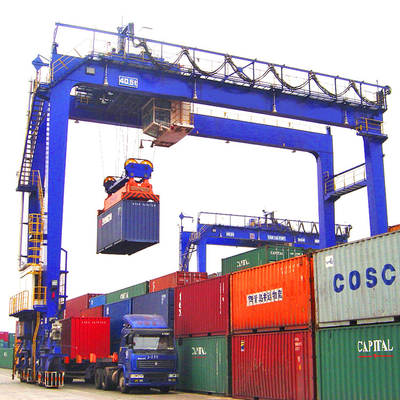

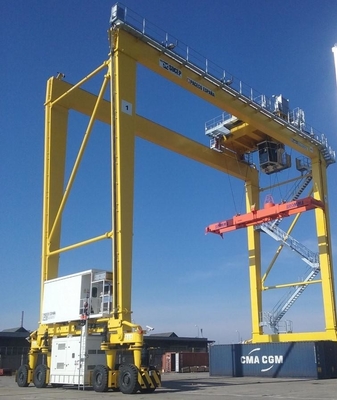

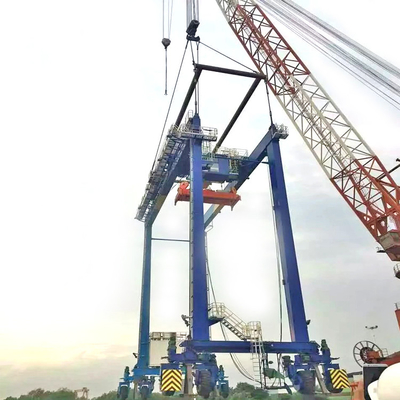

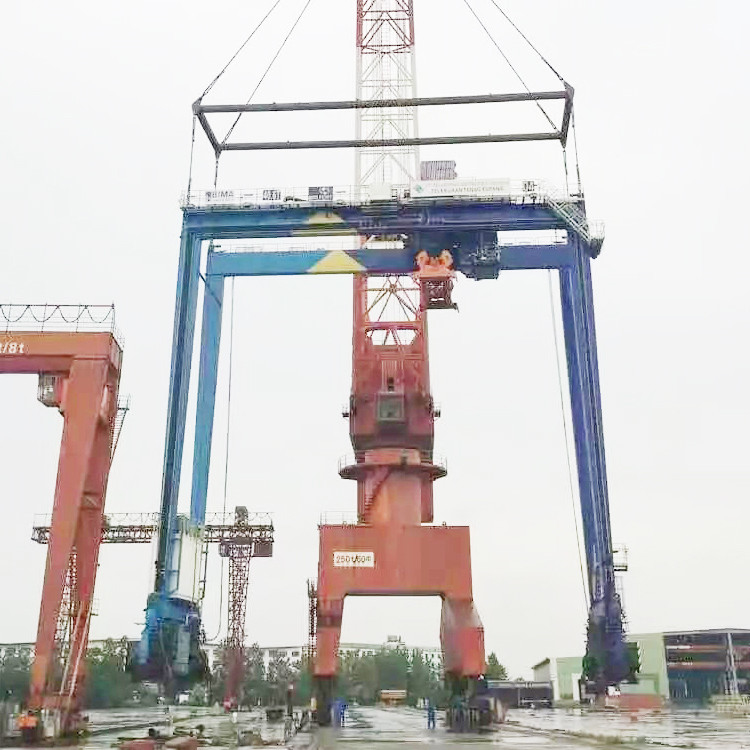

Dowell Crane RTG is a port rubber tyred gantry crane which is widely used in ports, quays, and yards for stacking and shifting containers. It is an ideal equipment for loading and unloading containers from trucks, railcars, or vessels. The RTG crane is designed with a hydraulic lift system, and it is able to move on rubber tyres, allowing for smooth and efficient container movement in the port. It features rubber-tyred gantry crane, radio control+cabin control, and it is capable of lifting up to 100 tons.
The RTG crane is certified with CE ISO and comes with a minimum order quantity of 1 set. It is available in a variety of colours and is able to function in temperatures ranging from -20℃~+40℃. The packaging details of the crane include wooden cases for electric parts and plastic woven cloth for other parts, helping to reduce abrasion during transport. Delivery time is 90 work days and payment terms are L/C or T/T. With a capacity of 5000 sets per year, Dowell Crane RTG is an ideal choice for container handling.
We offer a comprehensive technical support and service for our Shipping Container Cranes. Our experienced and knowledgeable team is available to answer any questions you may have and to provide guidance and advice on the installation and maintenance of your crane. We also provide a range of spare parts, so you can be confident that your crane will remain in optimal condition and provide reliable performance for many years.
Our technical support and service is available 24/7 by phone, email, or online chat. Our staff are dedicated to providing prompt and helpful responses to all your queries. We also have a range of online resources, such as manuals, FAQs, and videos, to help you get the most out of your crane.
If you ever experience any technical issues with your crane, we’ll be happy to help. Our experienced technicians can analyze the problem and provide a tailored solution that will get your crane back up and running quickly. We are committed to providing the highest level of customer service and satisfaction.
Packaging and Shipping for Shipping Container Crane:
A1: The Brand Name of the Shipping Container Crane is Dowell Crane.
A2: The Model Number of the Shipping Container Crane is RTG.
A3: The Shipping Container Crane is manufactured in China (Mainland).
A4: The Shipping Container Crane has CE and ISO certifications.
A5: The price of the Shipping Container Crane is 100000 usd for a Set.
