Product Details:
|
| Product Name: | Electric Hoist | Control Method: | Remote Control |
|---|---|---|---|
| Ambient Temperature: | -20℃~+40℃ | Usage: | Construction Hoist, Mining Hoist, Material Handling, Portable, Household |
| Lifting Capacity: | 0.5T~30T | Lifting Height: | 6-30m |
| Safety Device: | Overload Protection Device/Limit Switch | Lifting Speed: | 0.8/8M/Min |
Electric Hoist is a versatile lifting solution with a wide range of applications in the construction, mining, and material handling industries. It is also suitable for household use, with a capacity of 0.5 to 30 tons. It is equipped with an overload protection device and a limit switch to ensure safety during use. It also features wireless remote control, enabling users to accurately control the hoist with ease. Its lifting speed can reach up to 0.8/8m/min, making it an efficient and reliable tool for lifting heavy loads. With its high level of safety and convenience, Electric Hoist is an ideal choice when it comes to lifting tasks.
|

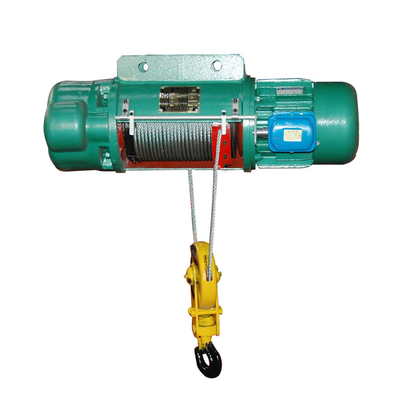

Very Popular Vertical Lifting Wire Rope Electric Cable Hoist Winch
|
||||||||
|
Model
|
CD/MD
0.25t
|
CD/MD
0.5t
|
CD/MD
1t
|
CD/MD
2t
|
CD/MD
3t
|
CD/MD
4t
|
CD/MD
5t
|
|
|
Lifting Weight
|
0.25
|
0.5
|
1
|
2
|
3
|
5
|
10
|
|
|
Lifting Height(m)
|
3-9
|
6-12
|
6-30
|
6-30
|
6-30
|
6-30
|
6-30
|
|
|
Lifting Speed(m/min)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
7(7/0.7)
|
|
|
Running Speed
|
20(30) m/min
|
|||||||
|
Wire Rope Model
|
6×19-3.6
|
6×37-4.8-180
|
6×37-7.4-180
|
6×37-11-155
|
6×37-13-170
|
6×37-15-200
|
6×37-15-200
|
|
|
I-beam Track Model
|
16-22b
|
16-28b
|
16-28b
|
20a-32c
|
20a-32c
|
25a-63c
|
28a-63c
|
|
|
Minimum radius of circular orbit(m)
|
0.8
|
1.5
|
1.5-4
|
2-4
|
2-4
|
2.5-5
|
3.5-9
|
|
|
Lifting Motor
|
Motor
|
ZD12-4
|
ZD21-4
|
ZD22-4
|
ZD31-4
|
ZD41-4
|
ZD41-4
|
ZD51-4
|
|
ZDS0.2/1.5
|
ZDS0.2/1.5
|
ZDS0.4/3
|
ZDS0.4/4.5
|
ZDS0.8/7.5
|
ZDS1.5/13
|
|||
|
Capacity
|
0.4
|
0.8 0.2/0.8
|
1.5 0.2/1.5
|
3 0.4/3
|
4.5 0.4/4.5
|
7.5 0.8/7.5
|
13 1.5/13
|
|
|
rotation rate
|
1380
|
1380
|
1380
|
1380
|
1380
|
1400
|
1400
|
|
|
Power supply
|
3P 380V 50HZ
|
|||||||
Dowell Crane Electric Hoist is a reliable lifting solution for a variety of heavy-duty applications. Featuring a brand name of Dowell Crane, model number CD MD, and CE ISO certification, this electric hoist is designed with overload protection device/limit switch and 0.5T-30T lifting capacity. It also offers a wide variety of wireless remote control hoists in order to ensure safe and efficient lifting operation. The minimum order quantity is one set, while the price range is US$ 350.00-US$ 6,450.00. This electric hoist has a wide range of operating temperatures, -20℃~+40℃ ambient temperature, and is suitable for crane using.
Dowell Crane Electric Hoist is also highly reliable with its water-proof film motor packing and high quality plywood box spare parts packing. Moreover, the delivery time is 15 days, and payment terms are L/C, T/T, and Western Union. The supply ability is 200 sets per month, and after-sales service is available with engineers available to service machinery overseas, field maintenance and repair service, and free spare parts. With all these features, Dowell Crane Electric Hoist is an ideal choice for a variety of heavy-duty applications, such as electric wire rope hoist and wireless remote control hoist.
The electric hoist should be packed with appropriate packaging materials to ensure the item is adequately protected during shipping, handling and storage. Generally, the packaging should include bubble wrap or foam and a sturdy cardboard box.
To ensure the safe arrival of the electric hoist, it is recommended to wrap the item with bubble wrap and/or foam and place it in a sturdy cardboard box. The box should be sealed securely with packing tape, and it should be labeled with the appropriate shipping information.
The electric hoist should be shipped with a reliable carrier to ensure it arrives on time and in good condition. It is recommended to choose a carrier with tracking and insurance services.
