Product Details:
|
| Warranty: | 3 Years | Safety Device: | Overload Limiter, Emergency Stop Button |
|---|---|---|---|
| Power Source: | 3-phase A.C. 50Hz 380V | Color: | Customized |
| Capacity: | 50-500 Tons | Condition: | New |
| Feature: | Gantry Crane | Application: | Port,shipyard |

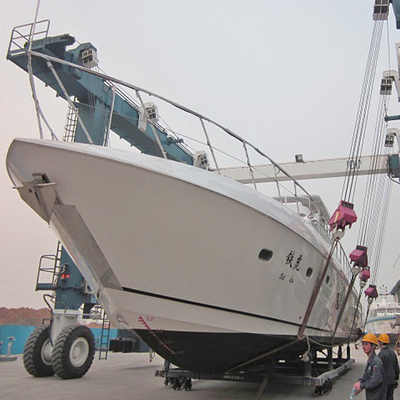

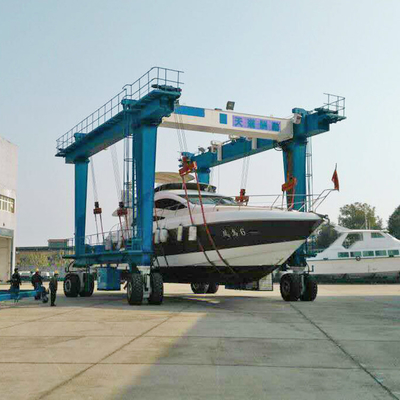

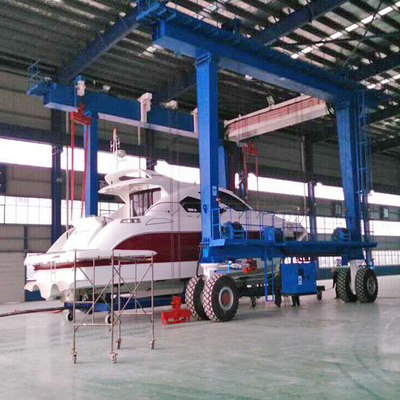

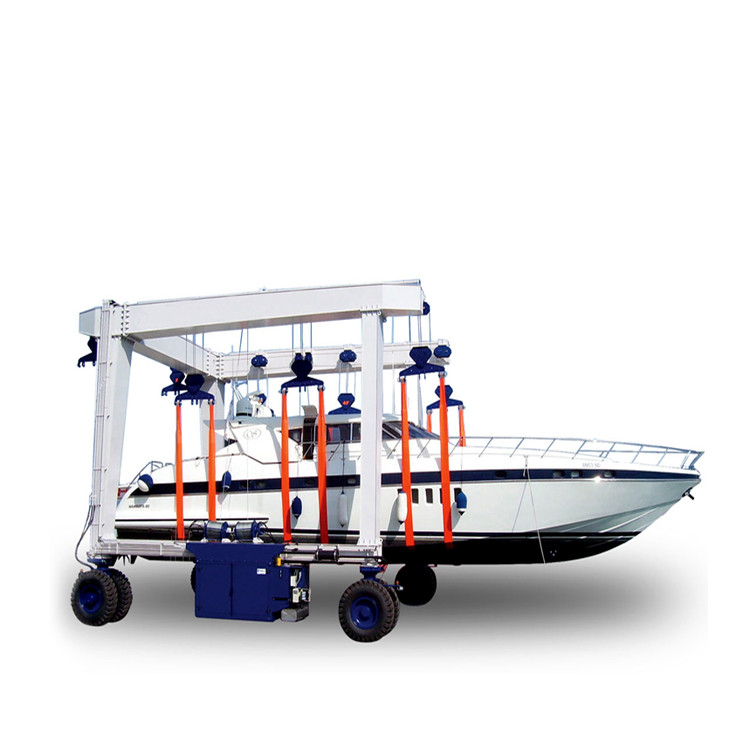

Hot Selling Heavy Duty 100t To 800t Boat Lifting Double Girder Gantry Crane
Product Description:
Harbour Portal Crane is an ideal marine travel lift and Marina Boat Handling Equipment designed to meet the requirements of port and shipyard use, with outstanding performance and reliable safety standard. This marine travel lift crane is powered by 3-phase A.C. 50Hz 380V for efficient and reliable operation. It is also equipped with advanced overload limiter and emergency stop button to ensure the safety of operation. The color can be customized according to customer's demand. Harbour Portal Crane is a great choice for marine travel lift and Marina Boat Handling Equipment.
Technical Parameters:
|
Rated load capacity
|
100 ton
|
150 ton
|
200 ton
|
300 ton
|
|
ground pressure (kg/cm2)
|
11.5
|
11
|
11.5
|
6.5
|
|
Grade abillity
|
2%
|
4%
|
4%
|
4%
|
|
lifting speed - full load (m/min)
|
0~2
|
0~1
|
0~2
|
0~1
|
|
lifting speed -non load (m/min)
|
0~5
|
0~4
|
0~3
|
0~3
|
|
runnning speed ,full load (m/min)
|
0~20
|
0~20
|
0~20
|
0~20
|
|
running speed , non load (m/min)
|
0~35
|
0~35
|
0~35
|
0~35
|
|
working Ambient temperature
|
-20°C~+50°C
|
-20°C~+50°C
|
-20°C~+50°C
|
-20°C~+50°C
|
Travel Lift Crane Drawings
Applications:
Dowell Crane's MBH Harbour Portal Crane is the ideal solution for marine travel lift needs. With a power source of 3-phase A.C. 50Hz 380V, it is designed for A7-A8 working duty, and features a gantry crane for maximum efficiency. It is highly reliable and durable, and has a minimum order quantity of 1 set. It is also certified by CE ISO, and comes with a price range of $98000-780000 per set. Packaging is also provided, with the main body packaged by high quality water-proof plastic woven cloths and spare parts packed in high quality plywood box. Delivery time is within 45-90 working days, and payment terms are available via L/C, T/T, Western Union. With a maximum supply ability of 300 sets per year, the Mobile Boat Hoist can be used for a variety of purposes.
Support and Services:
Harbour Portal Crane provides comprehensive technical support and service to ensure your crane is running efficiently and reliably.
We offer a range of services, including:
We provide technical support and service for all Harbour Portal Cranes, including both new and used cranes.
If you need any support or service for your Harbour Portal Crane, please get in touch with us today.
Packing and Shipping:
The Harbour Portal Crane is shipped in a strong, sturdy wooden crate to ensure that it arrives at its destination in perfect condition. It is secured with a combination of foam blocks, cardboard, and wooden spacers to minimize movement during transportation. The crane is also protected with a waterproof cover to prevent any damage from the elements during shipping.
