Product Details:
|
| Span: | 10.5-31.5m | Lifting Height: | 5~30M Or Customized |
|---|---|---|---|
| Lifting Speed: | 5-15M/MIN | Trolley Travelling: | 30m/min |
| Working System: | A3-A5 | Electric Protection: | IP54,IP55 |
| Voltage: | 3PH AC 220--440 V | Main Electrical Parts: | International Famous Brand |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Marketing Type: | New Product 2021 |
| Color: | Customized | Condition: | New |
| High Light: | Overhead Bridge Crane 30m/min,50 ton Overhead Bridge Crane,Overhead Bridge Crane For Warehouse |
||
Heavy Capacity Customized Double Girder 50 ton Overhead Crane
50 ton Overhead Crane Description
Double girder overhead crane is used in workshop, warehouse and yard to loading unloading and material handling works. An overhead crane consists of parallel runways with a traveling bridge spanning the gap. A hoist, the lifting component of a crane, travels along the bridge. Usually there are include many kinds of types crane, firstly it was divided into single girder and double girder overhead crane. There are included normal type, european type, magnetic crane, grab crane, explosion proof crane, and so on. According to the different using environment and different application. We will choose the most suitable crane for customer. According to the frequency of use, it can be divided into three working levels: A5, A6 and A7.
Technical Data Sheet
|
Heavy Capacity Customized Double Girder 50 ton Overhead Crane |
|||||||||||||||||||
|
Lifting capacity |
t |
50/10 |
50/10 |
||||||||||||||||
|
Working level |
A5 |
A6 |
|||||||||||||||||
|
Span |
m |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
28.5 |
31.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
28.5 |
31.5 |
||
|
Weight |
t |
31.6 |
34.2 |
37.2 |
40.6 |
44.5 |
49.0 |
55.2 |
61.4 |
32.2 |
34.9 |
37.8 |
41.2 |
45.1 |
49.9 |
56.1 |
62.3 |
||
|
Maximum wheel pressure |
KN |
347 |
368 |
372 |
395 |
415 |
426 |
450 |
470 |
354 |
375 |
393 |
409 |
423 |
440 |
459 |
478 |
||
|
Speed |
Operation |
m/min |
73 |
87 |
|||||||||||||||
|
Crab running |
38.5 |
38.5 |
|||||||||||||||||
|
Lift |
6.8 |
8.5 |
|||||||||||||||||
|
Deputy lift |
13.2 |
13.2 |
|||||||||||||||||

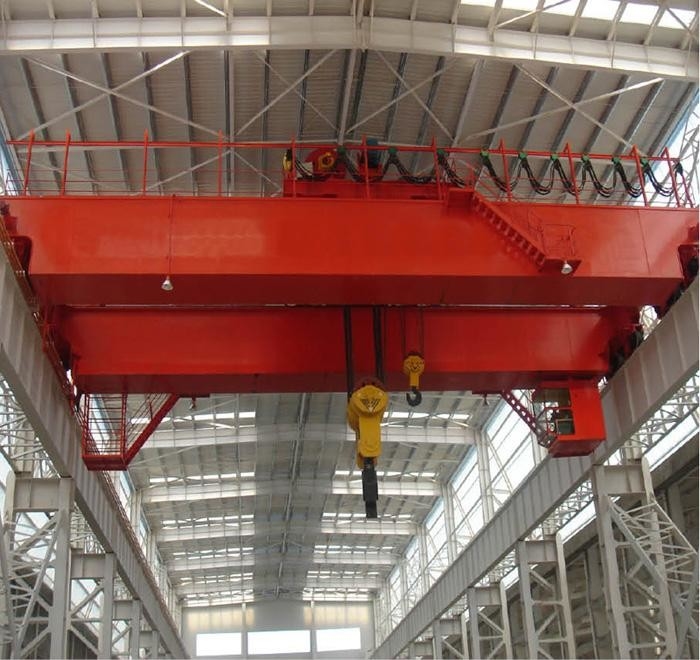

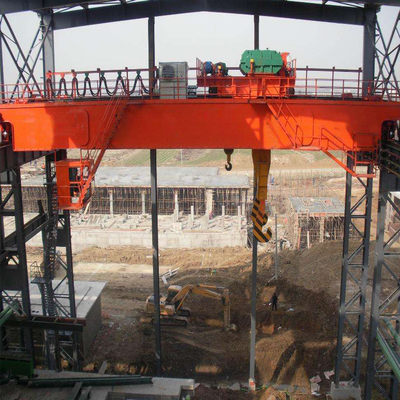

Details Images
Features of 50 ton Overhead Crane
Package and Delivery
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source other specials
you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type of work in a hazardous environment?
A: Sure! We can customize for you, acid proof or explosion-proof,
no problem with that.
Q. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
