Product Details:
|
| Product Name: | 10 Ton Electric Chain Hoist | Sling Type: | Chain |
|---|---|---|---|
| Lift Speed: | 1.1-7.2m/min | Power Supply: | 380V 50Hz Or On Request |
| Maximum Lifting Height: | 30m | Type: | Stationary Or Moveable |
| Condition: | New | Usage: | Construction Hoist,Mining Hoist,Material Handling,portable |
| Color: | Customised | Warranty: | 3 YEAR |
| High Light: | portable Electric Chain Hoist,10 Ton Electric Chain Hoist,Stationary Electric Chain Hoist 1.1m/min |
||
Factory Directly Supply High Quality 10 Ton Electric Chain Hoist for Sale
10 Ton Electric Chain Hoist Description:
Electric chain hoist is a light and small lifting equipment. Electric chain hoist has high working level, good safety performance, high reliability and low failure rate. The chain of electric chain hoist runs in sprockets, which is not easy to fall off or jump jobs, and is more stable in use. The lifting capacity of electric chain hoist is 0.5-35 tons and its working class is M3 or M4.
10 Ton Electric Chain Hoist Drawing:
10 Ton Electric Chain Hoist Specification Data:
| Electric chain hoist | ||||
| Type | 01001SF | 01002SF | 01001DF | |
| Capacity(t) | 1 | 1 | 1 | |
| Standard Lifting Height(m) | 3 | 3 | 3 | |
| Lifting Speed(m) | 6.8 | 3.3 | 6.8/3.4 | |
| Lifting Motor | Power(kw) | 1.5 | 0.75 | 1.8/0.6 |
| Rotation Speed(r/min) | 1440 | 1440 | 2890/980 | |
| Phases | 3 | 3 | 3 | |
| Voltage(v) | 200-440 | 200-440 | 200-440 | |
| Frequency(Hz) | 50 | 50 | 50 | |
| Chain Turns | 1 | 2 | 1 | |
| Chain Specification | Ø7.1 | Ø6.3 | Ø7.1 | |
| Test Load(t) | 1.25 | 1.25 | 1.25 | |
| I-Beam(mm) | 82-178 | 82-178 | 82-178 | |
| Weight Added with 1m Higher(kg) | 1.1 | 1.62 | 1.1 | |

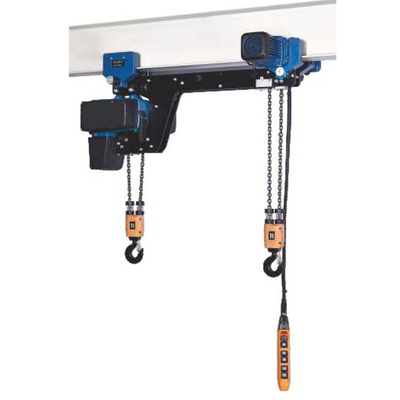

10 Ton Electric Chain Hoist Detailed Images:
10 Ton Electric Chain Hoist Features
Packing and Delicery:
Notice:
