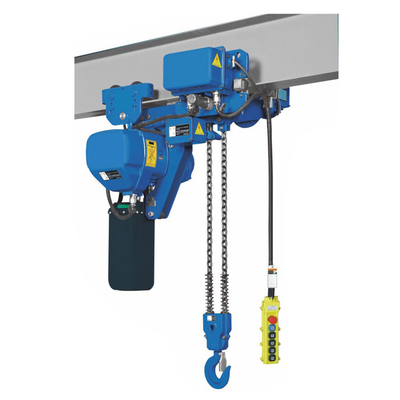

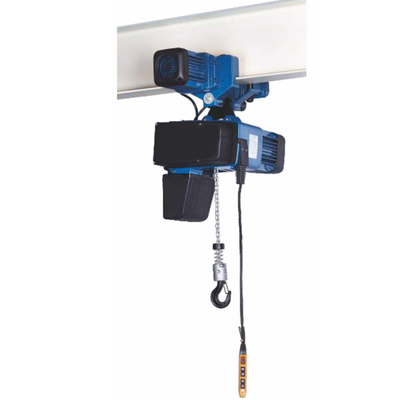

China Supplier Light Weight 1.5 ton Electric Chain Hoist 380V

China Supplier Light Weight 1.5 ton Electric Chain Hoist 380V
China Supplier Light Weight 1.5 ton Electric Chain Hoist 380V
China Supplier Light Weight 1.5 ton Electric Chain Hoist 380V China Supplier Light Weight 1.5 ton Electric Chain Hoist 380V China Supplier Light Weight 1.5 ton Electric Chain Hoist 380V China Supplier Light Weight 1.5 ton Electric Chain Hoist 380V

Large Image :  China Supplier Light Weight 1.5 ton Electric Chain Hoist 380V

Product Details:
Place of Origin: China
Brand Name: DOWELL
Certification: CE ISO
Model Number: HBBD
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD 270-4200 /Set
Packaging Details: Packed by high quality wooden box
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 SET/ YEAR

China Supplier Light Weight 1.5 ton Electric Chain Hoist 380V

Description
Product Name: 1.5 Ton Electric Chain Hoist Sling Type: Chain
Motor: Nanjing Special Motor Power Supply: 380V 50Hz Or On Request
Maximum Lifting Height: 30m Type: Stationary Or Moveable
Condition: New Usage: Construction Hoist,Mining Hoist,Material Handling,portable
Color: Customised Warranty: 3 YEAR

China Supplier Light Weight 1.5 ton Electric Chain Hoist 380V



1.5 ton Electric Chain Hoist Description:



The Electric Chain Hoist is based on the lifting unit of the chain hoist and the control unit. Thanks to the control unit which is rigidly connected to the load handling attachment, the operator only needs one hand to operate the hoist and guide the load. Further strengths includes: Convenient operation and load guidance with one hand, Simple replacement thanks to quick-change coupling, Suitable for right-hand and left-hand operation.



1.5 ton Electric Chain Hoist Drawing:



China Supplier Light Weight 1.5 ton Electric Chain Hoist 380V 0



1.5 ton Electric Chain Hoist Specification data:



1.5 ton Electric Chain Hoist
Rated load
Model
Lifting speed
Trolley speed
Chain model
Frequency
Voltage
Track(mm)
0.5T
0.5-01
7.2 m/min
11/1 m/min
Φ6.3
50/60 Hz
380V
75-125
1T
01-01
6.8 m/min
11/1 m/min
Φ7.1
50/60 Hz
380V
68-153
1T
01-02
3.6 m/min
11/1 m/min
Φ6.3
50/60 Hz
380V
68-153
2T
02-01
6.6 m/min
11/1 m/min
Φ10.0
50/60 Hz
380V
82-178
2T
02-02
3.4 m/min
11/1 m/min
Φ7.1
50/60 Hz
380V
82-178
3T
03-01
5.6 m/min
11/1 m/min
Φ11.2
50/60 Hz
380V
100-178
3T
03-02
3.3 m/min
11/1 m/min
Φ10
50/60 Hz
380V
100-178
3T
03-03
2.2 m/min
11/1 m/min
Φ7.1
50/60 Hz
380V
100-178
5T
05-02
2.8 m/min
11/1 m/min
Φ11.2
50/60 Hz
380V
112-178
7.5T
7.5-03
1.8 m/min
11/1 m/min
Φ11.2
50/60 Hz
380V
112-178
10T
10-04
2.8 m/min
11/1 m/min
Φ11.2
50/60 Hz
380V
112-178



Detailed Images:

1 Ton 2 Ton 3 Ton 5 Ton Electric Chain Hoist For Sale



Structure and Characteristics of 1.5 ton Electric Chain Hoist



  1. shell:Light aluminum alloy shell shall be adopfed which is light but hard and fit for the use in the femible work environment with a high heat dissipation rate and all tightness design.
  2. Inverse phase sequnce protecting device:If is the special electrical installation which control the circuit not to work in case of wiring error in the power supply
  3. Limit switch:The limit swifch device is installed where the weight is lifted on and off to make the motor to stop aufomatically so as to prohibit the chains from exceeding for safety.
  4. 24v/36v device;It is used to prohibit the emergencies from occurring in case of the leakage in the swifch
  5. Side magnetic braking device:This device shall realize the instant brake in case of te power dump
  6. Chain bag:It shall be light ,handsome and durable.
  7. Chain:The chain shall adopt the imprted fec80 ultra heat-treatable steel alloy chain.



Electric Chian Hoist Features

  1. Advanced structure
  2. Small volume
  3. Light weight
  4. Reliable performance
  5. Easy to operate
  6. Wide range of applications



Packing and Delicery:



  • Hoist parts are packed by high quality plywood crate, to reduce distortion in conveying.
  • Transport ways are based on reducing costs & keep safety.



FAQ



Q1.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult

Q2. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.

Q4. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.

Q5. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q8. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
