Product Details:
|
| Product Name: | European Type Single Girder Bridge Crane | Condition: | New |
|---|---|---|---|
| Span: | 7.5~31m | Color: | Clients' Requirments |
| Power Source: | 3 Phase 380V 50hz | Application: | Factory. Widly Used |
| Warranty: | 2 Years | Feature: | Bridge Crane |
| High Light: | Iso European Single Girder Bridge Crane,50hz Single Girder Bridge Crane,Single Girder 380V Bridge Crane |
||

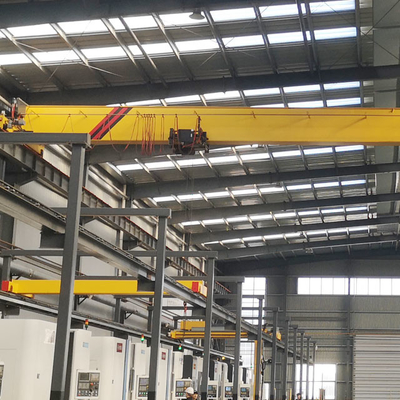

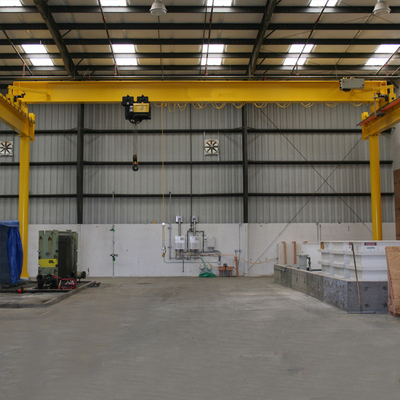

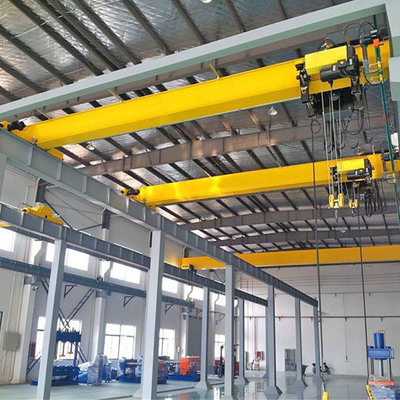

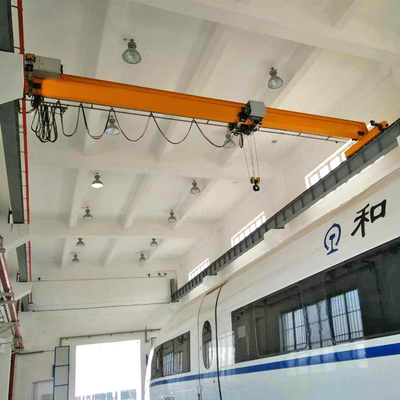

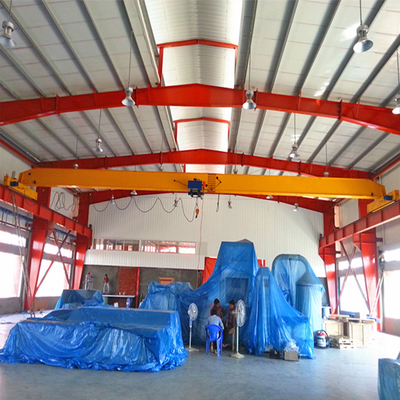

European Type Single Girder Bridge Crane With Ce Iso Certificate
European Type Single Girder Bridge Crane
European Type Single Girder Bridge Crane is a type of overhead crane designed and manufactured based on European standards and modern engineering principles. These cranes are known for their high efficiency, lightweight design, and reliable performance.
Components of European Type Single Girder Bridge Crane
Main Girder: The primary horizontal beam that spans the width of the crane, supporting the trolley and hoist.
End Carriages: These support the main girder and allow the crane to move along the runway rails.
Trolley and Hoist: The trolley travels along the main girder, and the hoist is used to lift, lower and move loads.
Controls: The crane can be operated using a pendant, wireless remote control, or a cabin.
Key Features of European Type Single Girder Bridge Crane
Lightweight Design: The crane is designed to be lightweight, which reduces the loads on the building structure, thus reducing construction costs.
High Efficiency: The European Type Single Girder Bridge Crane has a compact design that allows for a larger working area and reduced dead space.
Safety Features: The crane is equipped with various safety features, such as overload protection, anti-sway control, and emergency stop systems.
Low Maintenance: The modular design and high-quality components contribute to lower maintenance requirements and reduced downtime.
Specifications
Lifting Capacity: The crane can handle loads ranging from 1 to 20 tons (or even more, depending on the specific requirements).
Span: The span of the main girder can be customized based on the needs of the facility, typically ranging from 10 to 40 meters.
Lifting Height: The lifting height can also be customized, usually ranging from 6 to 30 meters.
Working Class: European Type Single Girder Bridge Cranes are designed for different working classes, such as A5, A6, or A7, depending on the intensity of use and the environment.
Applications
European Type Single Girder Bridge Cranes are widely used in various industries, such as:
Parameters of European Type Single Girder Bridge Crane
| Model No | CXTS |
| Type | European type single girder bridge crane |
| Load Capacity(t) | 1-10t |
| Lifting Height(m) | 3-35m, or customized |
| Span(m) | 7.5-31.5m,or customized |
| Travel Rail | P24-P43 |
| Long Traveling speed | 3-30M/Min,customized |
| Cross Traveling speed | 2--20M/Min,customized |
| Working Class | A3-A6 |
| Electric hoist type | European Hoist,CD Hoist,Chain Hoist |
| Origin | Henan,China |
| Working temperature | -20℃-45℃ |
| Way to control | Cabin, pendant push button.wireless remote, |
| Safety device | Buffer,current overload protection,overload device,power failure protection |
