|Lifting Speed:||5-15M/MIN||Trolley Running Speed:||20-40M/MIN|
|Working System:||A3-A7||Control Method:||Cabin Control/wire Rope Remote Control|
|Power Source:||3 Phase 380V 50hz Or Request||Color:||Optional|
overhead lifting equipment,
travelling bridge crane

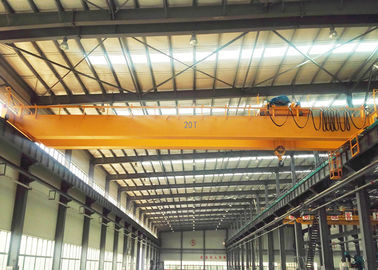

30ton high speed workshop electric hook double beam bridge crane
bridge crane is a type of crane found in industrial environments. The bridge crane consists of parallel runways with a traveling bridge spanning the gap. A hoist, the lifting component of a crane, travels along the bridge.
In many instances the cost of a bridge crane can be largely offset with savings from not renting mobile cranes in the construction of a facility that uses a lot of heavy process equipment.
overhead crane can be used to lift loads from 5 tons to 350 tons, which is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.
overhead crane mainly consists of bridge, trolley travelling mechanism, trolley and electrical appliances. They are applicable to the transfer, assembly, check and repair as well as load and unload at mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouse, goods yard and power station. They can also be used instead of common double-girder overhead crane at production workshop in light textiles or food industry. It has two kinds of classification, that is, light and medium. The working ambient temperature is generally -25℃~40℃.It is forbidden to work in environment with combustible, explosive or corrosive media.
overhead crane has two operating methods, namely, on floor and in the driver’s cabin, have been designed for such kind of crane. The cabin is divided into open-style and closed style. The cabin can be installed on the left or right according to actual conditions The operator can enter the cabin from one side, rear or top, which depends on the different user’s requirements.
|Working environment temperture||°C||-25~40|
|Power source||three-Phase A C 50HZ 380V|
The details show of bridge crane:
