Customized Single Girder Eot Crane Monorail 5 Ton Low Noise

Customized Single Girder Eot Crane Monorail 5 Ton Low Noise
Customized Single Girder Eot Crane Monorail 5 Ton Low Noise
Customized Single Girder Eot Crane Monorail 5 Ton Low Noise Customized Single Girder Eot Crane Monorail 5 Ton Low Noise Customized Single Girder Eot Crane Monorail 5 Ton Low Noise

Large Image :  Customized Single Girder Eot Crane Monorail 5 Ton Low Noise

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST
Model Number: EOT European Style Overhead Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 6000-12000 /Set
Packaging Details: Stretch Film & Plywood Case outside of Towable Scissor Lift
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 10000 Sets per Year

Customized Single Girder Eot Crane Monorail 5 Ton Low Noise

Description
Product Name: 5 Ton Single Girder Monorail Eot Crane Supplier Voltage: 220v /380v /415v
Color: Customized Feature: Easy Operation Safety Convenience,Customized According To Customer Requirements,Low Noise
Warranty: 3 Years After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support
High Light:

Customized Single Girder Eot Crane

,

5 Ton single girder eot crane

,

single girder monorail eot crane

5 ton single girder monorail eot crane supplier

Product Description

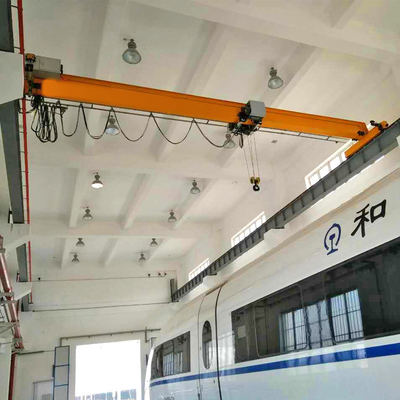

Eot Overhead Bridge Crane is consisting of the beam, electric hoist, long travelling mechanism, cabin or hand controller,and electrical control system. The electric hoist.can move horizontally on the rail fitted under a beam.This type crane holds many characters of light structure, easy to install and maintain, which is typically used for either manufacturing or maintenance applications, where efficiency or downtime are critical factors, for instance, plants, warehouses, or material stocks. The beam adopts the whole type without welding, which structure is more reasonable and reliable. Cabin, radio controller or hand controller can be used for operating.



Product Drawing

Customized Single Girder Eot Crane Monorail 5 Ton Low Noise 0



Product Parameters



Lifting Capacity T 1t 2t 3t 5t 10t 16t 20t
Span m 7.5~22.5m 7.5~31.5
Speed Lifting MD1 hoist m/min 8/0.8 (7/0.7) 3.5/0.35
CD1 hoist 8 (7) 3.5
Traveling of electric hoist 20 20
Traveling of cable trolley crane 20/30 20/30
Wheel diameter Φ270 Φ370
Width of trail 37~70mm 37~70mm
Operational Model remote control; ground handle remote control; ground handle
Working Duty A3
Power Supply According to your demands According to your demands
We can design and manufacture all kinds of non-standard product according to your requirement






Product Main Features



  • Due to low headroom design, the crane height is greatly got reduced, can achieve higher lifting height under the same factory height.
  • Due to have optimizing design and low wheel pressure, the crane height is greatly got reduced, to achieve greater lifting capacity under the same strength of the plant.
  • Computer-optimised box sections for beams of overhead crane.
  • End carriages of torsionally rigid, welded box-section design.
  • To reduce the noise, crane is equipped with frequency conversion Three-In-One mechanism.
  • Based on different working environment, overload limiter, height limiter, Stroke limiter, photoelectric limiter areoffered.
  • Lifting capacity: 1~32 t, non-standard customized crane can be produced according to clients’ need



Safety Devices



  • Infrared anti-collision.
  • Reasonable structure,strong bearing capacity.

  • Alarm indicator.

  • Reducer anti-fall, anti-lock.

  • Outdoor hoist with a rain cover.

  • Low noise, soft starting and stopping.



Parts Of Crane



Customized Single Girder Eot Crane Monorail 5 Ton Low Noise 1
