20T Electric Wire Rope Hoist European Type For Lifting Heavy Goods

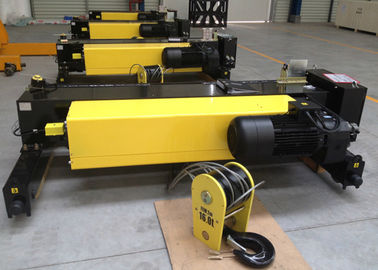

European Type 20 Ton Electric Wire Rope Hoist For Lifting Heavy Goods

Product Description

European type 20 ton electric wire rope hoist is a kind of new products developed with advanced design technology according to the latest national standard GB/T3811 "Design specifications for cranes", and refers to European FEM standard. The whole set of electric hoist is a new energy-saving and environment--friendly product whose technology is internationally advanced and cost performance is in the top among the same products.

Working class is M4~M7, and pulley group multiplying power is 2/1,4/1,4/2,6/1,8/1 and 8/2 etc.
Installation of electric hoist is classified into low building height single--track trolley type ( D model, applied single track and single-girder cranes), double--track trolley type (S model, applied to double--girder cranes), and fixed type ( G model). Traveling speed is 2~20m/min with stepless frequency conversion, and standard lifting speed 5/0.8m/min. Also frequency conversion is adopted to make the electric hoists steady lifting and braking, as well as lifted weights small swing. Precise positioning gets operation greatly improved.

Product parameters

1. Efficient high lifting speed,smooth low lifting speed, precise positioning.

2. Humanization design of control pendant,high tensile seamless twisting

sheath of control cable,optimize the operation to the utmost.

3. Novel design,compact structure.Higher Security and Reliability.

4. Brake and clutch ensure the safety under any circumstance,no slip under load.

5. IP54 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment.

6. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.

7. Low voltage contactor ensures the safe and reliable operation.

Parts Of Crane
