|Application:||Indoor||Model Number:||Europe Type|
|Working Duty:||A5~A8||Power Supply:||3 Phase AC 380V 50HZ|
industrial overhead crane,
travelling bridge crane

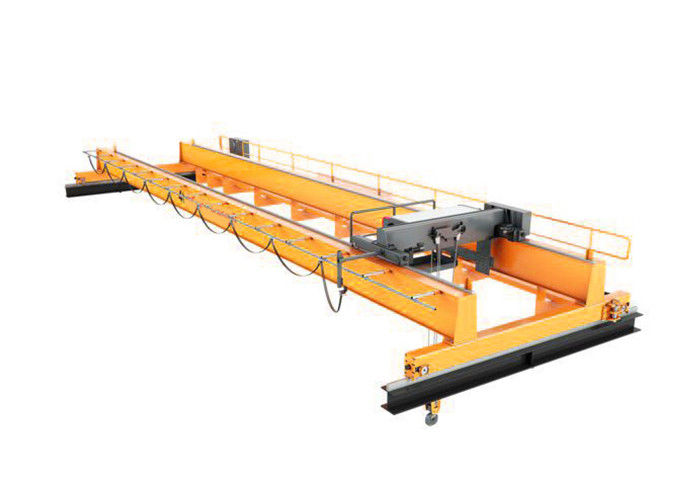

European Standard Double Girder Overhead Crane With Electric Trolley
1. Main Beam
The main traveling structure of the crane which spans the width of the bay and travels in a direction parallel to the runway. The bridge consists of two end trucks and one or two bridge girders depending on the equipment type. The bridge also supports the trolley and hoisting mechanism for up and down lifting of load.
2. End Trucks
Located on either side of the bridge, the end trucks house the wheels on which the entire crane travels. It is an assembly consisting of structural members, wheels, bearings, axles, etc., which supports the bridge girder(s) or the trolley cross member(s).
3. Bridge Girder
The principal horizontal beam of the crane bridge which supports the trolley and is supported by the end trucks.
The rails, beams, brackets and framework on which the crane operates.
5. Runway Rail
The rail supported by the runway beams on which the crane travels.
The hoist mechanism is a unit consisting of a motor drive, coupling, brakes, gearing, drum, ropes, and load block designed to raise, hold and lower the maximum rated load. Hoist mechanism is mounted to the trolley.
The unit carrying the hoisting mechanism which travels on the bridge rails in a direction at right angles to the crane runway. Trolley frame is the basic structure of the trolley on which are mounted the hoisting and traversing mechanisms.
8. Bumper (Buffer)
An energy absorbing device for reducing impact when a moving crane or trolley reaches the end of its permitted travel, or when two moving cranes or trolleys come into contact. This device may be attached to the bridge, trolley or runway stop.
