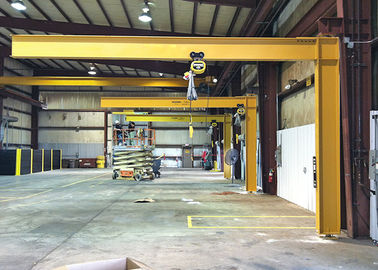

Fixed Column Slewing Rotate 5 Ton Mobile Crane Lifting Equipment For Workshop

Fixed Column Slewing Rotate 5 Ton Lifting Mobile Jib Crane For Workshop

Product Description

Fixed column slewing rotate 5 ton lifting mobile jib crane for workshop is a small and medium-speed lifting equipment developed recently. It has characteristics of unique structure, safe and reliable operation, high, efficiency, energy-saving, effort-saving and flexibility. It can be operated under three dimensional environment. It is superior in the cases of short distance, concentrated lifting. It is widely used at various sites for various trades .
Fixed column slewing rotate 5 ton lifting mobile jib crane for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects. Jib crane for hollow steel structure, light weight, big span, lifting weight, economy and durable.

Product Main Features

1. it is used for lifting 0.5t-5t stuff;
2. It has beautiful box-typed welded main girders. Computer optimized design for main girders with good performance and light weight;
3. Compact structure, light weight and high lifting height;
4. It's widely used in workshops, metallurgy, warehouses and assembly shops etc.

Product Mechanism

1. box-type shaped by wielding;
2. High quality carbon steel Q235B and Q345B;
3. the girder connected by high strength screws;
4. Welding seams are tested by X-ray and ultrasound;
5. Forged wheels;
6. Compact structure, small volume and light weight trolley;
7. Lifting mechanism is open type winch trolley;
8. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
9. Good operation performance, step less speed regulating and running smoothly.

Drawings Of Jib Crane
