Product Details:
|
| Travel Speed: | 15-30m/min | Brake: | Electric Motor Brake |
|---|---|---|---|
| Safety Features: | Warning Alarm And End Stop | Deck: | Flat Steel Deck |
| Power Supply: | Cable Reel, Battery, Bus Bar | Application: | Transport Cargos |
| Operation Type: | Remote | Product Name: | Transport Equipment Durable Motorized Flat Cart Transfer Cart |
| Color: | Customized | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Material: | Stainless Steel,Carbon Steel,Alloy Steel | ||
| High Light: | Rail Transfer Motorized Platform Carts,30m/Min Motorized Platform Carts,Remote Rail Transfer Cart |
||

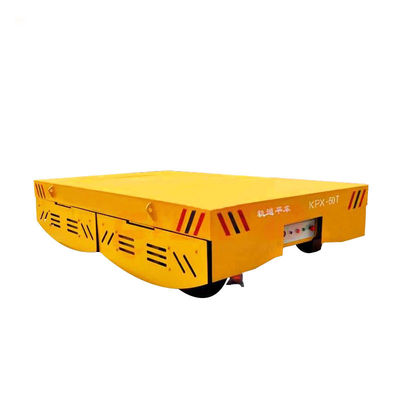

motorized platform carts electric mat
Motorized platform carts electric material handling industrial rail transfer cart powered by a battery,the battery is installed on the inside of the car,through the electric control system, the power supply provides power to the dc traction motor, making the flat car start, stop, advance, backward, speed regulation, etc.A new type of transfer transport equipment suitable for machine manufacture, automobile industry, heavy industry manufacturing, mold manufacturing, construction machinery, ship manufacturing, port yard, steel distribution, mining transportation, aerospace, military industry ,etc.Suitable for heavy duty, busyindustrial applications.
We can provide diffrent types of transfer cart, specific types as follow can be choosed.
|
Model: KPX-20T |
Capacity: 20T |
Table length: 4000mm |
Table width: 2200mm |
Table height: 550mm |
|
Wheel Base: 2800mm |
Rail inner Gauge: 1435mm |
Wheel Dia: ∅350mm |
Wheels Number: 4 |
Ground Clearance: 50mm |
|
Running Speed: 0-20m/min |
Power source: 2.2kw |
Motor power: 180Ah |
Battery Volatge: 48V |
Running Time when full load: 4H |
|
running distance: 4.8KM |
Wheel Load: 77.7KN |
Reference weight: 5.9T |
Recommend Rail type: P24 |
DOWELL CRANE engaged in crane industry 14 years, transfer cart is one of the hot sale products and we can introduce the advantages of transfer cart in details for your reference.
1. The derusting of steel plate reaches St2 level
2. Welding inspection3. Adopt ha, watt and lo bearings
4. Load bearing coefficient 125%
5. Table flatness error 2mm
6. Q235-af steel plate welding
7. Imported quality accessories
8. Surface sandblasting
9. Sandblasting for rust removal and anti-rust paint
10. Sandblasting for rust removal and anti-rust paint
Here show you the approximate EXW price of our product for your preview. This price just for reference for your budget, if any interest please click "More" to see detailed price sheet.
| EXW PRICE LIST FOR YOUR REFERENCE | ||
| Platform size | ||
| Load capacity | 2.5m*2m | 5m*2m |
| 3t | US$2,000.00 | US$2,800.00 |
| 5t | US$2,500.00 | US$3,500.00 |
| 10t | US$3,000.00 | US$4,200.00 |
| 15t | US$3,700.00 | US$5,180.00 |
| 20t | US$5,950.00 | US$8,350.00 |
| 30t | US$6,850.00 | US$9,550.00 |
| 50t | US$9,550.00 | US$13,350.00 |
This is our certifications, we can gnranteed the quality of products for customers.
