Product Details:
|
| Travel Speed: | 15-30m/min | Brake: | Electric Motor Brake |
|---|---|---|---|
| Safety Features: | Warning Alarm And End Stop | Deck: | Flat Steel Deck |
| Power Supply: | Cable Reel, Battery, Bus Bar | Application: | Transport Cargos |
| Operation Type: | Remote | Color: | Customized |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Material: | Stainless Steel,Carbon Steel,Alloy Steel |
| Control Method: | Pendent Or Remote | Customized Design: | Available |
| Free Quick Wear Parts: Avilable: | Avilable | Electrics Brand: | Chint, Siemens,Schneider And So On. |
| High Light: | Workshop Motorized Platform Cart,5T Motorized Platform Cart5T Motorized Platform Cart,Transport Cargos Motorized Platform Cart |
||

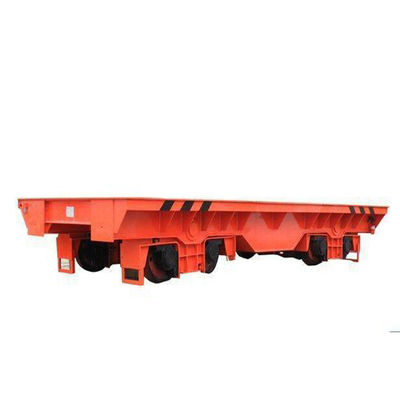

motorized platform cart workshop 5 ton electric industrial odm transfer cart
Product introduction
Motorized platform cart workshop 5 ton electric industrial odm transfer cart is also known as electric flat cart, which is a kind of electric rail transportation car that are widely used in factories and plants. Transfer cart is a rail type transportation vehicle, and users need to lay rail tracks on the ground that is generally H-shaped contact rail in advance. Battery transfer cart can work automatically under the motivation of electricity, which is a flat car that has no cover or steeling wheel.
We can provide diffrent types of transfer cart, specific types as follow can be choosed.
|
Model: KPX-20T |
Capacity: 20T |
Table length: 4000mm |
Table width: 2200mm |
Table height: 550mm |
|
Wheel Base: 2800mm |
Rail inner Gauge: 1435mm |
Wheel Dia: ∅350mm |
Wheels Number: 4 |
Ground Clearance: 50mm |
|
Running Speed: 0-20m/min |
Power source: 2.2kw |
Motor power: 180Ah |
Battery Volatge: 48V |
Running Time when full load: 4H |
|
running distance: 4.8KM |
Wheel Load: 77.7KN |
Reference weight: 5.9T |
Recommend Rail type: P24 |
Application
Product advantage
DOWELL CRANE engaged in crane industry 14 years, transfer cart is one of the hot sale products and we can introduce the advantages of transfer cart in details for your reference.
1. It has high a nti-explosion and a nti-high temperature performance.
2. Electric transfer cart has no strict requirement for the construction of the railway .
3. It has safe and flexible movement, which is also convenient to use.
4. The running speed of the electric transfer carts can be adjusted with actual situation.
Product packaging
Product Parameter
|
Modle
|
KPX-10T
|
KPX-30T
|
KPX-50T
|
KPX-80T
|
KPX-100T
|
KPX-150T
|
|
Table Size (m)
|
3.6*2.0*0.5
|
4.5*2.2*0.6
|
5.5*2.5*0.65
|
6.0*2.6*0.8
|
6.5*2.8*0.9
|
10*3.0*1.2
|
|
Power
|
Maintenance Free Battery
|
|||||
|
Rail inner Gauge
|
1435mm
|
1435mm
|
1435mm
|
1800mm
|
2000mm
|
2000mm
|
|
Wheel Dia.
|
350mm
|
400mm
|
500mm
|
600mm
|
600mm
|
600mm
|
|
Running Speed
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
|
Motor Power
|
1.6kw
|
3.5kw
|
5kw
|
8kw
|
10kw
|
15kw
|
|
Battery Capacity
|
180Ah
|
250Ah
|
330Ah
|
400Ah
|
440Ah
|
600Ah
|
|
Battery Volatge
|
48v
|
48v
|
48v
|
72v
|
72v
|
72v
|
|
Max Wheel Load
|
42.6Kn
|
110.4Kn
|
174Kn
|
278.4Kn
|
343.8Kn
|
265.2Kn
|
|
Reference weight
|
4.2t
|
6.8t
|
8t
|
12.8t
|
14.6t
|
26.8t
|
|
Recommend Rail
|
P24
|
P38
|
P43
|
P50
|
QU100
|
QU100
|
Payment Method
Here show you the approximate EXW price of our product for your preview. This price just for reference for your budget, if any interest please click "More" to see detailed price sheet.
| EXW PRICE LIST FOR YOUR REFERENCE | ||
| Platform size | ||
| Load capacity | 2.5m*2m | 5m*2m |
| 3t | US$2,000.00 | US$2,800.00 |
| 5t | US$2,500.00 | US$3,500.00 |
| 10t | US$3,000.00 | US$4,200.00 |
| 15t | US$3,700.00 | US$5,180.00 |
| 20t | US$5,950.00 | US$8,350.00 |
| 30t | US$6,850.00 | US$9,550.00 |
| 50t | US$9,550.00 |
US$13,350.00 |
Product details
Our company
This is our certifications, we can gnranteed the quality of products for customers.
MORE INFORMATION AND PRODUCTS YOU CAN GET BY OUR WEBSITE. 24/7 customer service
http://www.dowellcranecn.com/
Please inform us the following details while you send the inquiry:
1.What is the lifting capacity?
2.What is the span?
3.What is the lifting height?(Lifting height=Distance from hook to ground)
4.What is the lifting speed?(Single speed or double speed)
5.What control mode do you need?(Pendant control or remote control or cabin)
6.What is the power supply in your country?(Our standard power supply is 380V,3Ph,50Hz)
7.Is there any other special requirements?(Like need us to supply rails?how long? etc)
