Product Details:
|
| Travel Speed: | 15-30m/min | Payload Capacities: | Up To 200 Tons |
|---|---|---|---|
| Table Size: | 3000x1500mm | Power Supply: | AC. 380V, 50/60HZ, With Cable Winder |
| Load Size/Shape: | Customer Supplied | Brake: | Electric Motor Brake |
| Safety Features: | Warning Alarm And End Stop | Power Supply: | Cable Reel, Battery, Bus Bar |
| Material: | Stainless Steel,Carbon Steel,Alloy Steel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service |
| High Light: | 20t Electric Transfer Cart,Motorized Platform Cart 15m/Min,Q235 Motorized Platform Cart |
||

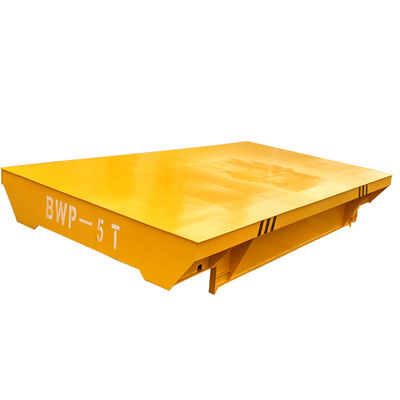

motorized platform cart odm transfer cart
Description:
motorized platform cart odm transfer cart is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
Attention:
Our transfer cart model main contains KPD, KPJ, KPTand KPX, If you are unsure as to what type of transfer cart will best serve your needs. Spending a few minutes now discussing the needs of your application could save you dollars in the future. According to your business needs, we will provides you with the most professional products ,our products are found in all sectors, with excellent craftsmanship and technical team, so we produce transfer cart applications in various industries have been widely used.
Specification:
| Model | KPJ-2t | KPJ-20t | KPJ-50t | KPJ-100t | KPJ-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Application
Adavantages:
DOWELL CRANE engaged in crane industry 14 years, transfer cart is one of the hot sale products and we can introduce the advantages of transfer cart in details for your reference.
1. The derusting of steel plate reaches St2 level
2. Welding inspection3. Adopt ha, watt and lo bearings
4. Load bearing coefficient 125%
5. Table flatness error 2mm
6. Q235-af steel plate welding
7. Imported quality accessories
8. Surface sandblasting
9. Sandblasting for rust removal and anti-rust paint
10. Sandblasting for rust removal and anti-rust paint
