32t Lifting Inversion Electric Hoist Overhead Crane Box Type

Certification
China Henan Dowell Crane Co., Ltd. certification
China Henan Dowell Crane Co., Ltd. certification
Customer Reviews
Our company is DOWELL's old customer, several years has ordered a double beam overhead crane and single beam bridge crane

—— Sedanur BAYDAR

I'm Online Chat Now

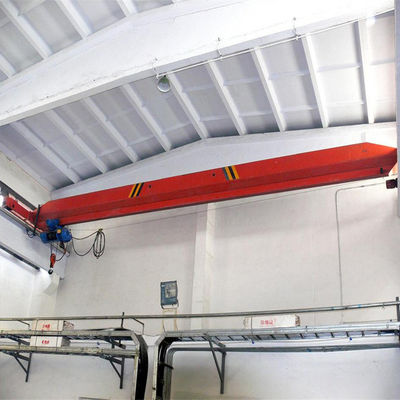

32t Lifting Inversion Electric Hoist Overhead Crane Box Type

32t Lifting Inversion Electric Hoist Overhead Crane Box Type
32t Lifting Inversion Electric Hoist Overhead Crane Box Type 32t Lifting Inversion Electric Hoist Overhead Crane Box Type 32t Lifting Inversion Electric Hoist Overhead Crane Box Type 32t Lifting Inversion Electric Hoist Overhead Crane Box Type 32t Lifting Inversion Electric Hoist Overhead Crane Box Type

Large Image :  32t Lifting Inversion Electric Hoist Overhead Crane Box Type

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: SGS IOS CE
Model Number: LDP Single Girder Overhead Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Sets per Year

32t Lifting Inversion Electric Hoist Overhead Crane Box Type

Description
Capacity: 1-20t Work Duty: A3-A5
Structure: Box Type Lifting Speed: 5-15M/MIN
Trolley Running Speed: 20-40M/MIN Crane Running Speed: 50-100M/MIN
Lifting Mechanism: Wire Rope Electric Hoist Power Supply: 110V/220V/230V/380V/440V
Core Components: Gearbox, Motor, Gear Control Method: Ground Control+ Remote Control (customized)
High Light:

32t Lifting Inversion Overhead Crane

,

A3 Box Type Overhead Crane

,

440V Box Type Overhead Crane

32t ce certificated lifting inversion electric hoist overhead crane

Product Description

32t ce certificated lifting inversion electric hoist overhead crane is designed as light type lifting equipment according to China standard. It is equipped with the features of reasonable structure,max.lifting height, strong rigidity of whole set. This crane equips with wire rope electric hoist to lift different cargoes, its capacity can vary 1-20ton and span 7.5-31.5m, working class A3-A4 according to ISO standard. The standard working environment temperature is from -20 to 40°C.
This kind of crane is widely used in factory, warehouse, stuff yard to lift goods, forbidden to use in flammable, explosive and corrosive environment. This single girder overhead crane is operated by pendent control or remote control.

Safe devices

1.Weight overload protection device
2.Top quality durable polyurethane buffer
3.Crane traveling limit switch
4.Low voltage protection function
5.Emergency stop system
6.Current overload protection function

Features

32t ce certificated lifting inversion electric hoist overhead crane can effectively save plant space and investment. The cost and unique structure of the walking are your best choice.
1.Higher working efficiency
2.Easy installation and operation
3.Good design, Strong rigidity
4.Smoothly moving, Effectively braking
5.low energy consumption, strong rigidity, light weight

 Inquiry notice ! ! !
If you want to inquire about our overhead crane , please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1. Lift capacity (3t 5t 10t or others) ?
2. Span (3m 5m 9m or others) ?
3. Lift height (Warehouse width) ?
4. Power supply in your local (380V/50HZ/3Phase or others) ?
5. Nearest port ?
6. What kind of goods will this crane lift ?

overhead crane parameters


Span
S(m)
7.5
10.5
13.5
16.5
19.5
22.5
25.5
28.5
Lifting height
m
9
9
9
9
9
9
9
9
Lifting speed
m/min
7
7
7
7
7
7
7
7
Trolley speed
m/min
20
20
20
20
20
20
20
20
Crane speed
m/min
20
20
20
20
20
20
20
20
Lifting motor
kw
13
13
13
13
13
13
13
13
Trolley motor
kw
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Total weight
t
3.26
3.76
4.4
5.17
5.92
7.48
9.71
14.05
Max Wheel Load
KN
51.3
55.3
58.4
61.3
63.9
68.2
74.2
85.4
Track

P24
P24
P24
P24
P24
P24
P24
P24
Main dimension
mm
7.5
10.5
13.5
16.5
19.5
22.5
25.5
28.5
Rail top to main top
H1
720
720
820
875
875
925
1100
1200
Rail top to hook centre
H2
1850
1850
1850
1900
1940
2000
1920
1920
Wheel base
W
2000
2000
2000
2500
2500
3000
3500
4000
Crane width
B
2500
2500
2500
3000
3000
3500
4000
4700
Hook left limitation
S1
1293
1293
1293
1293
1293
1293
1293
1293
Hook right limitation
S2
1893
1893
1893
1893
1893
1893
1893
1893
Main girder height
H3
900
900
1000
1100
1140
1250
1350
1450
Note: Control mode for ground operation.



If you have any other questions about overhead crane, please contact us now!
32t Lifting Inversion Electric Hoist Overhead Crane Box Type 0
Parts Of Crane

32t Lifting Inversion Electric Hoist Overhead Crane Box Type 1
32t Lifting Inversion Electric Hoist Overhead Crane Box Type 2
32t Lifting Inversion Electric Hoist Overhead Crane Box Type 3
32t Lifting Inversion Electric Hoist Overhead Crane Box Type 4
