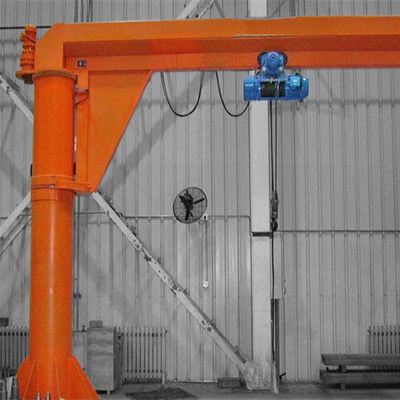

Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops

Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops
Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops
Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops

Large Image :  Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST SGS
Model Number: Jib Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Electrical parts are packed by high quality plywood crate,others are packed by plastic woven cloth.
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400 Set/Sets per Month

Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops

Description
Rotation Angle: 180 /270 /360/Customized Power Supply: 3 Phase 380V 50hz Or Request
Core Components: PLC, Bearing, Gear Applicable Industries: Garment Shops, Building Material Shops, Machinery
Machinery Test Report: Provided Condition: New
Warranty: 2 Years Color: Customized
Certification: CE
High Light:

Wire Rope Pulling Jib Crane

,

Electric Cantilever Crane

,

Automobile Industry Cantilever Crane

cantilever crane electric wire rope pulling jib crane​



Product Description



cantilever crane electric wire rope pulling jib crane is a light work-strength crane. It consists of a column, a swing arm slewing drive device and an electric hoist. It has a light weight, a large span and a large lifting capacity. The working strength of the cantilever crane is light. The crane is composed of a column, a slewing arm slewing drive device and an electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts, and the cycloida pin wheel deceleration device drives the cantilever to rotate. The electric hoist is on the cantilever.



Advantages



1.cantilever crane electric wire rope pulling jib crane is a new generation of light lifting equipment made to adapt to modern production. It is combined with high reliability electric chain hoist.

2.It is especially suitable for short distance, frequent use and intensive lifting operation. 3.It has the characteristics of high efficiency, energy saving, labor saving, small occupation area and easy operation and maintenance.


Application



Modern industry Production line, Assembly line of machining, Automobile industry, shipbuilding and Material lifting and warehouse, wharf, Laboratory.It`s an optimal lifting equipment for enterprise to improve work efficiency and working conditions.



Technical parameters



Item
Specifications
Capacity(T) 0.5-16
Valid radius(M) 4-5.5
Lifting height(M) 4.5/5
Hoisting speed(M/MIN) 0.8 / 8
Slewing speed(R/MIN) 0.5-20
Circulated speed(M/MIN) 20
Slewing angle(degree)
180°/270°/ 360°



Product details



Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops 0

motor driven electric Post jib Crane



Package & Delivery



Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops 2



Our company

Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops 3

Exhibition

Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops 4

After-sale Service



Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops 5





In order to save cost and time for you,we need your provide below information



1.Which kinds of jib crane crane do you need?

2.FOB or CIF price?(If CIF price, please advise your destination port)

3.Quantity?(set)

4.Lifting capacity?(ton)
5.Lifting height?(m) Send inquiry
6.Span?(m)

7.Which kind of material does it lift?
8.Working voltage?(V,HZ,Phase)
9.Working environment?(Where does the crane specific used?)
10.How many hours the crane works one day?
11.Any other requirement do you need?

Wire Rope Pulling Jib Crane Electric Cantilever Crane For Garment Shops 6
