Product Details:
|
| Cantilever Length: | 0-15m | Lifting Speed: | 5-15M/MIN |
|---|---|---|---|
| Trolley Running Speed: | 20-40M/MIN | Crane Running Speed: | 30-50M/MIN |
| Working Duty: | A3-A5 | Control Method: | Cabin Control/wire Rope Remote Control |
| High Light: | 5T Single Girder Gantry Crane,50M/Min Running Gantry Crane,A5 Single Girder Gantry Crane |
||

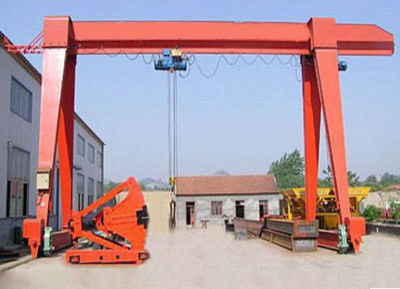

single girder workshop gantry crane price is a track travelling small and medium-sized crane. It consists of the door frame (girder, leg and the lower beam, etc.), electric hoist, crane operation
mechanism and electric control parts. The crane uses legs to support the bridge, and the electric hoist. The crane legs travel on fixed rails embedded in, or laid on top of the floor. If there are special
requirements for weight lifting and other parameters, we can customize them according to the user's needs.
1. It is used together with CD, MD and other models of electric hoist. The hoist runs on i-beam. Also can equipped with many lifting device for special work.
2. Working class is A3, there are two operating types , ground control and cabin control.
3. Power is supplied by cable or slide wire.
4. Application: widely used at open ground and warehouses to load, unload or grab materials.
5. Prohibition: lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.
| Lifting capacity | t | 5 | 10 | ||||
| Span | m | 16 | 21 | 28 | 16 | 21 | 28 |
| Max lifting height | m | 6/9 | 6/9 | ||||
| Working class | A3-A5 | ||||||
| Lifting speed | m/min | 8,8/0.8 | 8,8/0.8 | ||||
| Cross speed | m/min | 20 | 20 | ||||
| Long speed | m/min | 20/30 | 20/30 | ||||
| Weight | t |
16-24
|
19-28 | ||||
| Steel Track | kg/m | 43 | 43 | ||||
| Power supply | 3Phase AC 50Hz 380V | ||||||
Main Parts of MH model gantry Crane
1. Cut Down your cost in building of plant and workshop;
2. Improve your production efficiency;
3. Be suitable for indoor warehouse and outdoor usage;
4. Reduce daily maintenance;
5. Safety with high performance.
If you want to inquire about our gantry crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1. Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?
