Product Details:
|
| Span: | 7.8-31.5 M | Max. Lifting Height: | No Limited |
|---|---|---|---|
| Max. Lifting Load: | 50 Ton | Rated Lifting Moment: | As Per Requestment |
| Working System: | A5-A6 | Main Electrical Parts: | Siemens Or Schneider Brand |
| Control Mode: | Pendant Control, Remote Control, Cabin Control | Lifting Mechanism: | Electric Trolley |
| Core Components: | Engine, Bearing, Gearbox, Motor | Control Model: | Pendent Control , Wireless Remote Control.cabin Control |
| Color: | Customized | ||
| High Light: | 50T Double Girder Overhead Crane,A6 Double Girder Overhead Crane,Electric Trolley Overhead Bridge Crane |
||
*A crane that requires a high capacity, wide span, or high lifting height will benefit from a double girder design. Our ranges of double girder overhead travelling cranes extend up to 30t capacity and 30m span. We also degign and manufacture the nonstandard crane according user's demanding.

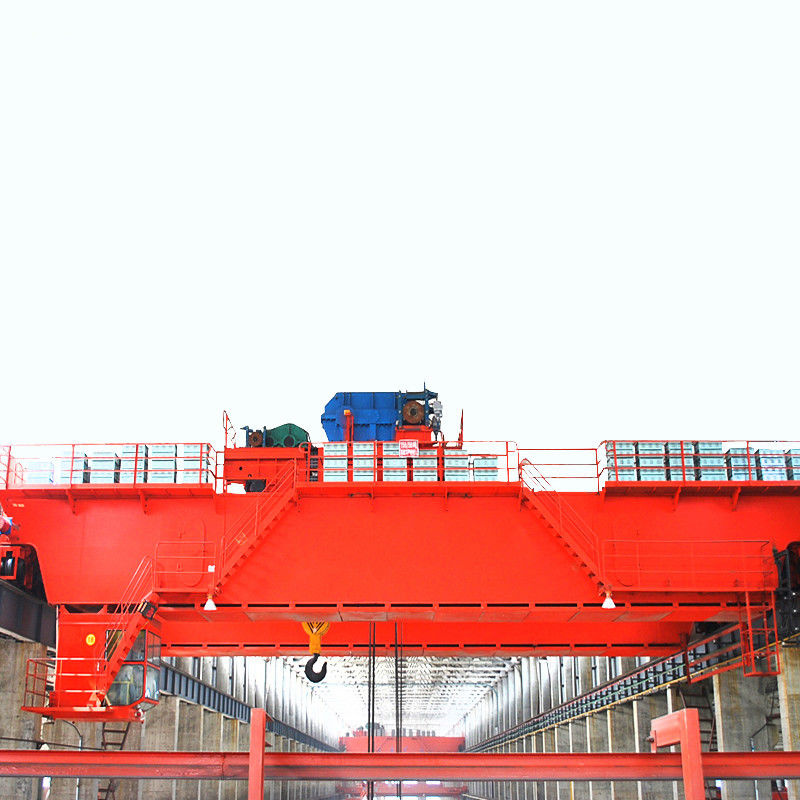

30 ton 50 ton double girder overhead crane
overhead crane description
QD 30 ton 50 ton double girder overhead crane is composed of box type bridge frame,lifting trolley, crane traveling mechanism, and electrical system. Double girder cranes can be either top running or under running in design. A top running double girder bridge crane will provide the most overhead room, as well as the greatest hook height.
Application
30 ton 50 ton double girder overhead crane are recommended for heavy-duty applications where the crane has to handle heavier capacities and longer spans. It is widely used in workshop,warehouse and yard to lift the materials.
Features and Advantages
1. Heavy Duty and High Efficient;
2. Long Life Span: 30-50years;
3. Easy for Installation and maintenance;
4. Reasonable structure and strong rigidity;
5. The speed can be frequency inverter speed control;
6. Control method is cabin control or remote control;
7. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
8. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe
Safety Devices
✔ Weight overload protective device
✔ Top quality polyurethane buffer
✔ Crane traveling limit switch and lifting limit switch
✔ Low voltage protection function
✔ Emergency stop system
Technical Data Sheet
|
Item
|
Unit
|
Result
|
|
Lifting capacity
|
ton
|
5-350ton
|
|
lifting height
|
H(m)
|
1-20m
|
|
Span
|
m
|
10.5-31.5m
|
|
hoisting speed
|
m/min
|
5.22-12.6
|
| trolley speed | m/min | 17.7-78 |
|
Working grade
|
|
A3-A5
|
|
Working environment temperture
|
°C
|
-25~40
|
|
power source
|
|
three-phase 380V 50HZ
|
|
Control mode
|
|
cabin control/remote control
|
Schematic drawing
Attention!!!
When ordering, the technical requirements such as the highest and lowest temperature of the working environment and the type of power supply should be indicated. The overload limiter, large screen display and various protection devices are added to further increase the safety during use.
Inquiry notice ! ! !
If you want to inquire about our 30 ton 50 ton double girder overhead crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1. Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?
|
||
|
Main Girder
1.with strong box type and standard camber
2.there will have reinforcement plate inside the main girder |
Crane Hook
1. For lifting steel scrap ,billet&slab. high speed wire&coiled bar, bundled rebar&profiled steel, rebar &steel pipe
2.capacity:3.2-32t |
Crane End Beam
1.uses rectangular tube manufacturing module
2.buffer motor drive
3.with roller bearings ancpermanent iubrication |
|
||
|
Crane Trolley
1.high working duty hoist mechanism
2.working duty:A3-A8
3.capacity:3.2-32t |
Remote Controller
1.apollo,HBC,WICONTEK.telecrane
2.2/4/6/8/10/12keys for choosing
3.voltage:as required
|
Crane Cabin
1.close and open type
2.air-conditioning pravided
3.interlocked circuit breaker provided |
|
Double girder overhead craneThe capacity:5-350ton |
Explosion proof overhead craneThe capacity:5-32ton |
|
|
Foundry overhead craneThe capacity:5-320ton |
Grab overhead craneThe capacity:5-25ton |
|
|
Magnet overhead craneThe capacity:3.2-32ton |
Europe type overhead craneThe capacity:5-350ton |
|
