|Crane Travel Speed:
|Rated Lifting Moment:
|Voltage Lower Protection Function:
|Place Of Origin:
|380v 3phase Or Customized
|ISO9001: 2000, CE
5m/Min Travel Launching Crane,
Highway Bridge Launching Crane,
CCC Wire Rope Launching Crane
*There are various kinds of launching gantries available, the choice of which depends upon the geometry of site and construction sequence adopted by the designer.

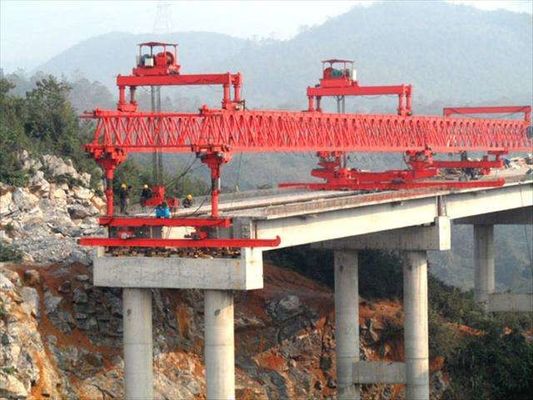

highway bridge construction rail running launcher crane
The span : 20-50m
Control Mode: Pendant, Remote Control and Cabin Control.
Bridge Launching Crane is used to erect the prestressed concrete girder with span 50m and 51m. The assembly of girder adopts stub matching precast which assembled on site, the girder is put on the piers simply and then combined span by span firmly. The maximum weight of prestressed segment shouldn’t exceed 130/140t. The construction method of Bridge Launching Crane is the segmental hanging and then construction tensioning after the steel strands are threaded. The structure of the crane mainly consists of: automatic electric control system, truck operation mechanism, lifting trolley, excellent hardness of the steel structure as the bearing capacity.
concrete box launcher crane remote control launcher crane is often used in port and railway cargo transportation. It is a high-quality hoisting machine with excellent structure, stable operation, safe and reliable, low maintenance cost and easy to control. Slag machine.
1. Horizontal operation landing the beam in place at one time;
2. Suitable for the construction of inclined (curved) bridge;
3. Light weight, convenient and quick transportation, installation and removal;
4. Safe and reliable work, small longitudinal cantilever deflection;
5. The legs are not landed on bridge deck when longitudinal moving, reducing the pressure on the beam/bridge deck.
Inquiry notice ! ! !
If you want to inquire about our launching girder gantry crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.
1. Lift capacity?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?
Send your special needs to us!
|Longitudinal slope <5% cross slope <5%
|Trolley longitudinal speed
|Trolley cross speed
|Crane slide longitudinal speed
|Crane side cross travel speed
|Adaptive inclined bridge angle
|Adaptive curved bridge radius
Parts Of Crane
Packing & Delivery
Every product will be tested before shipment.
The leg height adjustment experiment1
The leg height adjustment experiment2
In the leg walking test
Main girder transverse test
Self-locking mechanism test
1. Electric parts of 300 ton bridge beam launching gantry crane Launcher Girder Crane are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric winch of 300 ton bridge beam launching gantry crane Launcher Girder Crane are packed by plastic woven cloth. It can reduce abrasion when transport.
1. If the size of whole crane are suitable for container ship, usually by container;
2. If the size is too big, usually by bulk ship or by container after truncation;
3. Transport ways are based on reducing cost for you and keep the crane performance!
