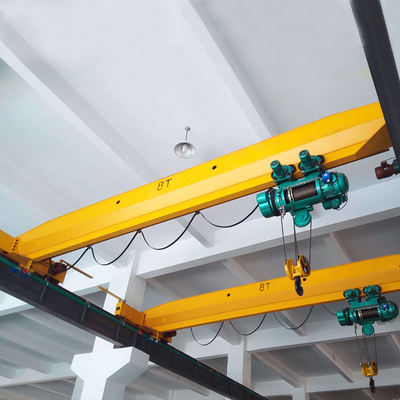

Electric Bridge LD Type Overhead Crane Single Girder

Electric Bridge LD Type Overhead Crane Single Girder
Electric Bridge LD Type Overhead Crane Single Girder
Electric Bridge LD Type Overhead Crane Single Girder Electric Bridge LD Type Overhead Crane Single Girder Electric Bridge LD Type Overhead Crane Single Girder

Large Image :  Electric Bridge LD Type Overhead Crane Single Girder

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: SGS IOS CE
Model Number: LD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $1000-15000/set
Packaging Details: packed by plywood crate or plastic woven cloth
Delivery Time: 60days
Payment Terms: L/C, T/T,
Supply Ability: 1000 Sets per Month

Electric Bridge LD Type Overhead Crane Single Girder

Description
Product Name: Electric Single Girder Overhead Crane Price Span: 10.5-31.5m
Condition: New Warranty: 2 Years
Max. Lifting Height: 30m Feature: Other
Application: Construction,Workshop,Factory Certification: ISO CE
High Light:

LD Type bridge Crane

,

Electric LD Overhead Crane

,

Single Girder LD Type Crane

Electric Single Girder Overhead Crane Price



Product Description

Ld Type Electric Hoist Overhead Crane in Single Girder Overhead crane, also known as bridge crane, is a type of crane where the hook-and-line mechanism runs along a horizontal beam that it runs along two widely separated rails itself. Often it is in a long factory building and runs along rails along the building's two long walls. It is similar to a gantry crane.
LD single girder crane for metallurgy is mainly used for lifting molten and foundry location. Its configured lifting mechanism is model YHII electric hoist for metallurgy, hoisting capacity≤10t. Main girder bottom of crane adopts to special heat insulation disposal. Working environment temper is -10ºC-60ºC, relative humidity is ≤50% in 40ºC. Design and manufacture of crane meet the requirements of AQSIQ Doc# (2007)375. Other situations that lift fusion non-metallic material or hot solid metal can refer.



Produc Main Features

  1. Compact structure which are small and light.
  2. The specially made wheels are light and widely used.
  3. Smoothly moving, effectively braking, long service life,
  4. The girder can be assembled and adjusted easily and rapidly.
  5. Operation, hoisting, the point start special smoothly,
  6. Users can choose according to different needs



Product Safety Device

  1. Emergency-off switch
  2. Overload protect
  3. Earth protection
  4. Cross travel and long travel protection
  5. Lifting travel protection
  6. Overheating protection of motor



Part of Roof Structure Single Girder Bridge Crane

Electric Bridge LD Type Overhead Crane Single Girder 0



Production Parameters



Model LD type
Lifting capacity t 1 2 3 5 10 16 20
Span m 7.5-31.5 or other specified span
Lifting height m 6, 9, 12 or other specified height
Lifting speed m/min 8 (8/0.8) 7 (7/0.7) 3.5 (0.35/3.5) 3.3 (0.33/3.3)
Hoist traveling speed m/min 20
Crane traveling speed m/min 20(30)
Working class A3, A4, A5
Power 380V, 50Hz or other



Our Service

  • All the machines will be full tested before shipment
  • Technical supports and suggestions before you order a machine according to your work place.
  • Professional opertion instruction of the machine.
  • 24 months warranty period and we will provide the consumable parts at cost price after the warranty period.
  • 24-hour technical support by emails, calling or videos.
