Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control

Certification
China Henan Dowell Crane Co., Ltd. certification
China Henan Dowell Crane Co., Ltd. certification
Customer Reviews
Our company is DOWELL's old customer, several years has ordered a double beam overhead crane and single beam bridge crane

—— Sedanur BAYDAR

I'm Online Chat Now

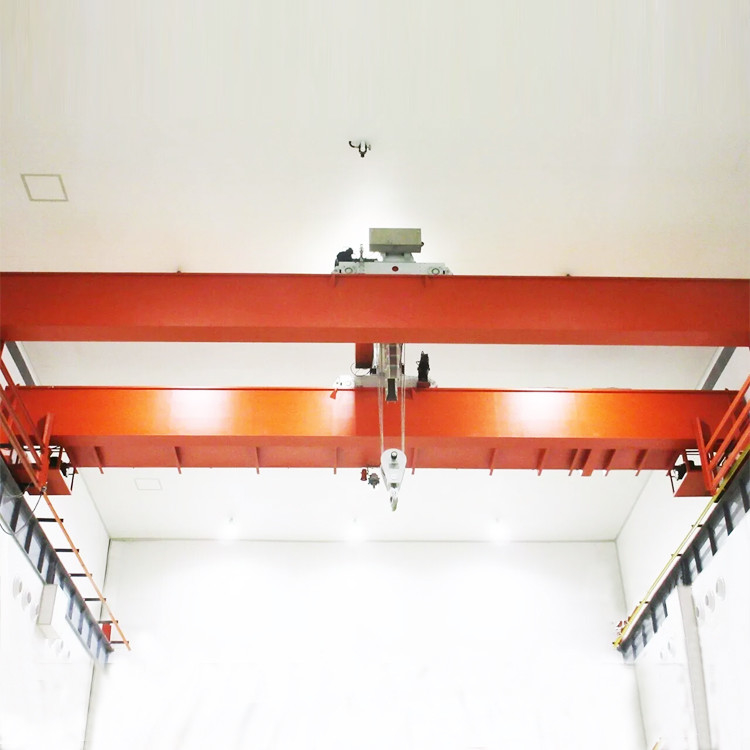

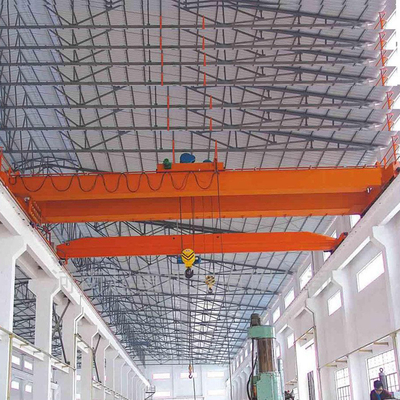

Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control

Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control
Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control
Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control

Large Image :  Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: CE ISO SGS
Model Number: LH
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 40000-100000 /Set
Packaging Details: Stretch Film & Plywood Case outside of spider boom lift
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10000 Sets per Year

Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control

Description
Product Name: Widely Use Indoor 10 Ton Double Beam Overhead Hoist Crane Price Lifting Speed: 5-15M/MIN
Power Supply:: Trolley Running Speed Crane Running Speed: 50-100M/MIN
Control Method: Cabin Control/wire Rope Remote Control Power Supply: 3 Phase 380V 50hz Or Request
Color: Customized Condition: New
High Light:

Double Overhead Hoist Crane

,

cabin control Double Beam Crane

,

Double Beam Hoist Crane

Widely Use Indoor 10 ton Double Beam Overhead Hoist Crane Price



  • Product Description

Indoor 10 ton Double Beam Overhead Hoist Cranes are used for medium and heavy-duty manufacturing. They are designed with high configuration and are developed with advanced design technology in accordance with European FEM standards. The crane is mainly composed of main beam, end beam, trolley, electrical part and other components. Bridge cranes are very suitable for low-rise buildings that require high lifting heights.
This newly developed bridge crane has a compact layout and a modular structure design, which effectively utilizes the available lifting height and reduces the investment in the steel structure of the workshop. The most effective space configuration is the double main beams and the crane system running on the top, which is most suitable for end users with headroom problems



  • Main Advantages

  • Strict weld inspection process
  • Strict size control for each items
  • Strict production processing and workmanship control ,QC inspection control
  • Strictly polished for four side and corner
  • Before painting, cover and protect some parts ,ensure paint quality
  • Before delivery ,pre-assembled & test whole crane ,ensure crane not dimension mistake and no quality problems



  • Technical parameter of double girder overhead crane

Widely Use Indoor 10 ton Double Beam Overhead Hoist Crane Price

Span(rail to rail center)

7.5m~35m

Lifting height

6m, 9m, 12m or other height

Capacity

5t

10t

15t, 16t

20t, 25t

30t, 32t

40t, 50t

Lifting speed(m/min)

8, 8/0.8

7/0.7

3.5,

3.5/0.35

4, 4/0.4

3, 3/0.3

2, 2/0.2

Cross travelling speed(m/min)

10, 20

10, 20

10, 20

10, 20

10, 20

10, 20

Long travelling speed(m/min)

20, 30

20, 30

20, 30

20, 30

20, 30

20, 30

Duty Class

A3/A4

Power source

380V, 50HZ, 3 phase (or other standard)

Working temperature

-20~45°C

Control model

Pendant pushbutton control, cabin control or remote control



































Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control 0





  • Safety Protections

  • Hoist safe working Period counter

  • Lifting running time counter

  • Overloading counter

  • Motor starts counter

  • Overheating protection

  • Overload protection

  • Brake-ware supervision



  • Details of the product

Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control 1

  • Girders are made of well-chosen steel plate, and processed by shot-blasting technology, thus the intensity and toughness are reliable. On the main girders laid the rails for cross travel.

  • The trolley adopts an electric hoist fixed on the trolley frame as the lifting mechanism. CD model electric hoist with single speed and MD model electric hoist with double speeds are in choice according to your demand.

  • Electric parts adopt China brand.



  • Production Process

Indoor Double Beam Overhead Hoist Crane 10 Ton Cabin Control 2

  • FAQ

Q1. What are the advantages of your company?
A1. We have been supplying cranes and lifting equipment for over 10 years.
Q2. Why should I choose your product?
A2. We can provide the best design advice before or after the sale. Q3. Can the logo and color be customized?
A3. Yes, your logo can be printed.
Q4. What other good services can your company provide?
A4. We are professional cranes and lifting equipment, any questions please contact us.
