Product Details:
|
| Product Name: | Workshop Light Duty Safety Eot Crane Double Girder | Lifting Speed: | 5-15M/MIN |
|---|---|---|---|
| Power Supply:: | Trolley Running Speed | Crane Running Speed: | 50-100M/MIN |
| Control Method: | Cabin Control/wire Rope Remote Control | Power Supply: | 3 Phase 380V 50hz Or Request |
| Color: | Customized | Condition: | New |
| High Light: | Workshop Double Girder Eot Crane,Double Girder Eot Overhead Crane,Light Duty Safety Double eot Crane |
||

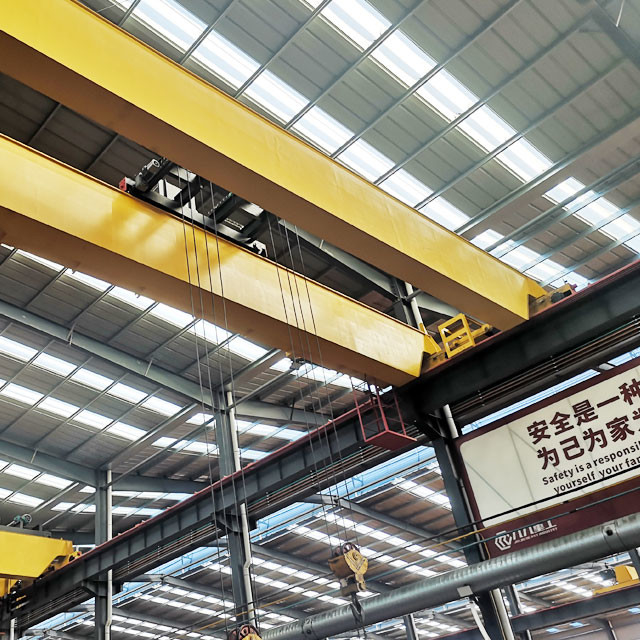

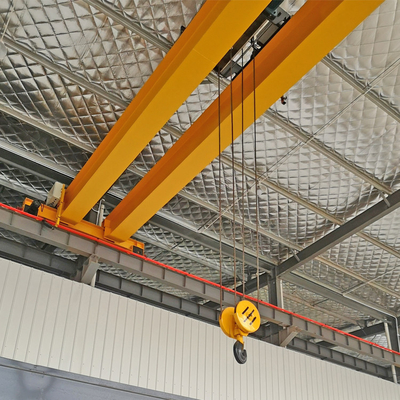

workshop light duty safety eot crane double girder
LH type electric hoist double beam crane is traveling on fixed support, the frame adopts box-type welding mechanism, and it used together with CD1 or MD1 model wire rope electric hoist as a complete set, It is an mid-duty class crane, the capacity from 3 tons to 20 tons. The span is 10.5-31.5m. Working class is A3~A4. Working temperature is -20°to 45°centigrade.
This type crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive to corrosives environment. The control method is ground remote control or control cabin control.
Main Advantages
Technical parameter of double girder overhead crane
|
workshop light duty safety eot crane double girder |
||||||
|
Span(rail to rail center) |
7.5m~35m |
|||||
|
Lifting height |
6m, 9m, 12m or other height |
|||||
|
Capacity |
5t |
10t |
15t, 16t |
20t, 25t |
30t, 32t |
40t, 50t |
|
Lifting speed(m/min) |
8, 8/0.8 |
7/0.7 |
3.5, 3.5/0.35 |
4, 4/0.4 |
3, 3/0.3 |
2, 2/0.2 |
|
Cross travelling speed(m/min) |
10, 20 |
10, 20 |
10, 20 |
10, 20 |
10, 20 |
10, 20 |
|
Long travelling speed(m/min) |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
|
Duty Class |
A3/A4 |
|||||
|
Power source |
380V, 50HZ, 3 phase (or other standard) |
|||||
|
Working temperature |
-20~45°C |
|||||
|
Control model |
Pendant pushbutton control, cabin control or remote control |
|||||
Safety Protections
Hoist safe working Period counter
Lifting running time counter
Overloading counter
Motor starts counter
Overheating protection
Overload protection
Brake-ware supervision
Details of the product
Girders are made of well-chosen steel plate, and processed by shot-blasting technology, thus the intensity and toughness are reliable. On the main girders laid the rails for cross travel.
The trolley adopts an electric hoist fixed on the trolley frame as the lifting mechanism. CD model electric hoist with single speed and MD model electric hoist with double speeds are in choice according to your demand.
Electric parts adopt China brand.
