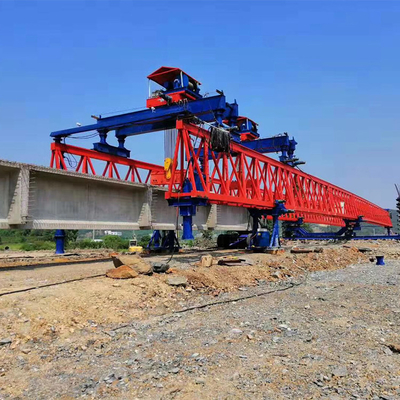

Bridge Construction Equipment Truss Type Beam Launching Crane

Bridge Construction Equipment Truss Type Beam Launching Crane
Bridge Construction Equipment Truss Type Beam Launching Crane
Bridge Construction Equipment Truss Type Beam Launching Crane Bridge Construction Equipment Truss Type Beam Launching Crane Bridge Construction Equipment Truss Type Beam Launching Crane

Large Image :  Bridge Construction Equipment Truss Type Beam Launching Crane

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST SGS
Model Number: JQJ Beam Launcher Girder Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 199999-599999 SET
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Sets per Year

Bridge Construction Equipment Truss Type Beam Launching Crane

Description
Running Style: Rail Color: Customized
Current Overload Protection System: Include Limited Switch: Include
Voltage Lower Protection Function: Include Warranty: 2 Years
Place Of Origin: Henan, China Crane Travel Speed: 5m/min
Rated Lifting Moment: 500kn Span: 50M
Lifting Speed: 0-1m/min Power Supply: 380v 3phase Or Customized
High Light:

Steel Beam Launcher Crane

,

Prestressed Launcher Gantry Crane

,

Concrete Steel Launcher Crane

Bridge Construction Equipment Truss Type Beam Launching Crane​



Product Description

It is normally used for launching the bridges, to play the function of bridge lifter, bridge builder, segmental lifter, or form traveler.
We have supplied many of these cranes for railway stations.
The main frame of launching crane is composed of hoisting mechanism transverse mechanism, lengthways travelling mechanismand principal I steel supporting member. The beam launching and install of bridge can be operated in various complicated a trocious geography by launching equipment. There is a advanced efficient and high cost performance bridge construction equipment, which also could developed farther ahead. It extensive used in cross-the-sea, cross-the-river, cross-the-valley, bridge and viaduct of the city. As well as appliance to connect tunnel of upland for traversing tunnel ahead project.



Parts Details Of Crane

Bridge Construction Equipment Truss Type Beam Launching Crane 0



Product Parameters

Lifting Weight (t) 60 80 100 150
bridge radius (m) 20-30 20-35 30-40 35-50
Slope below 1/20
Turning Radius(m) 200 250 300 350
Angle of Skew Bridge 0~15°
shop travelling speed

(lengthways moving )

1 1.2 0.8 0.6

crane travelling speed

(lengthways moving)

6/0.6



Product Advantages

  • Low height, narrow width, light weight and compact structure.
  • The whole set can pass through the tunnel; what’s more, it can feed girder and erect girder in tunnel.To meet the requirement of the limit of present railway, it can work under the condition of multiple tracks.
  • The symmetrical design of main girder, and to reserve the hole of bolts to erect girder bidirectional and shift span for erecting
  • It can move a long distance on the rail with self- power
  • Compact structure, easy to install and maintain for users.



Safety Features

  • Crane traveling limit switch.
  • Overload protection device.
  • Lifting height limit device.
  • Voltage lower protection function .
  • Phase sequence protection function.
  • Emergency stop function.
  • Rain cover for outside hoist, driving units, electric cubicle.
  • Warining indicator : flashing nights and warning sounds.



Installaton



Bridge Construction Equipment Truss Type Beam Launching Crane 1





Packing and Delivery



Bridge Construction Equipment Truss Type Beam Launching Crane 2



Our Advantages

  • Help customers reduce work intensity and make material handling easier
  • Help customers greatly improve work and production efficiency, and increase product output
  • Solve the urgent needs of customers and provide customized special equipment
  • Environmentally friendly design to help customers maximize energy saving and save money
