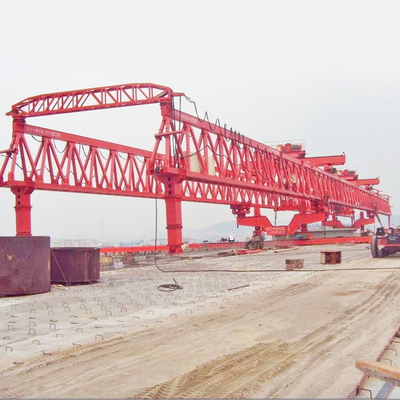

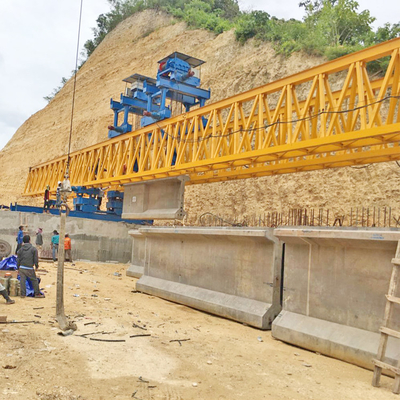

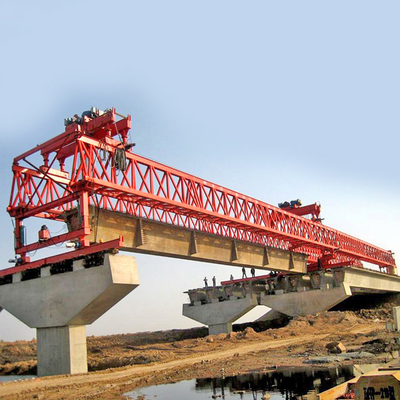

Truss Type Launching Crane 50M Highway Railway Construction

Truss Type Launching Crane 50M Highway Railway Construction
Truss Type Launching Crane 50M Highway Railway Construction
Truss Type Launching Crane 50M Highway Railway Construction Truss Type Launching Crane 50M Highway Railway Construction Truss Type Launching Crane 50M Highway Railway Construction Truss Type Launching Crane 50M Highway Railway Construction

Large Image :  Truss Type Launching Crane 50M Highway Railway Construction

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST SGS
Model Number: JQJ Beam Launcher Girder Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 199999-599999 SET
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Sets per Year

Truss Type Launching Crane 50M Highway Railway Construction

Description
Running Style: Rail Color: Customized
Current Overload Protection System: Include Limited Switch: Include
Voltage Lower Protection Function: Include Warranty: 2 Years
Place Of Origin: Henan, China Crane Travel Speed: 5m/min
Rated Lifting Moment: 500kn Span: 50M
Lifting Speed: 0-1m/min Power Supply: 380v 3phase Or Customized
High Light:

Highway Railway Launching Crane

,

50M Launching Crane

,

Truss Launching Crane

Highway Railway Construction Truss Type Launching Crane



Product Description

Highway Railway Construction Truss Type Launching Crane is used in the erection of precast beam bridges for span by span method of construction for precast beam girders like T beam,U beam, etc. This self beam launcher is suitable for bridge construction over river,valley or highway and so on.

Highway bridge beam launcher gantry is suitable for the construction of bridge for roads, railways and other bridge erection construction site. Its main function is to lift the prefabricated beams, then transported onto the prefabricated pier. It has big difference from the general cranes. It requests high security.



Parts Details Of Crane

Truss Type Launching Crane 50M Highway Railway Construction 0



Product Parameters

Lifting Weight (t) 60 80 100 150
bridge radius (m) 20-30 20-35 30-40 35-50
Slope below 1/20
Turning Radius(m) 200 250 300 350
Angle of Skew Bridge 0~15°
shop travelling speed

(lengthways moving )

1 1.2 0.8 0.6

crane travelling speed

(lengthways moving)

6/0.6



Product Advantages

  • It's light weight, transportation, installation and removal is very convenient
  • The Beam Launcher represents a good stability, high efficiency, safety and reliability, easy to adjust variable cross and easy to operate
  • The legs do not through the bridge deck when longitudinal move, no need to lay vertical moving orbit, reduce the pressure on the deck
  • It has three method picking up the precast beam: from rear end of the beam launcher on the deck level, from below on ground level, or from bridge side



Safety Features

  • Crane traveling limit switch.
  • Overload protection device.
  • Lifting height limit device.
  • Voltage lower protection function .
  • Phase sequence protection function.
  • Emergency stop function.
  • Rain cover for outside hoist, driving units, electric cubicle.
  • Warining indicator : flashing nights and warning sounds.



Installaton



Truss Type Launching Crane 50M Highway Railway Construction 1





Packing and Delivery



Truss Type Launching Crane 50M Highway Railway Construction 2



Our Advantages

  • Help customers reduce work intensity and make material handling easier
  • Help customers greatly improve work and production efficiency, and increase product output
  • Solve the urgent needs of customers and provide customized special equipment
  • Environmentally friendly design to help customers maximize energy saving and save money
