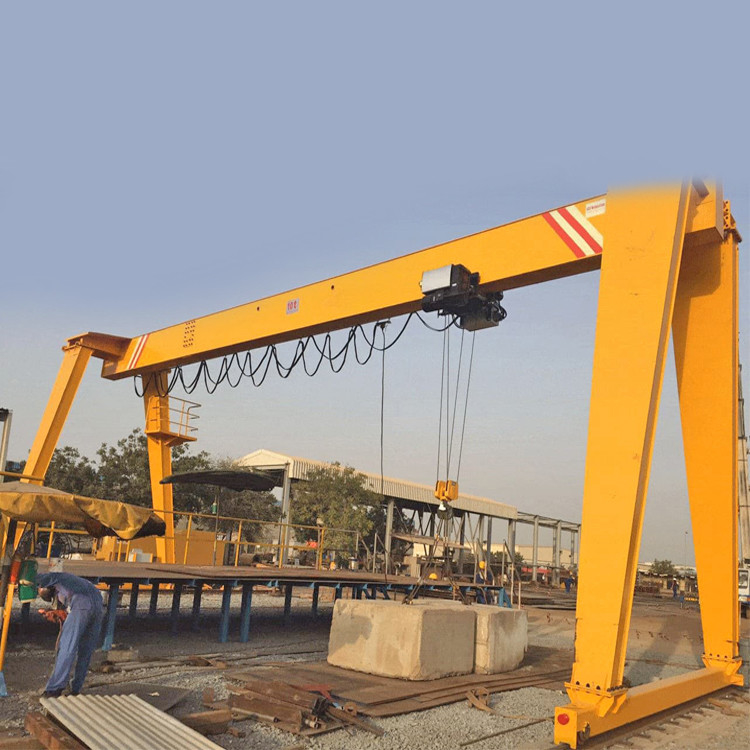

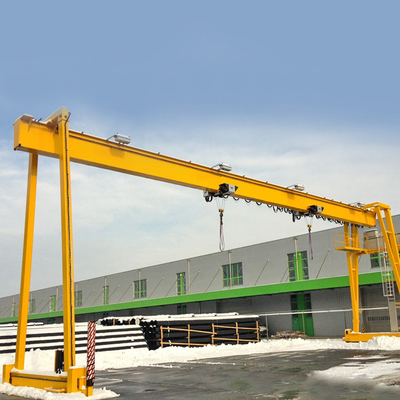

Motorized A Frame Gantry Crane Lifting Single Beam Light Weigh

Motorized A Frame Gantry Crane Lifting Single Beam Light Weigh
Motorized A Frame Gantry Crane Lifting Single Beam Light Weigh
Motorized A Frame Gantry Crane Lifting Single Beam Light Weigh Motorized A Frame Gantry Crane Lifting Single Beam Light Weigh Motorized A Frame Gantry Crane Lifting Single Beam Light Weigh

Large Image :  Motorized A Frame Gantry Crane Lifting Single Beam Light Weigh

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST
Model Number: MH Gantry Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2000~30000/1 set
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Sets per Year

Motorized A Frame Gantry Crane Lifting Single Beam Light Weigh

Description
Product Name: Motorized A Frame Lifting Single Beam Gantry Crane Working Duty: A3-A5
Control Method: Cabin Control/wire Rope Remote Control Certification: CE,ISO
Condition: New Warranty: 2 Years
Span: Customized Feature: Gantry Crane
Application: Outdoor,Warehouse,factory,workshop Lifting Mechanism: Manual Hoist Or Wire Rope Hoist
High Light:

Motorized A Frame Gantry Crane

,

Single Beam Lifting Gantry Crane

,

lightweight Gantry Crane Single Beam

Motorized A Frame Lifting Single Beam Gantry Crane

Motorized A Frame Lifting Single Beam Gantry Crane Description

Gantry cranes are lifting equipment that is horizontally framed over workshops, warehouses and stock yards for material lifting.Because its two ends are located on tall concrete columns or metal supports, The bridge frame of the gantry crane runs longitudinally along the tracks laid on both sides of the elevated frame, which can make full use of the space under the bridge frame to lift materials without being obstructed by ground equipment.
And because this type of gantry crane has superior performance, compact structure, light weight, safe, reliable and efficient operation, it can adapt to various working conditions. It can reduce the overall investment of the factory, improve production efficiency, reduce maintenance costs, save operating energy consumption, and obtain a better return on investment. Therefore, it is also the most widely used and the largest number of cranes.



Motorized A Frame Lifting Single Beam Gantry Crane Drawings

111111111

Motorized A Frame Gantry Crane Lifting Single Beam Light Weigh 1

Motorized A Frame Lifting Single Beam Gantry Crane Parameters


Model NO
MH
Condition
New
Type
Single Girder
Span
up to 30 M
Lifting Height
6/9m customzied
Load Capacity
3-32 Ton
Lifting speed
8 0.8/8m/min customzied
Travelling Speed
20/30/45 m/min customzied
Working Class
A3
Origin
Henan, China
Way to Control
Pendant Push Button/Wireless Remote Controller
Specification
CE, ISO


Industrial Workshop Sngle Girder Gantry Crane Features


  1. The electric hoist is hoisting mechanism;
  2. The gantry girder is box-shape structure.
  3. Light trussed frame and strong in wind resistance.
  4. Lght dead weight, simple structure and easy installation and maintenance


After-sales service

  • Long warranty period, maintenance-free for life.
  • Can provide free instruction and maintenance manual.
  • Can provide free engineer video guidance.
  • In case of special circumstances, after-sales service can be provided by dispatched engineers.


Our Advantages


  1. We serve every customer seriously. In order to better serve you, you will be equipped with a professional service team: sales manager + customer service + technical engineer to ensure that any questions you have can be answered accurately in time.
  2. After obtaining the accurate plant parameters, we will make 2-3 sets of plan packages of different models (including plan drawings, product drawings, detailed crane parameters, plan advantages and disadvantages, etc.) by professional engineers according to your needs.
  3. After receiving the order, we will arrange the production and the deployment of the purchased parts as soon as possible. The production process supports online inspection and tracking at any time.


FAQ

1.What is the load capacity of this single overhead crane?
0.5-32 ton
2.What is the lift height of this single overhead crane?
3-60 m
3.What's your span? (If you are installing in a warehouse, the span is the width of the warehouse).
6-42 m
4.What's your traveling length? (If you are installing in a warehouse, the travel length is the length of the warehouse).
Travel rails and bus bar.
5.What is the voltage you need?
The default is generally 380 V / 50 Hz / 3 P.
