|Product Name:||Industrial Large Span Gantry Crane With Electric Hoist||Working Duty:||A3-A5|
|Control Method:||Cabin Control/wire Rope Remote Control||Certification:||CE,ISO|
|Application:||Outdoor,Warehouse,factory,workshop||Lifting Mechanism:||Manual Hoist Or Wire Rope Hoist|
Large Span Gantry Crane,
Industrial Span Gantry Crane,
Span Gantry Crane With Electric Hoist

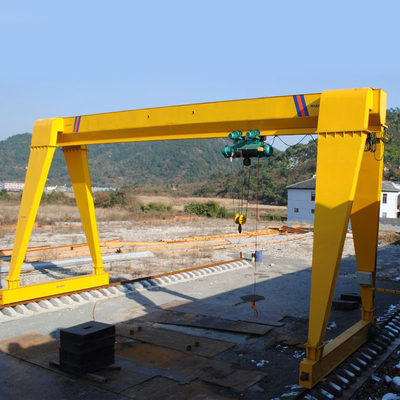

industrial large span gantry crane with electric hoist
Industrial Large Span Gantry Crane Description
MH model single girder gantry crane is a kind of outdoor cranes equipped with CD/MD type electric hoists and widely used indoor and outdoor such as workshop, warehouse, store yard, railway and so on. This kind of crane is composed of main beam, support legs, ground beam, crane travelling mechanism and crane traveling mechanism.
About the main beam and support leg, there are two types: box type and truss type, box type is good techniques and easy fabrication, truss type is light in dead weight and strong in wind resistance. . The complete machine features light dead weight, simple structure and easy installation and maintenance and widely used.
If you will use it in the environment with inflammable, explosive and corrosive gas, please let me know, we will equip the crane with corresponding measures.
Motorized A Frame Lifting Single Beam Gantry Crane Drawings
Industrial Large Span Gantry Crane Parameters
|Operation type||Handle/remote control/cab|
|Speed||Hoist lifting||m/min||8 ,8/0.8||8,8/0.8||7,7/0.7||3.5||3.5|
|Power||380V 50HZ 3phase AC or according to customers' demand|
Industrial Large Span Gantry Crane Features
1.What is the load capacity of this single overhead crane?
2.What is the lift height of this single overhead crane?
3.What's your span? (If you are installing in a warehouse, the span is the width of the warehouse).
4.What's your traveling length? (If you are installing in a warehouse, the travel length is the length of the warehouse).
Travel rails and bus bar.
5.What is the voltage you need?
The default is generally 380 V / 50 Hz / 3 P.
