Light Duty Electric Chain Hoist 380V High Speed 30m Stationary

Certification
China Henan Dowell Crane Co., Ltd. certification
China Henan Dowell Crane Co., Ltd. certification
Customer Reviews
Our company is DOWELL's old customer, several years has ordered a double beam overhead crane and single beam bridge crane

—— Sedanur BAYDAR

I'm Online Chat Now

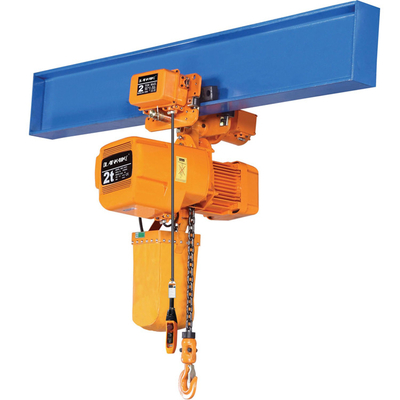

Light Duty Electric Chain Hoist 380V High Speed 30m Stationary

Light Duty Electric Chain Hoist 380V High Speed 30m Stationary
Light Duty Electric Chain Hoist 380V High Speed 30m Stationary
Light Duty Electric Chain Hoist 380V High Speed 30m Stationary Light Duty Electric Chain Hoist 380V High Speed 30m Stationary Light Duty Electric Chain Hoist 380V High Speed 30m Stationary

Large Image :  Light Duty Electric Chain Hoist 380V High Speed 30m Stationary

Product Details:
Place of Origin: China
Brand Name: DOWELL
Certification: CE ISO
Model Number: HBBD
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Packed by high quality wooden box
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 SET/ YEAR

Light Duty Electric Chain Hoist 380V High Speed 30m Stationary

Description
Sling Type: Chain Lift Speed: 1.1-7.2m/min
Motor: Nanjing Special Motor Power Supply: 380V 50Hz Or On Request
Maximum Lifting Height: 30m Type: Stationary Or Moveable
Condition: New Usage: Construction Hoist,Mining Hoist,Material Handling,portable
Color: Customised Warranty: 3 YEAR
High Light:

Electric Chain Hoist High Speed

,

Light Duty 380V Electric Chain Hoist

,

30m Stationary Electric Chain Hoist

Light Duty High Speed Electric Chain Hoist



Light Duty High Speed Electric Chain Hoist Description:



Electric chain hoist is a small light lifting equipment,widely usedto lift, loading and unloading, repair equipment, hoisting goods, install on a suspended I-steel, curve track, jib crane rail and fixed lifting hoisting heavy weights.Electric chain hoist can be classified into electric chain hoist with electric trolley,electric chain hosit with manual trolley, fixed type electric chain hoist,low headroom electric chain hoist.



Light Duty High Speed Electric Chain Hoist Application:



Light Duty High Speed Electric Chain Hoist is applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces



Light Duty High Speed Electric Chain Hoist Drawing:



Light Duty Electric Chain Hoist 380V High Speed 30m Stationary 0



Specification data:





Product Parameters
lift capacity(T)
1
1.5
2
3
5
10
20
Testing loading(T)
1.25Gn
1.25Gn
1.25Gn
1.25Gn
1.25Gn
1.25Gn
1.25Gn
Motor power(kw)
1.5
3.0
3.0
3.0
3.0
3.0*2
3.0*2
Lift speed(m/min)
6.6
8.8
6.6
5.4
2.7
2.7
1.4
Lift chain quantity
1
1
1
1
2
4
8
Chain diameter(mm)
7.1
10.0
10.0
11.2
11.2
11.2
11.2
Net weight(kg)
61
108
115
122
151
300
480
lift 1 more meter increase weight(kg)
1.1
2.3
2.3
2.8
5.6
8.4
22
Min. Distance between hooks H(mm)
650
800
800
845
1030
1400
1470



Detailed Images:

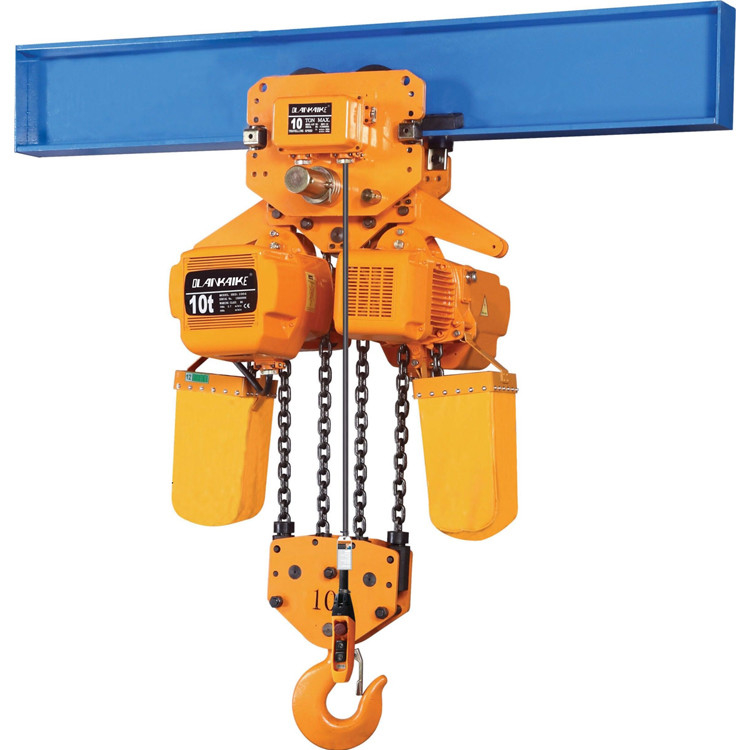

1 Ton 2 Ton 3 Ton 5 Ton Electric Chain Hoist For Sale

  1. Chain bag: Light & beautifuDurable & Wear-resistance
  2. Hook: Thermally ForgedHigh Strength & Fracture Resistance 3600 Rotating
  3. Chain:FEC80 Superheat Treatment AlloyNo impacts in rain, sea water, chemical and other harsh environment
  4. Remote control: Waterproof & Light Weight & Durablility
  5. Shell: High heat dissipationFull sealing designDustproof & Light weight



Packing and Delicery:



  • Hoist parts are packed by high quality plywood crate, to reduce distortion in conveying.
  • Transport ways are based on reducing costs & keep safety.



FAQ:



Q: Can you provide custom service?
A: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Q: Are there professional technicians to assist in the installation?
A: Yes. We have a professional installation team and have been to many countries to assist in installation. If you need us to provide this service, please let us know in advance and we will provide you with the best solution.
Q: Do you provide accessories?
A: Yes, as a manufacturer, we can provide all related accessories.
Q: How do you guarantee the quality?
A: We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate.
Q: How long is your delivery time?
A: Within 10/25/40 days after receiving your advance payment; the specific time limit is subject to the specific requirements and actual time limit.
Q: How long is your warranty period?
A: 36 months.
Q: How do you pack?
A: The main body is in a plywood box or plastic woven cloth; the accessories are in the plywood box.
