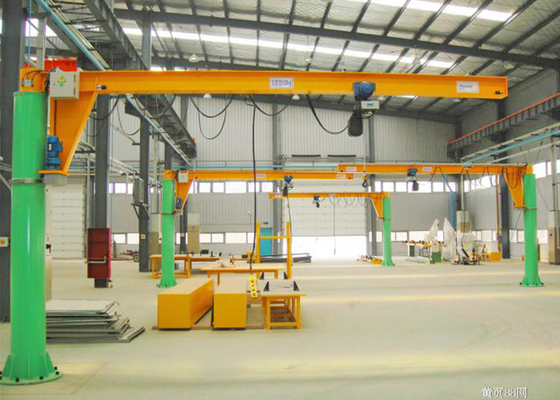

A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation

A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation
A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation
A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation

Large Image :  A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: SGS IOS CE
Model Number: BZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 1000~20000$/1 set
Packaging Details: Jib crane electrical and other parts packed by high quality plywood crate, Beams packed by plastic woven cloth.
Delivery Time: 20 work days
Payment Terms: L/C, T/T
Supply Ability: 20000 Sets per Year

A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation

Description
Slewing Degree: 0~360° Control Mode: Pendent Wire Control Or Remote Control
Application: Widely Operating Environment: -25 ~40 Degree
Working Duty: A3/A4 Color: Clients' Requirments
Warranty: 3years Condition: New
High Light:

Floor Mounted Jib Crane

,

Jib Crane With Electric Hoist

,

A4 Jib Crane Easy Operation

Easy Operation Floor Mounted Jib Crane with Electric Hoist



Product Description



Easy Operation Floor Mounted Jib Crane with Electric Hoist is a crane which is used with electric chain hoist or CD, MD type electric wire rope hoist. It consists of column, swing jib, electric hoist, drive device and electrical control system.
The bottom of column is fixed on the concrete foundation by the anchor bolts, driving device is driven by the motor to rotate swing jib, and the electric hoist reciprocates and runs on swing jib.
Easy Operation Floor Mounted Jib Crane with Electric Hoist has the advantages of simple structure, convenient operation, small occupation space and large working range. And was widely used in machinery manufacturing, automotive, shipbuilding and other modern industrial production lines, assembly lines and warehouses, docks, laboratories and other materials handling operations. It Is an ideal lifting equipment for improving work efficiency and working conditions for the enterprise
.



Electric System



1. Power supply through step less slide lines;
2. Lifting mechanisms and traveling mechanisms are mutually independent and could travel at the same time;
3. Control panel protection degree is IP54;
4. Reasonable components installation, convenient for check and maintenance;
5. Electric cable is suspended in cable saddle, stationary cable trolley which slides on a galvanized C-type steel.



Product Parameters



Product Name BZ Model Pillar Crane Floor Mounted Cantilever Jib Crane
Lift capacity(T)
1, 2, 3, 5, 10, 16, 20
Span(M)
7.5-22.5


Mechanism traveling
speed(m/min)
10, 20, 30
45, 60

motor
type
ZDY1 21-4
ZDR12-4
power(kw)
2*0.8
2*1.5
speed(r/min)
1380
1380


Electric chain hoist or wire rope hoist
model
CD1/MD1/HHBB
lift height(m)
3-25
traversing speed(m/min)
20,30 or can be customized
lifting speed(m/min)
8(7); 8/0.8(7/0.7)
Workclassfication
A3-A5
Power supply
380V/50HZ or on request



Product Drawings

A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation 0

A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation 1

Product Features



  • Column using seamless pipe,main beam use I-beam.
  • Rotation can be manual or motorized.
  • Hoist can be equipped with electric wire rope hoists, electric chain hoists or manual hoists.
  • Unique structure, safe and reliable, high efficiency and flexible.
  • Can be customized according to client’s requirements.
  • Easy installation.



Package & Delivery





A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation 2




About Us



A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation 3


A4 Floor Mounted Jib Crane With Electric Hoist Easy Operation 4


Our Services



Pre-sale Service
* Inquiry and consulting support.
* Configure best machine line according customer condition
* View our Factory.
After-sale Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.



FAQ



If you have inquire for jib crane, please confirm with us the following details. Then we will quote you a suitable price.
What kind of goods will this crane lift?

  1. Lift capacity? (1ton 2ton 3ton 5ton 10ton..?)
  2. Working radius? (3m, 5m, 6m, 9m...?)
  3. Lift height?(3m. 6m, 9m 12m...?)
  4. Power supply in your local?(It could be customized by your requirement)
  5. Nearest port? (We could supply the CIF or CFR price after we know the discharge port.)
