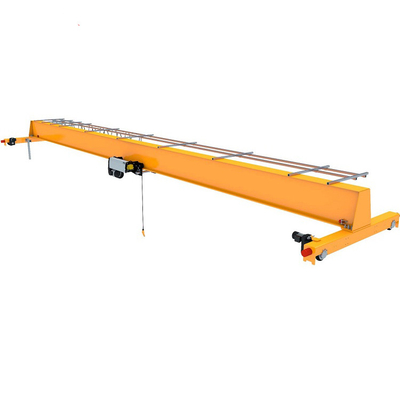

5t European Single Girder Overhead Eot Crane 220v Anti Lock

5t European Single Girder Overhead Eot Crane 220v Anti Lock
5t European Single Girder Overhead Eot Crane 220v Anti Lock
5t European Single Girder Overhead Eot Crane 220v Anti Lock 5t European Single Girder Overhead Eot Crane 220v Anti Lock 5t European Single Girder Overhead Eot Crane 220v Anti Lock

Large Image :  5t European Single Girder Overhead Eot Crane 220v Anti Lock

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST
Model Number: EOT European Style Overhead Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 6000-12000 /Set
Packaging Details: Stretch Film & Plywood Case outside of Towable Scissor Lift
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 10000 Sets per Year

5t European Single Girder Overhead Eot Crane 220v Anti Lock

Description
Product Name: 5t Single Girder European Overhead Crane Manufacturers Voltage: 220v /380v /415v
Color: Customized Feature: Easy Operation Safety Convenience,Customized According To Customer Requirements,Low Noise
Warranty: 3 Years After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support
High Light:

Single Girder Eot Crane Anti Lock

,

5t Single Girder Overhead Eot Crane

,

220v Single Girder Eot Crane

5t Single Girder European Overhead Crane Manufacturers


5t Single Girder European Overhead Crane Manufacturers Description


5t Single Girder European Overhead Crane could be widely used to handle materials in many industries' workshop and warehouse. such as machinery manufacture. warehouse. logistic. food. paper making, electronics industries workshop and other material handling situations. The lifting hoist adopts M5 working class with double lifting speed. motor with ABM German brand motor. Travelling motor uses SEW European brand in one motor gear motors. Cross and long traveling are variable travelling speed. Electric parts adopt Siemens brand. The protection class is IP 54 high class. The working class can reach to A5/M5 class under ISO standard.

5t Single Girder European Overhead Crane Manufacturers Drawing
5t European Single Girder Overhead Eot Crane 220v Anti Lock 0

Product Parameters



Capacity t 1,2,3,5,10 16,20
Span m 7.5-22.5
Lifting height m 6,9,12,18,24,30 12,18,24,30
Speed Lifting m/min 8,8/0.8,7/07 3.5,3.5/0.35
  Cross travel m/min 20,30 20,30
  Long travel m/min 20,30,45,60,75
Electric hoist type CD/MD CD/MD/HC
Working duty   A3 A3
Power supply AC 380V/50HZ/3P 380V/50HZ/3P



Product Main Features

  • High quality automatic welding and NDT inspection
  • High tension bolts mounting between girder and legs, life time safety connection
  • Compacted gear motor driving, stepless control, harden gear, safety disc brake IP55
  • Excellent driving properties, stepless control, smoothly moving
  • All hoist and crane movements are independent and can be run simultaneously.


Safety Devices

  • Infrared anti-collision.
  • Reasonable structure,strong bearing capacity.

  • Alarm indicator.

  • Reducer anti-fall, anti-lock.

  • Outdoor hoist with a rain cover.

  • Low noise, soft starting and stopping.


Parts Of Crane

5t European Single Girder Overhead Eot Crane 220v Anti Lock 1


About Us


Dowellcrane Machinery Group is a China-leading group of crane businesses which was founded in 1955, Only one company has 60years manufacture experience. And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory. Our clients include manufacturing and process industries, shipyards, ports and so on. Regardless of your lifting needs, dowellcrane Machinery Group is committed to providing you with lifting equipment and services that increase the effectiveness and value of your business.

5t European Single Girder Overhead Eot Crane 220v Anti Lock 2

Notice



Please inform us the following details while you send the inquiry:
1.What is the lifting capacity?
2.What is the span?
3.What is the lifting height?(Lifting height=Distance from hook to ground)
4.What is the lifting speed?(Single speed or double speed)
5.What control mode do you need?(Pendant control or remote control or cabin)
6.What is the power supply in your country?(Our standard power supply is 380V,3Ph,50Hz)
7.Is there any other special requirements?(Like need us to supply rails?how long? etc)
