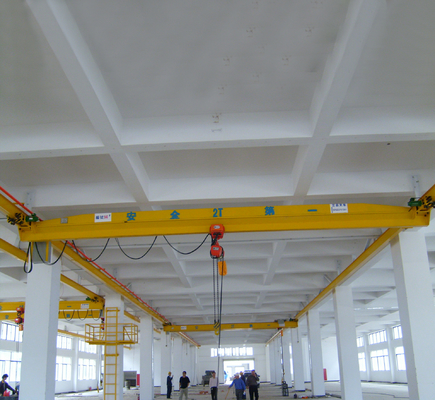

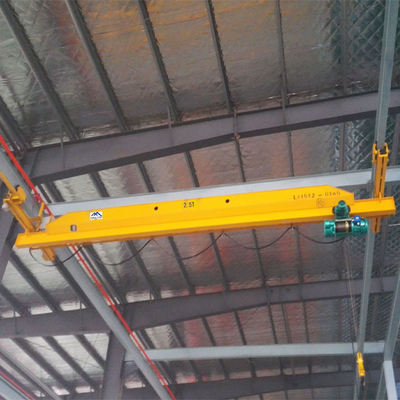

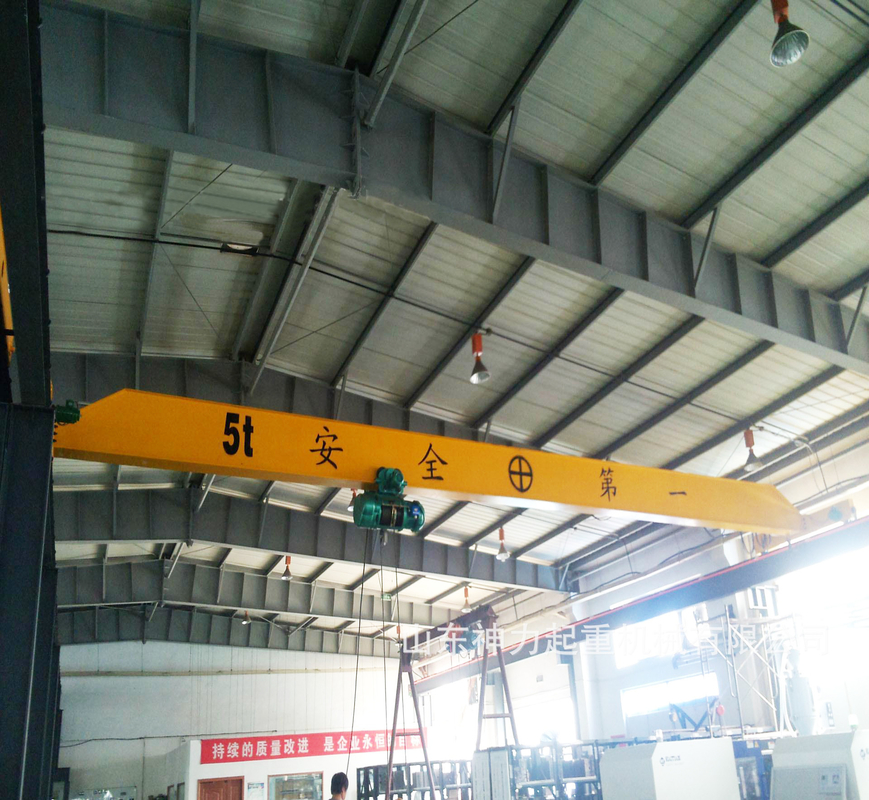

Hanger Overhead Bridge Crane Hoist Single Beam 30m Height

Hanger Overhead Bridge Crane Hoist Single Beam 30m Height
Hanger Overhead Bridge Crane Hoist Single Beam 30m Height
Hanger Overhead Bridge Crane Hoist Single Beam 30m Height Hanger Overhead Bridge Crane Hoist Single Beam 30m Height Hanger Overhead Bridge Crane Hoist Single Beam 30m Height Hanger Overhead Bridge Crane Hoist Single Beam 30m Height

Large Image :  Hanger Overhead Bridge Crane Hoist Single Beam 30m Height

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: SGS IOS CE
Model Number: LX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD5000-50000set
Packaging Details: Packed by plywood crate or plastic woven cloth
Delivery Time: 35days
Supply Ability: 4000sets per year

Hanger Overhead Bridge Crane Hoist Single Beam 30m Height

Description
Product Name: Single Beam Hanger Overhead Crane Hoist Warranty: 2 Years
Span: 7.5-22.5m Condition: New
After-sales Service Provided: Free Spare Parts Max. Lifting Height: 6m~30m
Rated Lifting Moment: Different Max. Lifting Load: 20t
Application: Warehouse And So On Power Supply: 3 Phase AC 380V 50HZ
High Light:

Hanger Overhead Bridge Crane

,

Single Beam Overhead Bridge Crane Hoist

,

30m Height Overhead Bridge Crane

Single Beam Hanger Overhead Crane Hoist



Product Description:



Single Beam Hanger Overhead Crane Hoist are widely used for lifting goods in factories, warehouses, and material plants. It has a reasonable structure and high overall steel strength. It is usually used in conjunction with CD and MD electric hoists. This kind of equipment is forbidden to be used in flammable, explosive and corrosive environments.



Product Drawing:

Hanger Overhead Bridge Crane Hoist Single Beam 30m Height 0



Product Parameters:



Technical Parameter of LX Single Girder Suspension Crane
Capacity
t
0.5
1
2
3
5
10
Span
S(m)
3~22.5
3~22.5
3~22.5
3~22.5
3~22.5
3~22.5
Lifting height
m
6~30
6~30
6~30
6~30
6~30
9~30
Lifting speed
m/min
8(0.8/8)
8(0.8/8)
8(0.8/8)
8(0.8/8)
8(0.8/8)
7(0.7/7)
Trolley speed
m/min
20(30)
20(30)
20(30)
20(30)
20(30)
20(30)
Crane speed
m/min
20(30)
20(30)
20(30)
20(30)
20(30)
20(30)
Work duty

A3~A4
A3~A4
A3~A4
A3~A4
A3~A4
A3~A4



Product Features:


  • It is the most cost-effective choice for light and medium cranes.
  • Light weight, thereby reducing the load on the building structure or foundation. Normally, it can be supported by the existing roof structure without using additional support columns.
  • Easy to install and maintain.
  • Long service life, less wear.
  • It is suitable for facilities with low headroom, which reduces the requirements for the use of space.



Parts of Product



Hanger Overhead Bridge Crane Hoist Single Beam 30m Height 1





About Us



Hanger Overhead Bridge Crane Hoist Single Beam 30m Height 2



Henan Dowell Crane Co., Ltd is a China-leading group of crane businesses which was founded in 1955, And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory.

  • Henan Dowell Crane Co., Ltd has already obtained the CCC,CE,BV,SGS,ISO OHSAS certifications and has won over 60 honors
  • Our company offers services for more than 5000 companies, and the products are polular in more than 100countries.

Packing and Delivery



Hanger Overhead Bridge Crane Hoist Single Beam 30m Height 3





FAQ:



Q: Can you provide custom service?
A: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
Q: Are there professional technicians to assist in the installation?
A: Yes. We have a professional installation team and have been to many countries to assist in installation. If you need us to provide this service, please let us know in advance and we will provide you with the best solution.
Q: Do you provide accessories?
A: Yes, as a manufacturer, we can provide all related accessories.
Q: How do you guarantee the quality?
A: We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate.
Q: How long is your delivery time?
A: Within 40 days after receiving your advance payment; the specific time limit is subject to the specific requirements and actual time limit.
Q: How long is your warranty period?
A: 24 months.
