Home ProductsElectric Hoist

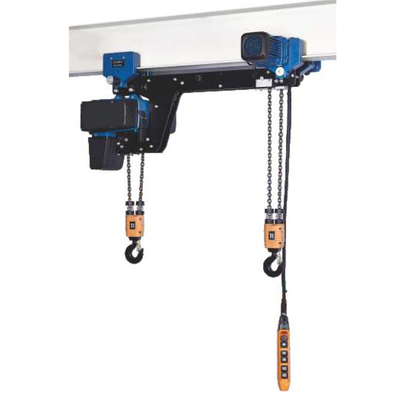

10 Ton Electric Chain Pulley Hoist Lifting Widely Use

Certification
China Henan Dowell Crane Co., Ltd. certification
China Henan Dowell Crane Co., Ltd. certification
Customer Reviews
Our company is DOWELL's old customer, several years has ordered a double beam overhead crane and single beam bridge crane

—— Sedanur BAYDAR

I'm Online Chat Now

10 Ton Electric Chain Pulley Hoist Lifting Widely Use

10 Ton Electric Chain Pulley Hoist Lifting Widely Use
10 Ton Electric Chain Pulley Hoist Lifting Widely Use
10 Ton Electric Chain Pulley Hoist Lifting Widely Use 10 Ton Electric Chain Pulley Hoist Lifting Widely Use 10 Ton Electric Chain Pulley Hoist Lifting Widely Use

Large Image :  10 Ton Electric Chain Pulley Hoist Lifting Widely Use

Product Details:
Place of Origin: China
Brand Name: DOWELL
Certification: CE ISO
Model Number: HBBD
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD 270-4200 /Set
Packaging Details: Packed by high quality wooden box
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 SET/ YEAR

10 Ton Electric Chain Pulley Hoist Lifting Widely Use

Description
Product Name: Chain Pulley Hoist Sling Type: Chain
Lift Speed: 1.1-7.2m/min Motor: Nanjing Special Motor
Power Supply: 380V 50Hz Or On Request Maximum Lifting Height: 30m
Type: Stationary Or Moveable Condition: New
Usage: Construction Hoist,Mining Hoist,Material Handling,portable Color: Customised
Warranty: 3 Years
High Light:

Electric Chain Pulley Hoist

,

Electric Chain Pulley Construction Hoist

,

10 Ton Electric Chain Hoist Lifting

Widely Use High Quality 10 ton Electric Chain Pulley Hoist Lifting



Widely Use High Quality 10 ton Electric Chain Pulley Hoist Lifting Description:



Electric chain hoist is a kind of light and small lifting equipment, which is widely used. Electric chain hoists are mainly used in major factories, warehouses, wind power generation, logistics, docks, construction and other industries for lifting or loading and unloading goods, and can also lift heavy objects to facilitate work or repair large machines. The electric chain hoist is operated by the operator on the ground with the button, and can also be operated in the control room or controlled by wired (wireless) remote control. It can not only be used for fixed suspension, but also can be used with electric monorail trolley and hand-pulled monorail trolley.



Widely Use High Quality 10 ton Electric Chain Pulley Hoist Lifting Drawing:



10 Ton Electric Chain Pulley Hoist Lifting Widely Use 0



Chain Pulley Hoist Specification Data:



Type
Capacity
Lifting
Height
Lifting
Speed
Lifting motor
power
Rotation Speed
Phases
Voltage
HBDD005-01
0.5
3/9
6.8
0.75
1440
3
380
HBDD01-02
1
3/9
3.4
0.75
1440
3
380
HBDD01-01
1
3/9
6.6
1.5
1440
3
380
HBDD02-01
2
3/9
6.6
3.0
1440
3
380
HBDD02-02
2
3/9
3.3
1.5
1440
3
380
HBDD03-01
3
3/9
5.4
3.0
1440
3
380
HBDD03-02
3
3/9
4.4
3.0
1440
3
380
HBDD03-03
3
3/9
2.2
1.5
1440
3
380
HBDD05-02
5
3/9
2.7
3.0
1440
3
380

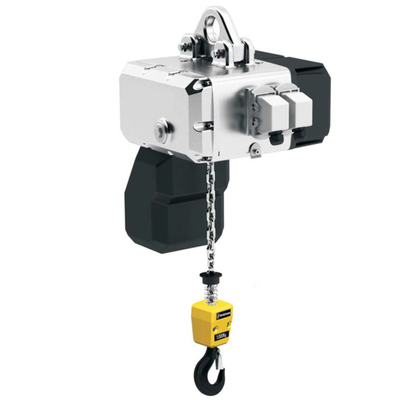

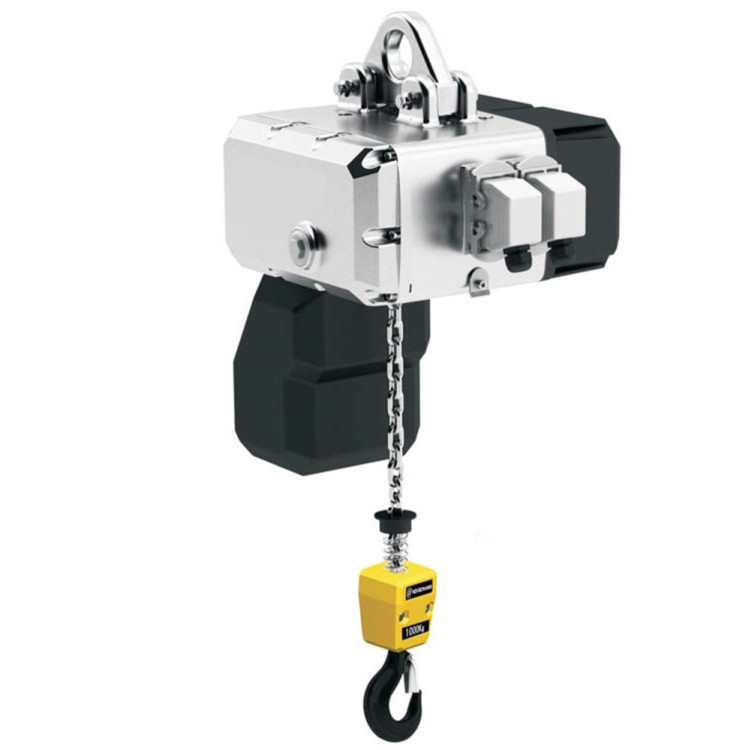

Chain Pulley Hoist Detailed Images:

1 Ton 2 Ton 3 Ton 5 Ton Electric Chain Hoist For Sale

  1. Chain bag: Light & beautifuDurable & Wear-resistance
  2. Hook: Thermally ForgedHigh Strength & Fracture Resistance 3600 Rotating
  3. Chain:FEC80 Superheat Treatment AlloyNo impacts in rain, sea water, chemical and other harsh environment
  4. Remote control: Waterproof & Light Weight & Durablility
  5. Shell: High heat dissipationFull sealing designDustproof & Light weight



Chain Pulley Hoist Features

  1. Advanced structure
  2. Small volume
  3. Light weight
  4. Reliable performance
  5. Easy to operate
  6. Wide range of applications



Packing and Delicery:



  • Hoist parts are packed by high quality plywood crate, to reduce distortion in conveying.
  • Transport ways are based on reducing costs & keep safety.



Warm Tips:



We need you confirm below information when send inquiry to us:
1.FOB or CIF price?(If CIF price,tell us your nearest sea port)
2.Quantity?(set)
3.Lifting capacity?(ton)
4.Lifting height?(m)
5.Working voltage?(V,HZ,Phase)
6.Working environment?
7.How many hours the hoist works one day?
8.Any other requirement do you need?
