Light Equipment Single Girder Overhead Crane Wireless Remote Control

Light Equipment Single Girder Overhead Crane Wireless Remote Control
Light Equipment Single Girder Overhead Crane Wireless Remote Control
Light Equipment Single Girder Overhead Crane Wireless Remote Control Light Equipment Single Girder Overhead Crane Wireless Remote Control Light Equipment Single Girder Overhead Crane Wireless Remote Control

Large Image :  Light Equipment Single Girder Overhead Crane Wireless Remote Control

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: SGS IOS CE
Model Number: LD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $1000-15000/set
Packaging Details: packed by plywood crate or plastic woven cloth
Delivery Time: 60days
Payment Terms: L/C, T/T,
Supply Ability: 1000 Sets per Month

Light Equipment Single Girder Overhead Crane Wireless Remote Control

Description
Product Name: Single Girder Overhead Crane Span: 10.5-31.5m
Condition: New Warranty: 2 Years
Max. Lifting Height: 30m Feature: Other
Application: Construction,Workshop,Factory Certification: ISO CE
High Light:

Wireless Remote Control LD Overhead Crane

,

Light Equipment Single Girder Overhead Crane

,

30m Single Girder Overhead Crane

Wireless Remote Control Light Equipment Single Girder Overhead Crane



Single Girder Overhead Crane Description



LD model single girder overhead crane is a kind of light duty crane, with the capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working duty is A3 A4. Working environment temperature is -20°C to 40°C.single girder overhead crane consists of main beam,end beam,electric hoist,festoon cable and electric control system,It is widely used in plants, warehouse, and material stocks to lift goods.
LD model single girderoverhead crane is matched with electric hoist which is CD model or MD model.It is prohibited to use the equipment in the combustible, explosive or corrosives environment.



Single Girder Overhead Crane Main Features

  1. Light structure, easy installation and maintenance
  2. Reasonable structure, strong bearing capacity
  3. Low noise, soft starting and stopping
  4. Safe and reliable operation
  5. Low cost maintenance, long working life



Advantages of Single Girder Overhead Crane

  1. Strong box type,U-shape groove of main beam is manufactured by one time forming machine,no weld,strong and nice looking.
  2. Rib plate is welded by robot group,high efficiency,high quality and strong bearing capacity,long service life
  3. End beam U shape groove is also bended by one time forming machine,welding is done by robot.
  4. Six action direction movement, to get enough working area.
  5. Motor protection class IP44,IP54,IP55
  6. Frequency inverter is optional for speed control.

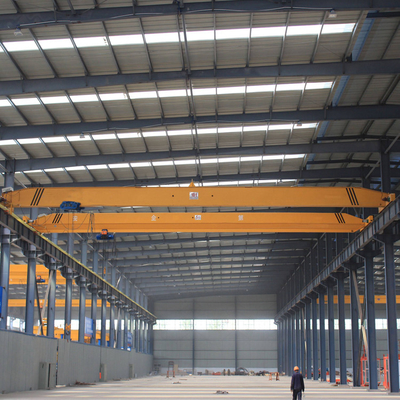

Part of Single Girder Overhead Crane

Light Equipment Single Girder Overhead Crane Wireless Remote Control 0



Single Girder Overhead Crane Parameters



Model LD type
Lifting capacity t 1 2 3 5 10 16 20
Span m 7.5-31.5 or other specified span
Lifting height m 6, 9, 12 or other specified height
Lifting speed m/min 8 (8/0.8) 7 (7/0.7) 3.5 (0.35/3.5) 3.3 (0.33/3.3)
Hoist traveling speed m/min 20
Crane traveling speed m/min 20(30)
Working class A3, A4, A5
Power 380V, 50Hz or other



Our Service

  • All the machines will be full tested before shipment
  • Technical supports and suggestions before you order a machine according to your work place.
  • Professional opertion instruction of the machine.
  • 24 months warranty period and we will provide the consumable parts at cost price after the warranty period.
  • 24-hour technical support by emails, calling or videos.
