Free Standing Jib Crane Concrete Foundation Electric Powered

Free Standing Jib Crane Concrete Foundation Electric Powered
Free Standing Jib Crane Concrete Foundation Electric Powered
Free Standing Jib Crane Concrete Foundation Electric Powered Free Standing Jib Crane Concrete Foundation Electric Powered Free Standing Jib Crane Concrete Foundation Electric Powered

Large Image :  Free Standing Jib Crane Concrete Foundation Electric Powered

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: SGS IOS CE
Model Number: BZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 1000~20000$/1 set
Packaging Details: Jib crane electrical and other parts packed by high quality plywood crate, Beams packed by plastic woven cloth.
Delivery Time: 20 work days
Payment Terms: L/C, T/T
Supply Ability: 20000 Sets per Year

Free Standing Jib Crane Concrete Foundation Electric Powered

Description
Product Name: Free Standing Jib Crane Slewing Degree: 0~360°
Control Mode: Pendent Wire Control Or Remote Control Application: Widely
Operating Environment: -25 ~40 Degree Working Duty: A3/A4
Color: Clients' Requirments Warranty: 3years
Condition: New Place Of Region: Henan, China
High Light:

Free Standing Jib Crane

,

Electric Powered Jib Crane

,

Concrete Foundation Jib Crane

Concrete Foundation Electric Powered Free Standing Jib Crane



Free Standing Jib Crane Description

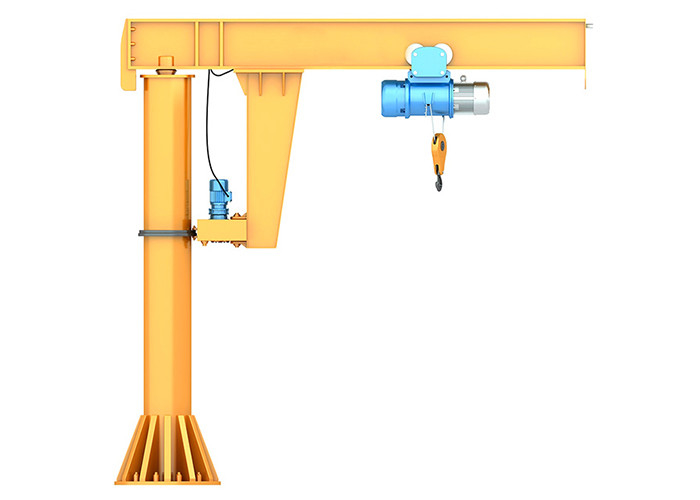

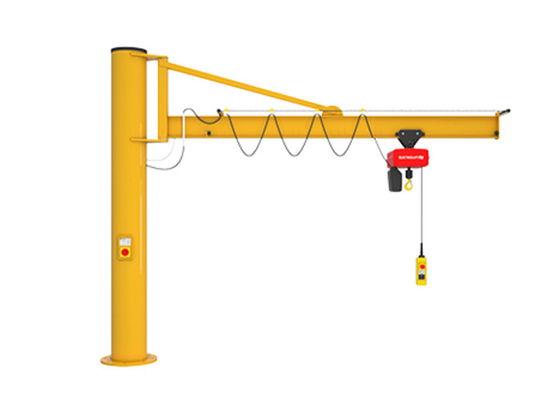

Free Standing Jib Crane is a crane which is used with PK type electric chain hoist or CD, MD type electric hoist. It consists of column, swing jib, electric hoist, drive device and electrical control system.

The bottom of column is fixed on the concrete foundation by the anchor bolts, driving device is driven by the motor to rotate swing jib, and the electric hoist reciprocates and runs on swing jib.

Free Standing Jib Crane has the advantages of simple structure, convenient operation, small occupation space and large working range. And was widely used in machinery manufacturing, automotive, shipbuilding and other modern industrial production lines, assembly lines and warehouses, docks, laboratories and other materials handling operations. It Is an ideal lifting equipment for improving work efficiency and working conditions for the enterprise.



Free Standing Jib Crane Electric System



1. Power supply through step less slide lines;
2. Lifting mechanisms and traveling mechanisms are mutually independent and could travel at the same time;
3. Control panel protection degree is IP54;
4. Reasonable components installation, convenient for check and maintenance;
5. Electric cable is suspended in cable saddle, stationary cable trolley which slides on a galvanized C-type steel.



Free Standing Jib Crane Parameters



Descriptions
Reference Data
Lift capacity
0.3 ton ~ 10 tons
Span
3 meters ~ 10 meters
Lift height
3-12 M
Work duty
A3
Control method
Remote control & Pendent control
Electrical parts
CHINT or International brand
Motor
Chinese famous brand or International brand
Lift speed
0~8M/Min
Cross travel speed
0-20M/Min
Slewing degree
180 degree(Be customized by your requirement)
Hook
Forged hook with safety lock



Free Standing Jib Crane Drawings

Free Standing Jib Crane Concrete Foundation Electric Powered 0

Free Standing Jib Crane Concrete Foundation Electric Powered 1

Free Standing Jib Crane Features



  • Standard span upto 20 feet
  • 360 degree rotation
  • Designed for permanent concrete foundation
  • Base plates assembly is secured by means of anchor bolts to a prescribed reinforced concrete foundation, with the number of anchor bolts varying with the capacity of the tadano crane.
  • The pipe or colomn is designed to give maximum strength and minimum
    deflection to resist bending, buckling and crushing
  • The top bearing assembly utilizes a tapered roller bearing provided with
    grease fitting for proper lubrication.



Package & Delivery





Free Standing Jib Crane Concrete Foundation Electric Powered 2



FAQ



1. Q: What’s your MOQ?

A: 1 Set;

2. Q: What’s your package?

A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What’s your delivery period?

A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: Do you provide lift tools?

A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

5. Q: Could your winches drag inclined?

A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
