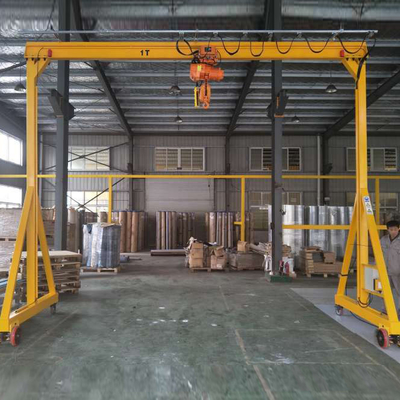

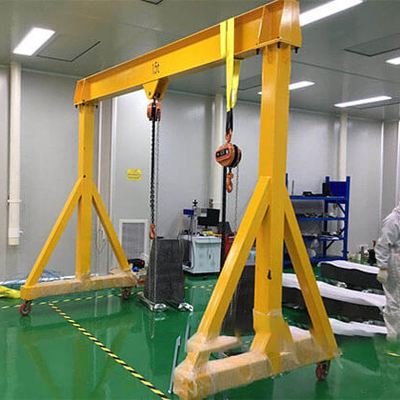

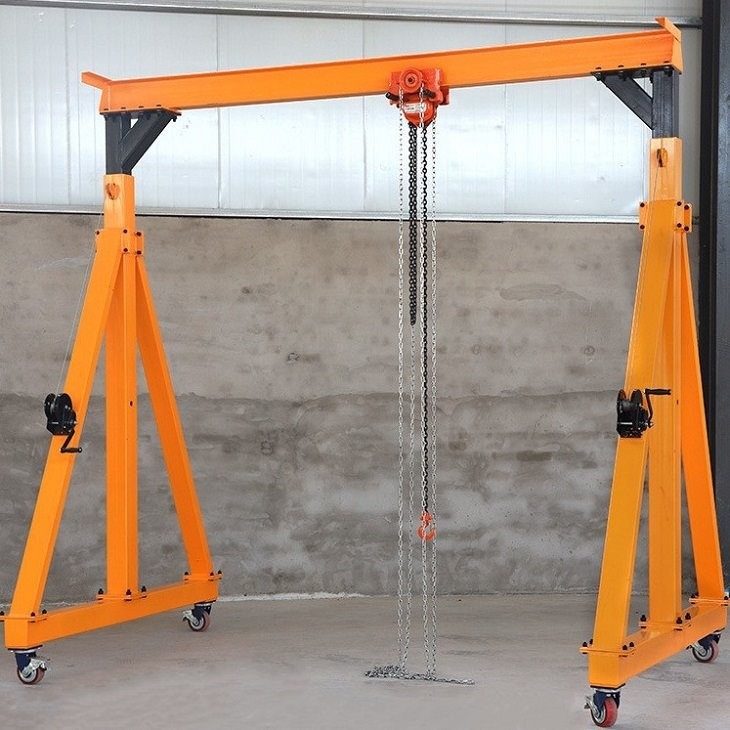

Light Duty 4 Wheels Gantry Crane Movable Aluminum Good Design

Light Duty 4 Wheels Gantry Crane Movable Aluminum Good Design
Light Duty 4 Wheels Gantry Crane Movable Aluminum Good Design Light Duty 4 Wheels Gantry Crane Movable Aluminum Good Design Light Duty 4 Wheels Gantry Crane Movable Aluminum Good Design

Large Image :  Light Duty 4 Wheels Gantry Crane Movable Aluminum Good Design

Product Details:
Place of Origin: China (Mainland)
Brand Name: Dowellcrane
Certification: ISO CE BV CCC GOST
Model Number: Portable Mobile Gantry Crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2000~30000/1 set
Packaging Details: Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Sets per Year
Contact Now

Light Duty 4 Wheels Gantry Crane Movable Aluminum Good Design

Description
Product Name: Aluminum Gantry Crane Working Duty: A3-A5
Control Method: Cabin Control/wire Rope Remote Control Certification: CE,ISO
Condition: New Warranty: 2 Years
Span: Customized Feature: Gantry Crane
Application: Outdoor,Warehouse,factory,workshop Lifting Mechanism: Manual Hoist Or Wire Rope Hoist
High Light:

4Wheels Movable Gantry Crane

,

Light Duty Movable Aluminum Gantry Crane

,

cabin control Movable Gantry Crane

Good Design Light Duty 4 Wheels Movable Aluminum Gantry Crane


Aluminum Gantry Crane Description

Mini gantry crane are designed for transporting and lifting materials. It is specially applied to yard and workshop equipment installation, transportation.
The small gantry hoisting belt brake on bearing universal wheel can move on the ground, with electric hoist or manual hoist, chain blocks or monorail car accessory, realize the mechanization of hoisting, can reduce manpower and production costs, improve work efficiency.
Portable crane is easy to move and disassemble, with 4 variable positioning wheels, two of which are locked with 90 degree angle direction.our light weight mobile crane is an idea auxiliary equipment for your warehouse.
Wear-resistant polyurethane wheels. Small rolling resistance, easy to move, safe and reliable Modularized design,beam and column bolted connection, easy installation.

Aluminum Gantry Crane Drawings

Light Duty 4 Wheels Gantry Crane Movable Aluminum Good Design 0



Aluminum Gantry Crane Parameter



Capacity
t
0.5
1
2
3
5
10
Span
S(m)
2~16
2~16
2~16
2~16
2~16
2~16
Lifting height
m
2~12
2~12
2~12
2~12
2~12
2~12
Lifting speed
m/min
7.2(7.2/2.4)
6.6(6.9/2.3)
6.6(6.9/2.3)
5.4(5.4/1.8)
2.7(2.7/0.9)
2.7(2.7/0.9)
Trolley speed
m/min
11(21)
11(21)
11(21)
11(21)
11(21)
11(21)
Crane speed
m/min
manually operation/motor-driven
manually operation/motor-driven
manually operation/motor-driven
manually operation/motor-driven
manually operation/motor-driven
manually operation/motor-driven
Work duty

A2
A2
A2
A2
A2
A2



Aluminum Gantry Crane Advantages:

  1. Light weight ,five times the safety factor
  2. Easy operation ,wireless controller available move under load ,smooth starting and stopping
  3. Every steel tube is detachable, disassembly and assembly are easy
  4. Easy operation Control by Pendent controller with push buttons or wireless controller ,control the gantry moved front and back , the  hoist travelling left and right , lift up and down.
  5. Portable design allows for relocation for use in more than one facility or work area



Package and Delivery



Light Duty 4 Wheels Gantry Crane Movable Aluminum Good Design 1


After-sales service

  • Long warranty period, maintenance-free for life.
  • Can provide free instruction and maintenance manual.
  • Can provide free engineer video guidance.
  • In case of special circumstances, after-sales service can be provided by dispatched engineers.


Our Advantages


  1. We serve every customer seriously. In order to better serve you, you will be equipped with a professional service team: sales manager + customer service + technical engineer to ensure that any questions you have can be answered accurately in time.
  2. After obtaining the accurate plant parameters, we will make 2-3 sets of plan packages of different models (including plan drawings, product drawings, detailed crane parameters, plan advantages and disadvantages, etc.) by professional engineers according to your needs.
  3. After receiving the order, we will arrange the production and the deployment of the purchased parts as soon as possible. The production process supports online inspection and tracking at any time.
